MIS-8706 All Aluminium Fanless Embedded Box IPC Board Mounted I7 3520M CPU Dual Network 6 Series 6 USB 1 PCI Extension
MIS-8706 All Aluminium Fanless Embedded Box IPC Board Mounted I7 3520M CPU Dual Network 6 Series 6 USB 1 PCI Extension
Specifications
Brand Name :
Yanyue
Model Number :
MIS-8706
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Embedded Industrial PC
Hard disk rack :
1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard :
Dedicated motherboard
CPU/GPU :
Intel 1037U
Memory :
4G DDR3
Hard disk :
128G MSATA
Description
MIS-8706 All-aluminium fan-free embedded IPC, board-mounted i7 3520M CPU, dual-network 6 Series 6 USB, 1 PCI extension

Features:

■ All-aluminium toothed fan-free design, fully sealed

■ Modular Wireless Material Design

■ On board i7 3520M CPU

■ Dual Network 6 Series 6USB,1 PCI extension

■ Support MSATA + 2.5 inch dual hard disk

■ Supporting VGA+HDMI Independent Double Display

Specification parameters Optional configuration
Chassis All-aluminium toothed chassis, sandblasted titanium oxide ash Other colours can be customized
Front Power switch; Power/HDD/LAN1/LAN 2 indicator; Mic in+Line out; PS/2; 2COM RS232; 5USB2.0
Back DC12-24V input; VGA+HDMI display; 1USB; 2RJ45 Gigabit Network port; 3RS232/422/485 + 1RS232/485 serial port; 1 PCI extension
Hard disk rack 1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard Dedicated motherboard
CPU/GPU Intel I7 3520M
Memory 4G DDR3 Optional 8G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size 246*209*114mm Net/Gross Weight 3.5/4KG
Industrial Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
　 　 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

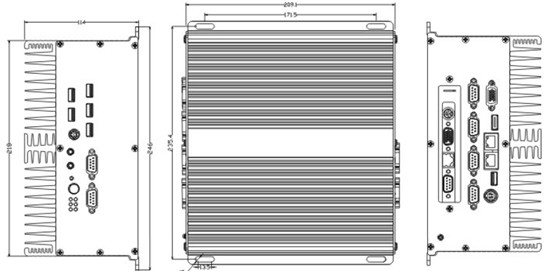

Installation Dimension Diagram 　MIS-8706 All Aluminium Fanless Embedded Box IPC Board Mounted I7 3520M CPU Dual Network 6 Series 6 USB 1 PCI Extension

MIS-8706 All Aluminium Fanless Embedded Box IPC Board Mounted I7 3520M CPU Dual Network 6 Series 6 USB 1 PCI ExtensionMIS-8706 All Aluminium Fanless Embedded Box IPC Board Mounted I7 3520M CPU Dual Network 6 Series 6 USB 1 PCI Extension
