Specifications
Brand Name :
Yanyue
Model Number :
MIS-ITX01C
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Embedded Industrial PC
Hard disk rack :
1 anti-seismic hard disk rack, supporting one 3.5 inch or two 2.5 inch hard disk
Adapt motherboard :
Intel B75/H81/H110 chip MINI-ITX motherboard
CPU/GPU :
Intel i3 2120
Memory :
4G DDR3
Hard disk :
128G MSATA
Description
MIS-ITX01C Embedded industrial computer, 1 PCI or PCIE extension, supporting i3/i5/i7 CPU, supporting multiple serial port

Features:

■ Heat Dissipation, Dust Prevention and Seismic Resistance

■ Support all Mini-ITX motherboards of Yanyue

■ Supporting a PCI or PCIEx16 extension

■ 9 additional antenna slots and 2 additional antenna slots can be introduced later.

■ Up to 12 serial ports and 14 USB

■ Dust-proof sponge can be replaced and cleaned without shutting down the machine

Specification parameters Optional configuration
Chassis All steel structure, powder-sprayed black Optional industrial grey and other colors
Front POWER/HDD Indicator Lamp, Power Button Switch,Two suction fans can replace and clean dust-proof sponge without shutting down Customizable customer LOGO or other requirements

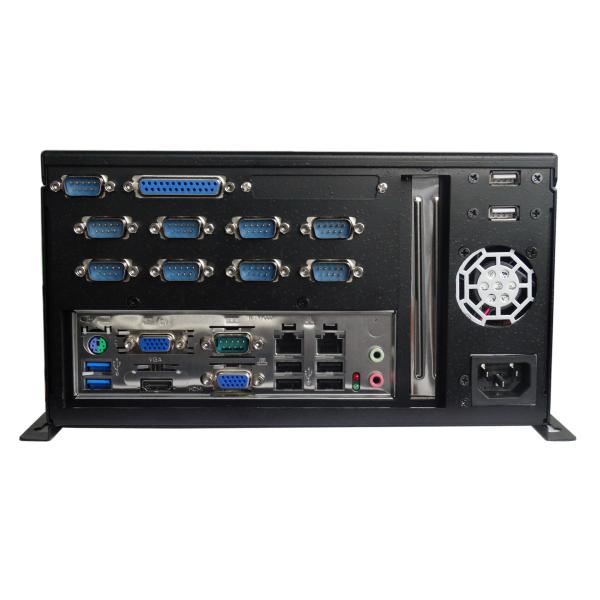

Back Main board large square hole, 1 expansion slot; 9 DB9, 1 DB25, 2 USB interface bits, 2 WIFI antenna slots, ,1 DB37 Customizable other interface bits
Hard disk rack 1 anti-seismic hard disk rack, supporting one 3.5 inch or two 2.5 inch hard disk 　
Adapt motherboard Intel B75/H81/H110 chip MINI-ITX motherboard Optional all ITX motherboard of Yanyue
CPU/GPU Intel i3 2120 Support 3, 4, 6, 7 generations desktop CPU or board CPU
Memory 4G DDR3 Optional 2G/8G/16G notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk
Interface AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio output; MIC input; 6COM (standard) Optional extraction of all interfaces on the chassis
Extension 1 PCI Extension Three, four, six and seven generations all support one PCIEx16 extension.
Size No bracket:241mm * 223mm * 130mm Net/Gross Weight 3.5/4KG
Industrial Power Supply 200W Industrial 1U Power Supply
Installation mode Bracket installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
　 　 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

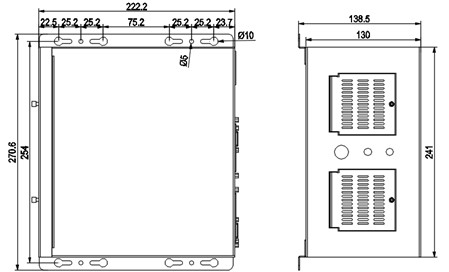

Installation Dimension Diagram 　Embedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial Ports

Embedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial PortsEmbedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial PortsEmbedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial PortsEmbedded Industrial PC 1 PCI Or PCIE Extension I3 I5 I7 CPU Multiple Serial Ports

Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.
