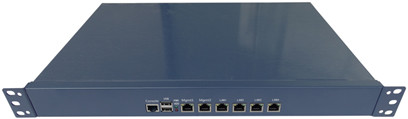

NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board
NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board
NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board
NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board
NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board
NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board
Specifications
Brand Name :
Yanyue
Model Number :
NSP-1766
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Network Firewall Hardware
Back :
1 Fan, AC input
CPU/GPU :
D525
Memory :
2G DDR3
Size :
482mm * 300mm * 45.2mm
Installation mode :
Rack installation
Description
NSP-1766 Network security platform, 1U 6LAN IPC, 6 Intel gigabit network ports, board pasted with low-power CPU

Features:

■ Heat dissipation, dust prevention and earthquake resistance

■ 6 Intel gigabit network ports

■ multiple low-power motherboards available

■ optional CPU such as D525 / 3855u / 3865u

■ Hardware scheme of software routing

Specification parameter Optional configuration
Chassis All steel structure, blue Optional OEM other colors
Front RJ45 serial port, 2usb, power / HDD indicator light, 6 RJ45 gigabit network ports Customer logo or other requirements can be customized
Back 1 Fan, AC input Other interfaces can be customized
Hard disk rack 1 2.5-inch hard disk rack
Adapter motherboard Multiple 6-port special boards with low power CPU motherboards available
CPU/GPU D525 3855U/3865U
Memory 2G DDR3 Optional 4G/8G/16G memory
Hard disk 32G MSATA ( Optional addition of 1T mechanical hard disk) Optional 64g/128G/256g msata SSD; support 2.5-inch mechanical hard disk
Extend AC input; 6 RJ45 network ports; RJ45 serial port; 2USB
Size 482mm * 300mm * 45.2mm Net/gross weight 3.5/4KG
Industrial power supply Built in industrial DC power supply
Installation mode Rack installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
　 　 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration
Ordering information
NSP-1766-D525 Board sticking D525 CPU
NSP-1766-3865U Board sticking 3865U CPU
Installation Dimension Diagram 　NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board

NSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports BoardNSP-1766 Internet Firewall Hardware 1U 6 LAN IPC 6 Intel Gigabit Network Ports Board
