TPC-1502T 15 Industrial Touch Panel Computer 1 PCI Extension Board Paste J1900 CPU
TPC-1502T 15 Industrial Touch Panel Computer 1 PCI Extension Board Paste J1900 CPU
TPC-1502T 15 Industrial Touch Panel Computer 1 PCI Extension Board Paste J1900 CPU
TPC-1502T 15 Industrial Touch Panel Computer 1 PCI Extension Board Paste J1900 CPU
TPC-1502T 15 Industrial Touch Panel Computer 1 PCI Extension Board Paste J1900 CPU
TPC-1502T 15 Industrial Touch Panel Computer 1 PCI Extension Board Paste J1900 CPU
Specifications
Brand Name :
Yanyue
Model Number :
TPC-1502T
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Industrial Touch Panel PC
Adapt motherboard :
Low-power ITX motherboard
Touch screen :
5-wire resistance screen
CPU/GPU :
Intel J1900
Memory :
4G DDR3
Hard disk :
64G MSATA
Description

TPC-1502T 15" Touch industrial tablet, 1 PCI extension, board paste J1900 CPU

Features:

■ Ultra-low power, Board sticker J1900 CPU

■ 1 PCI Horizontal Extension

■ Standardized Dual Network 6 Series 4 USB

■ Installation of VISA

■ Resistance Touch Screen

Specification parameters Optional configuration
Front panel 1.2mm steel plate, black Optional silver or other colours
Back chassis 1.2mm steel plate, black Optional silver or other colours
Adapt motherboard Low power ITX motherboard Optional all low power ITX motherboards of Yanyue
LCD screen 15"TFT, LED backlight; Resolution 1024*768; Lattice: 0.297*0.297; Maximum color: 16.7M; Brightness: 350cd/; Contrast: 800:1; Response speed: 16ms; MTBF: 50,000h Visual angle: (+80 -80)(+80 -80);
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel J1900
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 64G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface DC12V; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; 6COM; 1 PCI extension bit Customizable air plug or Phoenix terminal power input
Size 356mm(length)* 274mm(width)* 101mm(thickness) Weight 4/5KG
Industrial Power Supply 12V@5A industrial adapter
Installation mode VISA wall mounting installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP62 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

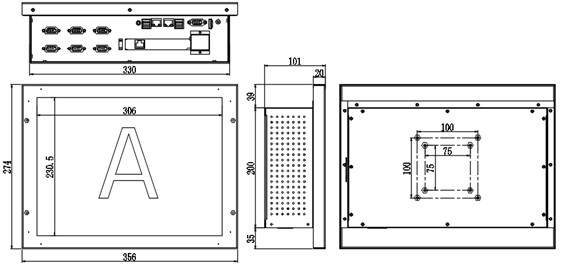

Installation Dimension Diagram 　TPC-1502T 15

TPC-1502T 15TPC-1502T 15
