MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
Specifications
Brand Name :
Yanyue
Model Number :
MIS-EPIC06-4L
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Embedded Industrial PC
Hard disk rack :
1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard :
Special board sticks the motherboard of 6th and 7th generation CPU
CPU/GPU :
Intel i5 6200U
Memory :
8G DDR4
Hard disk :
128G MSATA
Description
MIS-EPIC06-4L All-aluminium fan-free embedded IPC, board-pasted 6-generation i3/i5/i7 U series CPU, 4-network 6-series 6USB

Features:

■ All-aluminium toothed fan-free design, fully sealed

■ Supporting 6 Generation I3/I5/I7 U Series CPUs

■ Four Intel Gigabit Port, 6 Series 6USB

■ Support MSATA + 2.5 inch dual hard disk

■ Supporting VGA+HDMI Independent Double Display

■ Flexible configuration

Specification parameters Optional configuration
Chassis All-aluminium toothed chassis, sandblasting oxidation black Other colours can be customized

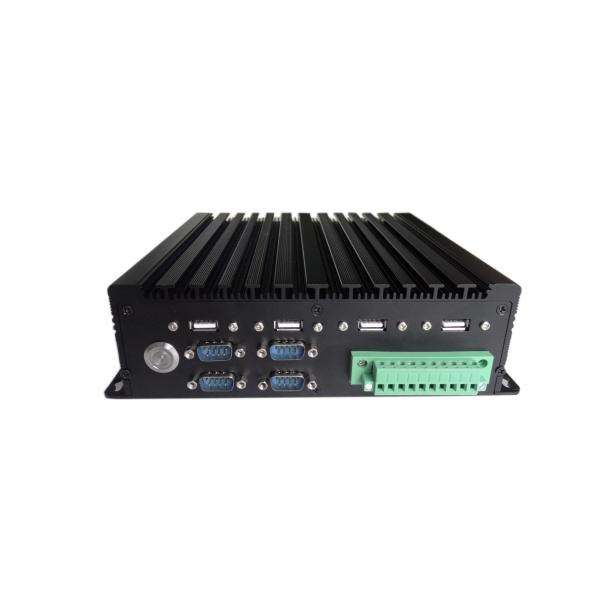

Front Switch with power indicator; 4COM; 4USB2.0, GPIO Customizable LOGO or more serial or parallel ports

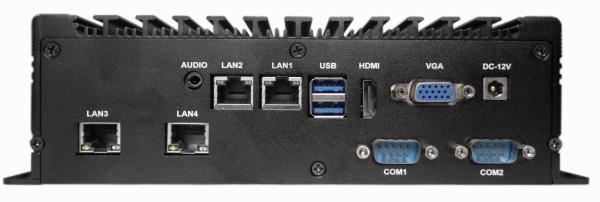

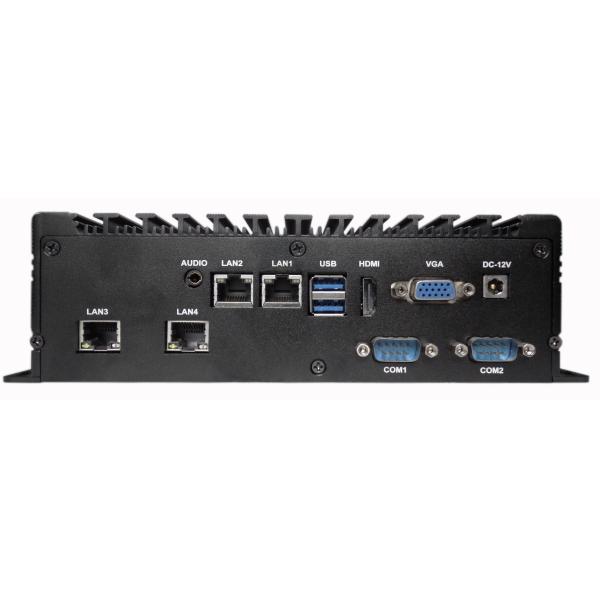

Back DC 12V; VGA + HDMI display; 2USB3.0; 2RJ45 Gigabit Network Port Line out; 2COM; 4USB Two antenna apertures can be customized for 4G or WIFI
Hard disk rack 1 hard disk rack, supporting 1 2.5 inch hard disk
Adapt motherboard Special board sticks the motherboard of 6th and 7th generation CPU
CPU/GPU Intel i5 6200U Optional board paste I3 6100U or i7 6500U
Memory 8G DDR4 Optional 8G/16G DDR4 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size 226*200*64.5mm Net/Gross Weight 2.5/3KG
Industrial Power Supply Standardized 12V@5A adapter
Installation mode Bracket installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
　 　 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

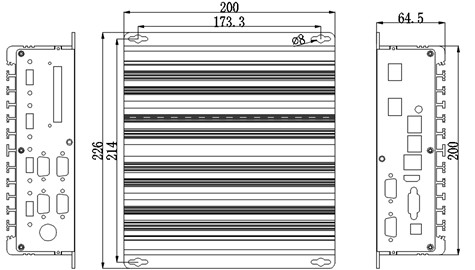

Installation Dimension Diagram 　MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB

MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB

MIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USBMIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USBMIS-EPIC06-4L Fanless Box PC / IPC Industrial Computer U Series CPU 4 Network 6 Series 6USB
