IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
IPPC-1503T 15 Industrial Touch PC I3 I5 I7 U Series CPU Motherboard for Selection
Specifications
Brand Name :
Yanyue
Model Number :
IPPC-1503T
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Industrial Touch Panel PC
Adapt motherboard :
low power ITX motherboards
Touch screen :
5-wire resistance screen
CPU/GPU :
Intel i5 3317U
Memory :
4G DDR3
Hard disk :
128G MSATA
Description

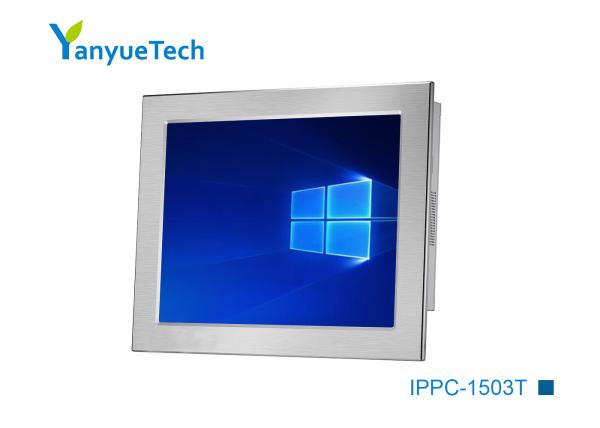

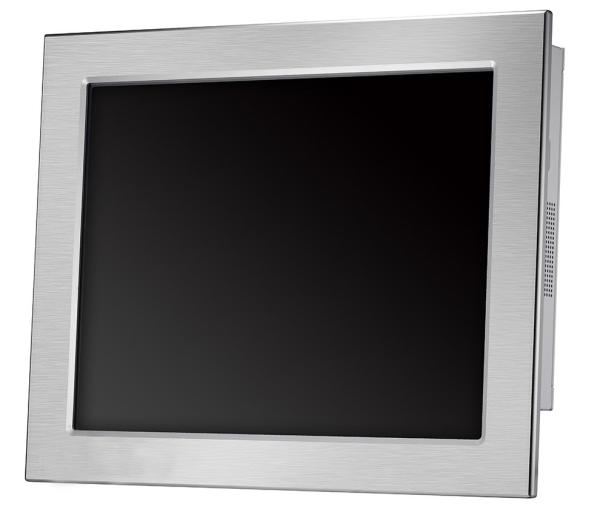

IPPC-1503T 15" Touch Industrial Panel PC with I3/I5/I7 U Series CPU Motherboard for Selection

Features:

■ Ultra-low power, thin design

■ Aluminum alloy wire drawing panel

■ Waterproof grade of IP65 panel

■ Multiple CPU motherboards of I3/I5/I7 U series for selection

■ Standardized dual network 4 series 4 USB, other interfaces OEM

■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk

■ Multiple installation options

■ Resistance Touch Screen, OEM Capacitance Screen

Specification parameters Optional configuration
Front panel Aluminum alloy panel, the nature of wire drawing oxidation Optional black or other colors, optional sandblasting treatment
Back chassis 1.2mm steel plate, silver, Optional industrial black or other colours
Adapt motherboard low power ITX motherboards All low power ITX motherboards of Yanyue are optional
LCD screen 15"TFT, LED backlight; Resolution 1024*768; Lattice: 0.297*0.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 1500:1; Response speed: 35ms; MTBF: 50,000h visual angle: (+85 -85) (+85 -85);
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel i5 3317U Optional J1900/3, 4, 6, 7 U Series CPUs
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5" 500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk

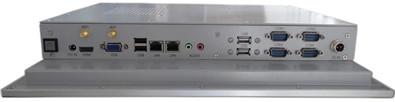

Interface DC12V; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 2 antenna aperture; 4COM; DC interpolation Optional 8USB or 6COM or 1LPT; plug-in location can be customized Phoenix terminal, can customize wide-voltage input
Size 380mm (length)* 300mm (width)* 56mm (thickness) Weight 5/6KG
Industrial Power Supply 12V@5A adapter, Taiwan Qiaowei Brand Optional non-configuration
Installation mode Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

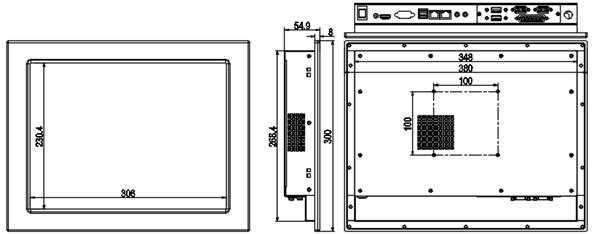

Installation Dimension Diagram 　IPPC-1503T 15

IPPC-1503T 15IPPC-1503T 15
