IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
IPPC-1705T 17 Industrial Touch Panel PC / Rugged Touch Screen PC 4G DDR3
Specifications
Brand Name :
Yanyue
Model Number :
IPPC-1705T
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Industrial Touch Panel PC
Adapt motherboard :
low power ITX motherboards
Touch screen :
5-wire resistance screen
CPU/GPU :
Intel i5 3317U
Memory :
4G DDR3
Hard disk :
128G MSATA
Description
IPPC-1705T 17" Touch Industrial Panel PC with I3/I5/I7 U Series CPU Motherboard for Selection

Features:

■ Ultra-low power,thin design

■ Narrow Aluminum Alloy Wire Drawing Panel;

■ Waterproof grade of IP64 panel

■ Multiple CPU motherboards of I3/I5/I7 U series for selection

■ Standardized dual network 6 series 4 USB, other interfaces OEM

■ Supporting simultaneous installation of mSATA solid state hard disk and 2.5 inch mechanical/solid state hard disk

■ Resistance Touch Screen, OEM Capacitance Screen

Specification parameters Optional configuration
Front panel Aluminum alloy panel, black oxide by wire drawing Optional natural color or other color, optional sandblasting treatment
Back chassis 1.2mm steel plate, black Optional silver or other colors
Adapt motherboard low power ITX motherboards All low power ITX motherboards of Yanyue are optional
LCD screen 17"TFT, LED backlight; Resolution 1280*1024; Lattice: 0.297*0.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 800:1; Response speed: 16ms; MTBF: 50,000h Visual angle: (+80 -80) (+80 -45);
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel i5 3317U Optional J1900/3, 4, 6, 7 U Series CPUs
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 2 antenna aperture; 6COM; DC interpolation (12V) Customize 8USB or 1LPT, RS485 for serial port, Phoenix terminal for interpolation position and wide voltage input.
Size 384mm (length)* 317mm (width)* 52mm (thickness) Weight 5/6KG
Industrial Power Supply 12V@5A adapter, Taiwan Qiaowei Brand Optional non-configuration
Installation mode VISA wall mounting installation
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP64 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

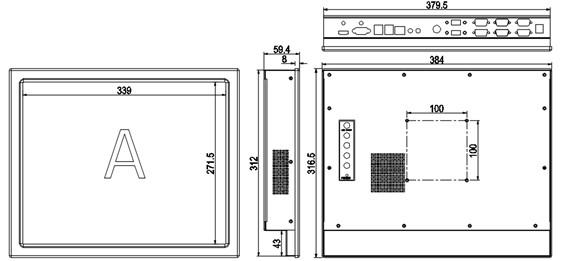

Installation Dimension Diagram 　IPPC-1705T 17

IPPC-1705T 17IPPC-1705T 17
