Specifications
Brand Name :
Yanyue
Model Number :
IPPC-1901T1-R
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Industrial Touch Panel PC
Adapt motherboard :
MINI-ITX motherboard of extrapolated desktop CPU
Touch screen :
5-wire resistance screen
CPU/GPU :
Intel i3 2120
Memory :
4G DDR3
Hard disk :
128G MSATA
Description
IPPC-1901T1-R 19" touch industrial Panel PC, 1 PCI or PCIE extension (2 slots), supporting i3/i5/i7 desktop CPU

Features:

■ Aluminum alloy wire drawing panel; IP65 waterproof grade of panel

■ Front OSD menu (one switch button for the whole machine)

■ Supporting High Performance Desktop I3/I5/I7 Series CPUs

■ A PCI or PCIE extension

■ Standardized Dual Network 3 Series 6 USB

■ Standard 19 inch mounting

■ Resistance Touch Screen, OEM Capacitance Screen

Specification parameters Optional configuration
Front panel Aluminum alloy panel, black oxide by wire drawing Optional natural color or other color, optional sandblasting treatment
Back chassis 1.2mm steel plate, black Optional silver or other colors
Adapt motherboard MINI-ITX motherboard of extrapolated desktop CPU MINIITX motherboard of H61/B75/H81/H110/H310 chip
LCD screen 19"TFT, LED backlight; Resolution 1280*1024; Lattice: 0.297*0.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 1500:1; Response speed: 35ms; MTBF: 50,000h Visual angle: (+85 -85) (+85 -85);
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel i3 2120 Supporting 3, 4, 6 and 7 generations of desktop CPUs
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 2VGA; HDMI, audio output; MIC input; 3COM; Customizable 8USB or 10COM or 1LPT
Extension 1 PCI extension Four, six and seven generations support one PCIEx16 extension
Size 483 mm (length)* 390 mm (width)* 98 mm (thickness) Weight 7/8KG
Industrial Power Supply 250W Industrial 1U Power Supply 　
Installation mode Standard 19 inch mounting
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

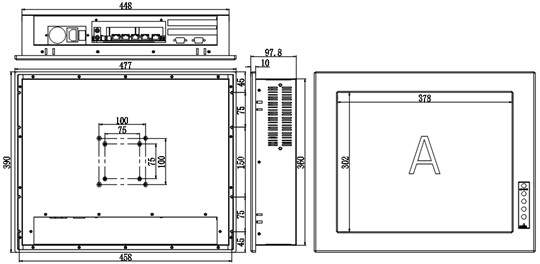

Installation Dimension Diagram 　IPPC-1901T1-R 19

IPPC-1901T1-R 19IPPC-1901T1-R 19
