IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
IPPC-1901T2-R 19 Upper Shelf Industrial Touch Screen Computer Multiple Board Paste I3 I5 I7 U Series CPU Motherboard
Specifications
Brand Name :
Yanyue
Model Number :
IPPC-1901T2-R
Certification :
CE, FCC
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
Delivery Time :
According to Quantity
Packaging Details :
Wooden Box
Name :
Industrial Touch Panel PC
Adapt motherboard :
Board paste MINI-ITX motherboard for low power U-series CPUs
Touch screen :
5-wire resistance screen
CPU/GPU :
Intel i5 3317U
Memory :
4G DDR3
Hard disk :
128G MSATA
Description

IPPC-1901T2-R 19" upper-shelf touch industrial Panel PC, multiple board paste I3/I5/I7 U series CPU motherboard for choice

Features:

■ Aluminum alloy wire drawing panel; IP65 waterproof grade of panel

■ Low Power U Series I3/I5/I7 CPUs

■ 10 DB9 serial ports, which can easily lead out multiple serial ports.

■ One slot can be used to extract serial port or parallel port or USB

■ Standardized Dual Network 6 Series 4 USB

■ Standard 19 inch mounting

■ Resistance Touch Screen, OEM Capacitance Screen


Specification parameters Optional configuration
Front panel Aluminum alloy panel, black oxide by wire drawing Optional natural color or other color, optional sandblasting treatment
Back chassis 1.2mm steel plate, black Optional silver or other colors
Adapt motherboard Board paste MINI-ITX motherboard for low power U-series CPUs Board paste J1900 and I3/I5/I7 U series CPU motherboard
LCD screen 19"TFT, LED backlight; Resolution 1280*1024; Lattice: 0.297*0.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 1500:1; Response speed: 35ms; MTBF: 50,000h Visual angle: (+85 -85) (+85 -85);
Touch screen 5-wire resistance screen Customizable Capacitance Screen
CPU/GPU Intel i5 3317U J1900 and I3/I5/I7 U CPUs of Generation 3, 4, 6 and 7
Memory 4G DDR3 Optional 2G/8G/16G DDR3 notebook memory
Hard disk 128G MSATA Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface DC input; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 6COM; 1 slot; 10DB9 Customize 6USB or 10COM or 1LPT, customize plug-in or Phoenix terminal DC input, and customize wide-voltage input.
Extension One slot is used to draw more serial ports, parallel ports or USB ports. 　
Size 483 mm (length)* 399 mm (width)* 98 mm (thickness) Weight 7/8KG
Industrial Power Supply 250W Industrial 1U Power Supply
Installation mode Standard 19 inch mounting
Work and Environment
Working temperature 0～60℃ Storage temperature -40～75℃ Environmental humidity 0~90% air humidity, no condensation
IP Level Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

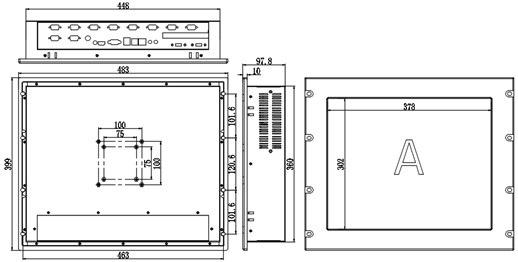

Installation Dimension Diagram 　IPPC-1901T2-R 19

IPPC-1901T2-R 19IPPC-1901T2-R 19
