ITX-J1800DL288 8 RS232 Mini ITX Motherboard / Intel Mini Itx Board Soldered On board Intel J1800 CPU
ITX-J1800DL288 8 RS232 Mini ITX Motherboard / Intel Mini Itx Board Soldered On board Intel J1800 CPU
ITX-J1800DL288 8 RS232 Mini ITX Motherboard / Intel Mini Itx Board Soldered On board Intel J1800 CPU
ITX-J1800DL288 8 RS232 Mini ITX Motherboard / Intel Mini Itx Board Soldered On board Intel J1800 CPU
Specifications
Model Number :
ITX-J1800DL288
Place of Origin :
Guangdong, China
Brand Name :
Yanyue
Certification :
CE, FCC
MOQ :
Negotiation
Price :
Negotiation
Delivery Time :
According to Quantity
Payment Terms :
T/T
Packaging Details :
Wooden Box
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
CPU/GPU :
Soldered Onboard Intel® J1800 CPU
Memory :
1 x DDR3 SO-DIMM sockets, supporting up to 8GB SDRAM
Storage :
2×SATA ，1×M-SATA
Audio :
Realtek ALC662, supports 5.1 channels
USB2.0 :
8
GPIO :
8bit(4 bit In, 4 bit Out)
COM :
8 RS232 serial
Expand :
1 MINI PCIE, 1 PCI Slot
Description

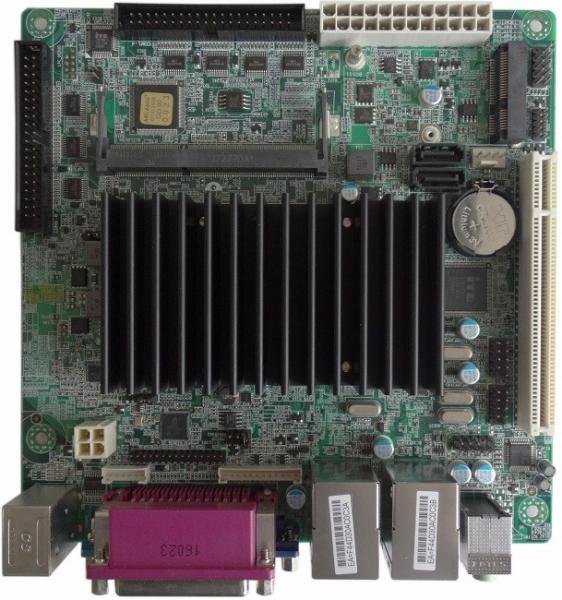

ITX-J1800DL288​ Mini ITX Motherboard, Soldered Onboard Intel® J1800 CPU, 8COM

Feature

■ Soldered Onboard Intel®J1800 CPU

■ 2 Gigabit LAN

■ VGA, LVDS Graphics Interface

■ 8COM, 8USB2.0

■ 8 bit GPIO

■ 1 PCI Slot

Specification

CPU/GPU Soldered Onboard Intel® J1800 CPU
Memory 1 x DDR3 SO-DIMM sockets, supporting up to 8GB SDRAM
Storage 2×SATA ,1×M-SATA
Audio Realtek ALC662, supports 5.1 channels
Ethernet 2 Gigabit LAN
Display CPU integrated graphics
Graphics Interface 1×VGA, 1× LVDS
USB2.0 8
GPIO 8bit(4 bit In, 4 bit Out)
COM 8 RS232 serial

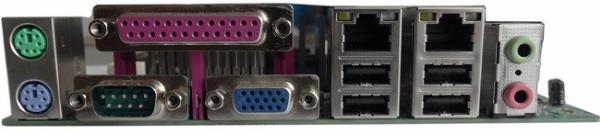

Backplane I / O PS/2 KB/MS, COM+VGA+PRINT, 2 RJ45 LAN+4 USB2.0, Line-out+Mic-in
Board I / O Pin

4USB , 7COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO

Front panel , Speaker, LVDS, invert, 24P+4P ATX
Expand 1 MINI PCIE, 1 PCI Slot
System Support Windows(WIN 7, WIN 10...), Linux
Mechanical & Environmental
Power supply ATX Heat dissipation Cooling fin Size(L×W) 170mm×170mm
Working temperature -15~55℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity,no condensation
Packing list ITX-J1800AH288 motherboard ×1, SATA Data wire ×1, Interface Board ×1, 4COM wire ×2
