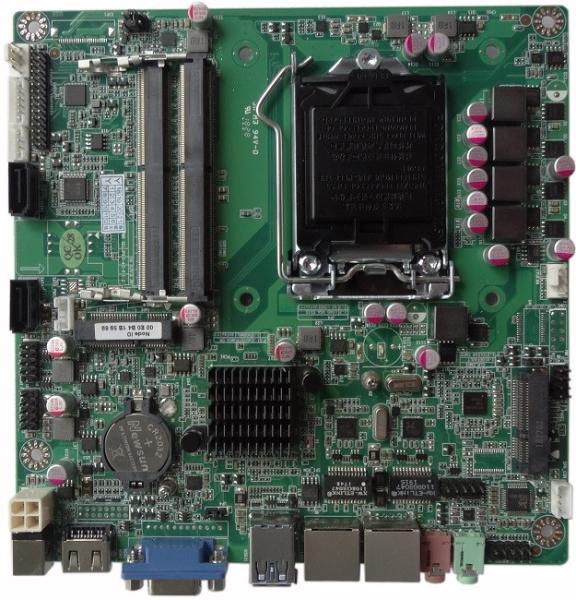

ITX-H310DL208​ Thin Mini Itx Support 8th Gen Inte CPU Realtek ALC662 5.1 Channels
ITX-H310DL208​ Thin Mini Itx Support 8th Gen Inte CPU Realtek ALC662 5.1 Channels
ITX-H310DL208​ Thin Mini Itx Support 8th Gen Inte CPU Realtek ALC662 5.1 Channels
ITX-H310DL208​ Thin Mini Itx Support 8th Gen Inte CPU Realtek ALC662 5.1 Channels
Specifications
Model Number :
ITX-H310DL208
Place of Origin :
Guangdong, China
Brand Name :
Yanyue
Certification :
CE, FCC
MOQ :
Negotiation
Price :
Negotiation
Delivery Time :
According to Quantity
Payment Terms :
T/T
Packaging Details :
Wooden Box
Supply Ability :
motherboard 100000 pieces / month ; IPC 5000 sets / month
CPU/GPU :
8th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron® (Socket LGA1151)
Chipset :
Intel@ PCH H310
Memory :
2 x DDR4 SO-DIMM sockets, supporting up to 32GB SDRAM
Storage :
1×SATA ，1×M-SATA
Audio :
Realtek ALC662, supports 5.1 channels
USB2.0 :
6
USB3.0 :
2
COM :
No, 1RS232 optional
Description

ITX-H310DL208​ Mini ITX Motherboard, Intel@ PCH H310 Chip, Support 8th Gen. Intel® CPU

Feature

■ Support LGA1151 socket for 8th Gen. Intel® CoreProcessor

■ Support discrete graphics

■ VGA, HDMI, LVDS Graphics Interface

■ 2LAN, 6USB2.0, 2USB3.0

■ Ultra Low Profile

Specification

CPU/GPU

8th Generation Intel® Core™ Processor i7/ i5/ i3, Pentium®/ Celeron®

(Socket LGA1151)
Chipset Intel@ PCH H310
Memory 2 x DDR4 SO-DIMM sockets, supporting up to 32GB SDRAM
Storage 1×SATA ,1×M-SATA
Audio Realtek ALC662, supports 5.1 channels
Ethernet 2 Gigabit LAN
Display CPU integrated graphics
Graphics Interface VGA, 1×HDMI, LVDS
USB2.0 6
USB3.0 2
COM No, 1RS232 optional
Backplane I / O DC in, HDMI, VGA, 2USB3.0, 2 RJ45 LAN, Line-out+Mic-in
Board I / O Pin 6USB2.0 , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Speaker, 4P DC In, JHDMI(optional), JVGA(optional), COM(optional)
Expand 1 MINI PCIE
System Support Windows(WIN 7, WIN 10...), Linux
Mechanical & Environmental
Power supply DC12~19V Heat dissipation Fan Size(L×W) 170mm×170mm
Working temperature -15~55℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity,no condensation
Packing list ITX-H310DL208 motherboard ×1, Sata Data wire ×1, Sata Power wire×1
Order Information
ITX-H310DL208 2LAN
ITX-H310DL108 1LAN
