18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk
Specifications
Brand Name :
INNODAPC
Model Number :
IND190M
Certification :
CE,RoHS, FCC
Place of Origin :
Shenzhen,China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability :
8000 pieces per month
Delivery Time :
7working days upon receive the payment
Packaging Details :
1pc/carton weight: 4.5kgs/pc, packing size: 50×14×44cm
Type :
19inch PCAP Touch Monitor
Brightness :
250nits
Resolution :
1280*1024
Touch :
Com port for touch use
Wide voltage :
24V voltage
Mounting type :
Embedded / VESA
Warranty :
12 months
Material :
Aluminum+Metal
Description

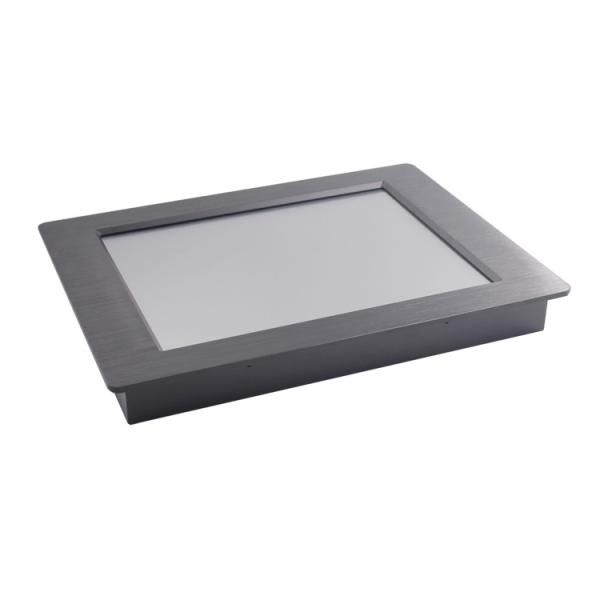

19inch XGA panel mount industrial monitor with resistive touchscreen. COM port as the touch port, it also can be choose to USB port for touch. 3mm Thin front bezel for embedded mount, which can widely use to cabinet, kiosk, HMI...etc It adapt 1000nits brightness which can be used in sunlight. If you also want waterproof, tell us. We can provide to you.

Features

- 19″ 1280*1024 resolution Industrial Grade lcd panel


- PCAP touchscreen, COM port for touch use


- 1000 Nits of Brightness which can work in sunlight


- VGA,DVI-I, HDMI inputs

- Embeded industrial panel mount monitor

- 24V wide voltage built-in

Application

Industrial plant


Oil, Gas and Chemicals Industrial


Animal Feed Production Facility


CNC Control Panel


Rugged Environment Application


Food & Beverage Processing Instrument

Configurations

LCD Panel Characteristics Screen Size 19-inch Industrial LCD Panel
Touchscreen Type Capacitive touch / Resistive touch screen / IR touchscreen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec

I/O Interface

 COM 1x COM for touch use
HDMI Yes
VGA yes
DVI Yes
Function 24V wide voltage
Mounting type VESA 75/100mm
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Detailed Image

18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk18W 1280x1024 Rugged Panel Mount Pc 3mm PCAP Tempered For Kiosk

Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
