None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
Specifications
Brand Name :
INNODAPC
Model Number :
IND123M
Certification :
CE,RoHS, FCC
Place of Origin :
Shenzhen,China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability :
8000 pieces per month
Delivery Time :
7working days upon receive the payment
Packaging Details :
1pc/carton weight: 7kgs/pc, packing size: 107x18.5x23.5cm
Type :
Industrial Monitor
Resolution :
1024*256
Touchscreen :
None touch
Brightness :
500nits
Wide Voltage :
-9-36V DC
Screen :
3* 12.3inch screen
System :
Support Widnows/Android/ Linux
Material :
Metal case
Description

Features

1. 12.3inch narrow size screen with 1024x256 resolution

2. None touch with 2mm tempered glass

3. 3 pcs 12.3inch panel

4. 3* 24V wide working voltage
5. VGA, HDMI, DVI

Full Sepcification

LCD Panel Characteristics Screen Size 12.3’’ LED Panel
Touchscreen Type None Touch screen
Resolution 1024(H)x256(V)
Aspect Ratio 16:9
Brightness 500cd/m2
Contrast Ratio 500:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec


I/O Interface

 USB ---
HDMI yes
VGA Yes
DVI Yes
Optional Function Full IP65 wateproof
1000cd/m2 dalight readable
Power button built-in
Mounting type VESA hole 75*75/100*100mm / Embedded
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

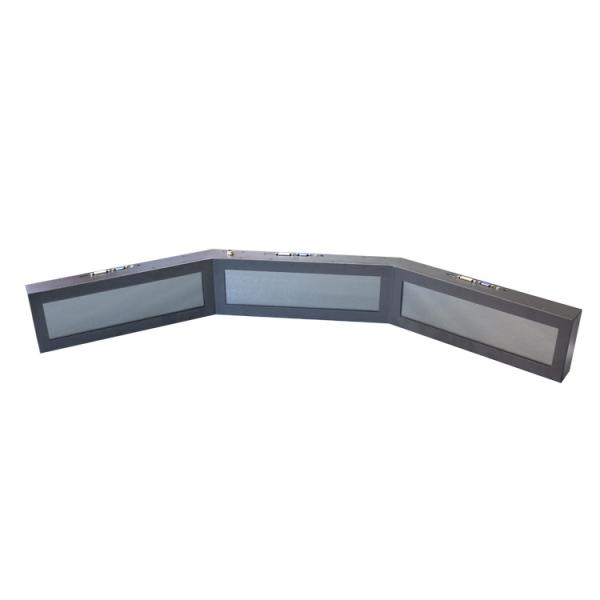

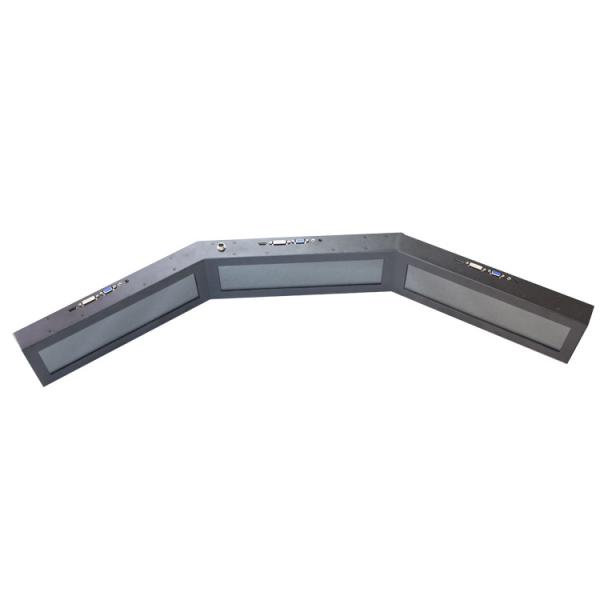

Detailed Image
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCCNone Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC


Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.
which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
None Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCCNone Touch 500nits 12.3inch Narrow Panel Industrial Monitor FCC
