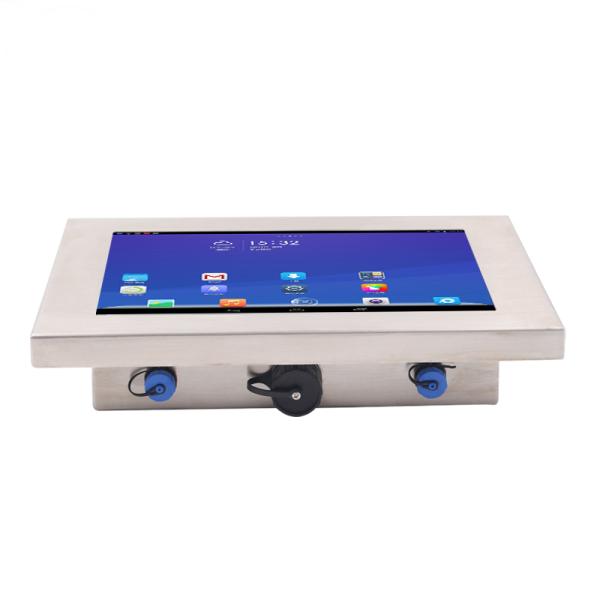

8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768
Specifications
Brand Name :
INNODAPC
Model Number :
IND080M
Certification :
CE,RoHS, FCC
Place of Origin :
Shenzhen,China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability :
8000 pieces per month
Delivery Time :
7working days upon receive the payment
Packaging Details :
1pc/carton weight: 5kgs/pc, packing size: 31×11×31cm
Type :
8inch Waterproof LCD Monitor
Touchscreen :
Resistive touch screen
Brightness :
1000cd/m2
Resolution :
1024*768
I/O :
1xDC jack, 1x HDMI, 1*USB for touch use
IP rate :
Fully sealed IP65
Power :
12V DC
Material :
1.5mm Stainless Steel
Description

Touch monitor is an ideal replacement for less capable HMI control screens. The fully sealed high strength rolled steel housing makes it an ideal plug-and-play solution for High pressure humid environment. Featuring a fully fanless and IP67 rated waterproof design, you can confidently place this waterproof monitor into even the most demanding workplace environment. The monitor includes on-screen display (OSD) controls on the back of the unit for quick adjustment of your display settings.

Features

1. 8" Flush LCD Touchscreen with resolution 1024*768 LED backlight.


2. Fully Enclosed Fanless Design is IP67 waterproof and dustproof.


3. Signal ports is HDMI input.

4. Touchscreen is resisitive touch.

LCD Panel Characteristics Screen Size 8’’ LED Panel
Touchscreen Type Resistive touch screen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 1000cd/m2
Contrast Ratio 800:1
View Angle 80x80(H),70x70(V)
Response Time 15 msec

I/O Interface

 USB 1xUSB for touch use
HDMI 1XHDMI
DC jack 1x 12V DC jack
Function FUll IP67
Power button--On/Off
1000nits brightness for sunlight readable
Mounting type VESA
Optional 8-36V wide range voltage High brightness
Bracket Mount
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 1x8A Power Adapter with cable
Other Information Material Metal(Aluminum/stainless steel for choose)
Color Black/Silver/White
VESA Mounting 75*75/100*100mm Vesa hole/Embedded
Operation Environment Operating Temperature 0~60° C/-20-70C(optional)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis


Detailed Image

8in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*7688in 1000nits 1.5mm Steel Waterproof Touch Monitor 4 Wire 1024*768

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience. Waterproof Monitor which have excellent work performane.It offers rich of interface to meet csutomers needs. Fully sealed IP65/67/68 waterproof which is widly used for kitchen,food industry, boat...etc

ODM / OEM acceptable

Welcome to ask for more information!
