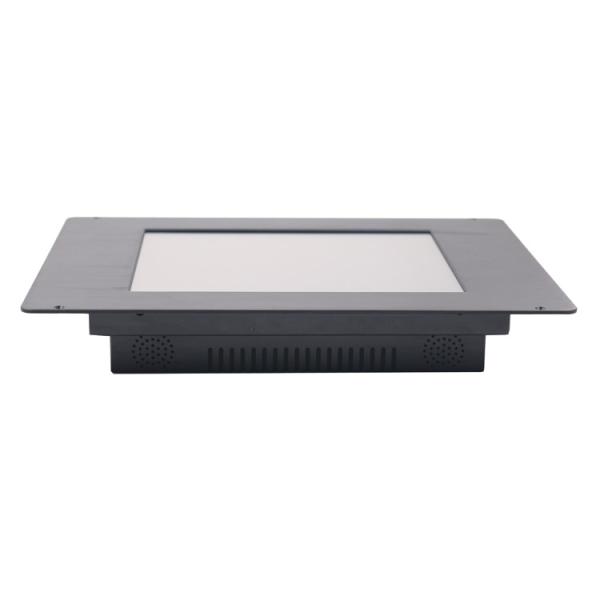

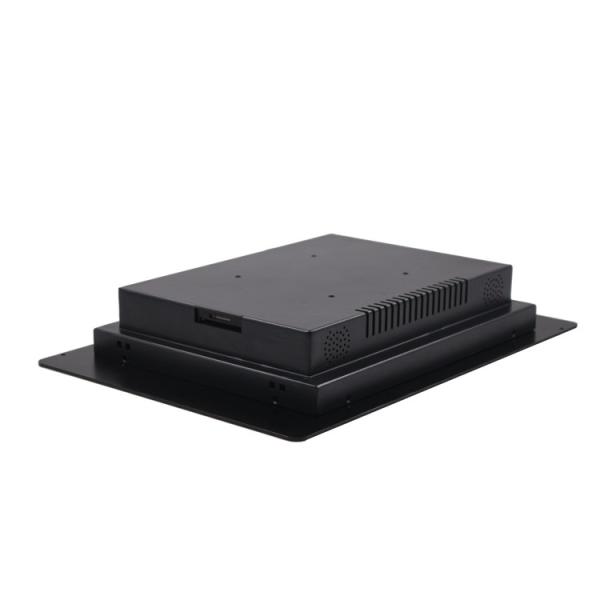

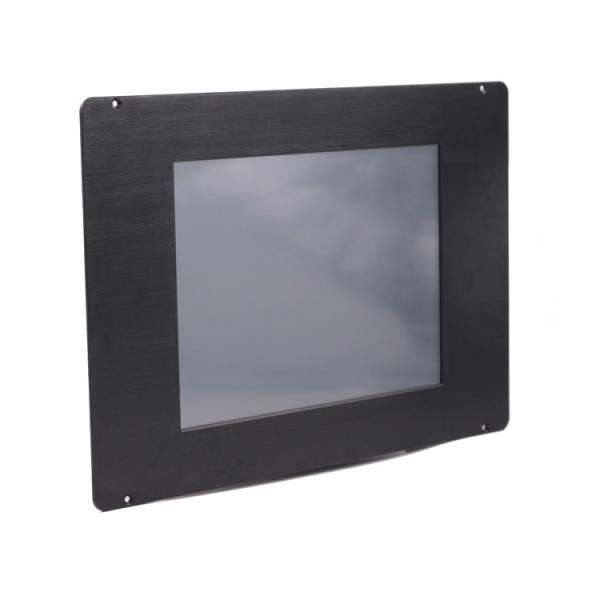

12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed
Specifications
Brand Name :
INNODA
Model Number :
IND121PC
Certification :
CE,RoHS, FCC
Place of Origin :
Shenzhen,China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
12working days upon receive the payment
Packaging Details :
1pc/carton weight: 5.5kgs/pc, packing size: 41.5×15×35.5cm
Type :
12.1'' Industrial Panel Pc
Resolution :
1024*768
Aspect ratio :
4:3
Touchscreen :
PCAP touch screen
CPU :
Intel Quad-core J1900/2.0Ghz
Wide voltage :
8-36V voltage
Working Temperature :
-20-70C
Material :
Aluminum alloy
Description

12inch Panel Mount Industrial Touch Panel Pc Front IP65 Waterproof

Features

1. Fully enclosed design, the whole PC is dustproof.
2. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Ultra-thin front bezel 3mm, ideal for embedded mounting.

Configuration

Processor System CPU Intel Quad-croe J1900/2.0GHz
Memory 4GB-8GB
Storage 64G SSD(up to 1TB)
Operation System Windows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 21.5'' Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option
Resolution 1920(H)x1080(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 4*RS232(RS485/RS422 optional)
USB 4xUSB2.0
LAN 2xRJ45, 10/100/1000 Mbps
HDMI yes
VGA 1xVGA
Optional RFID/ NFC card reader
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Aluminum alloy+metal
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC


Detailed Image
12.1'' Industrial All In One Pc Touch Screen Fully Enclosed12.1'' Industrial All In One Pc Touch Screen Fully Enclosed

Application

Intelligent Fab Automation

HMI system

Self-service pay station

Electrical fire monitoring system

water supply control cabinet

Parking payment machine

Intelligent Transportation

medical equipment

Electric control cabinet

Ticket Vending Machine

12.1'' Industrial All In One Pc Touch Screen Fully Enclosed

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness


Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference

12.1'' Industrial All In One Pc Touch Screen Fully Enclosed

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
