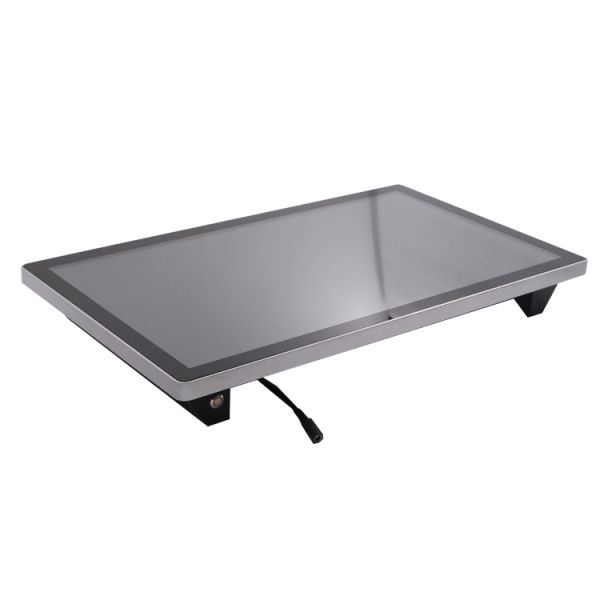

1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure
Specifications
Brand Name :
INNODA
Model Number :
IND215PC
Certification :
CE,RoHS, FCC
Place of Origin :
Shenzhen,China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
12working days upon receive the payment
Packaging Details :
1pc/carton weight: 5.5kgs/pc, packing size: 66×15×44.5cm
Type :
21'' Industrial Panel Pc
Resolution :
1920*1080
Aspect ratio :
16:9
Touchscreen :
PCAP touch screen
CPU :
Intel Core I5-7200U
Wide voltage :
8-36V voltage
Working Temperature :
-20-70C
Material :
Aluminum alloy
Description

21.5-Inch Aluminum Enclosure Black Industrial Touch Panel Pc 8-36V Voltage

Features

- Wide screen 21.5inch lcd panel
- Touch Screen Standard (Capacitive or Resistive or Tempered glass)
- 250 Nits of Brightness
- VGA,DP, HDMI inputs

- PCI slot

- 8-36V wide working voltage
- CE, FCC. RoHS Compliance

Configuration

Processor System CPU Intel core I5-7200U/1.8GHz
Memory 4GB-8GB
Storage 64G SSD(up to 1TB)
Operation System Windows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 21.5'' Lcd Panel
Touchscreen Type Capacitive touch screen / Resistive touch option
Resolution 1920(H)x1080(V)
Aspect Ratio 16:9
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 4*RS232(RS485/RS422 optional)
USB 4xUSB2.0
LAN 2xRJ45, 10/100/1000 Mbps
HDMI yes
VGA 1xVGA
Function PCI
8-36V voltage
DP port
Optional RFID/ NFC card reader
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
Front waterproof / Full sealed Waterproof
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with cable
Working Temperature -20~70° C
Other Information Material Aluminum alloy+metal
Color Black/Silver/White
Mounting VESA mount / Embedded
Certificates CE/ RoHS / FCC


Detailed Image
1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure

Application

Intelligent Fab Automation

HMI system

Self-service pay station

Electrical fire monitoring system

water supply control cabinet

Parking payment machine

Intelligent Transportation

medical equipment

Electric control cabinet

Ticket Vending Machine

1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure

Customization
size-7-42inch optional
Touch-capacitive/ Resistive/IR touch
AG / AR glass
Optically bound
1000cd/m2 sunlight readable brightness


Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference

1920*1080 21.5inch Industrial Touch Panel PC Aluminum Enclosure

INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.It offers rich of interface to meet csutomers needs.
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
