Quad Core Embedded System Board , OTA Industrial Embedded android linux Boards
Quad Core Embedded System Board , OTA Industrial Embedded android linux Boards
Quad Core Embedded System Board , OTA Industrial Embedded android linux Boards
Quad Core Embedded System Board , OTA Industrial Embedded android linux Boards
Specifications
Brand Name :
ADW
Model Number :
AD-Z19
Place of Origin :
China
MOQ :
1
Price :
USD55~USD70/pc
Payment Terms :
T/T, Western Union
Supply Ability :
1,000,000pcs per month
Delivery Time :
1~3days if have stock, 30 days if out of stock
Packaging Details :
1pc/bubble bag, proper qty in a carton
CPU :
Rockchip3288 Quad core
GPU :
Mali-T764
EDP screen interface :
support resolution 1920*1080P
WIFI :
AP6212
internet :
RJ45 interface, support 10M/100M Ethernet
OS :
Android 5.0 or above
USB :
USB2.0
RAM :
2GB,4GB optional
EMMC :
8GB,16GB,32GB optional
Description

Quad Core Android Embedded Board with OTA for Industrial Use STB

Overview:
RK3288 Android all in one board, using Rockchip RK3288 quad-core chip program, support Google Android4.4 system. Support the mainstream audio and video formats and picture decoding. Dual 8-bit LVDS interface 1920 * 1080, can drive 7 "to 82" display.support 4K * 2K video playback. VGA interface, support 1280 * 720 resolution, rich interface, so that products become more common, widely used in advertising player,all in one machine, security, industrial and other intelligent control areas. Because of its hardware platform, Android intelligent features, in the need for interaction, network equipment, interactive, intelligent terminal platform can be used.

Characteristic:

  • High performance. RK3288 chip using quad-core A17 program, is currently on the market one of the most powerful quad-core chip. Using the chip RK3188 motherboard program, compared to the common market of single-core, dual-core, quad-core program, a qualitative leap in performance, to play a variety of formats HD video, can handle complex interactive operation.

  • High stability. RK3288 Andrews board, in the hardware, software, to increase their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.

  • Highly integrated. RK3288 Andrews integrated board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, backlight power supply and so on, greatly simplifying the machine design. Ultra-thin motherboard design, make the whole design more beautiful.

  • highly scalable. 6 USB ports, 3 serial ports, can expand more peripherals.



Product Specifications

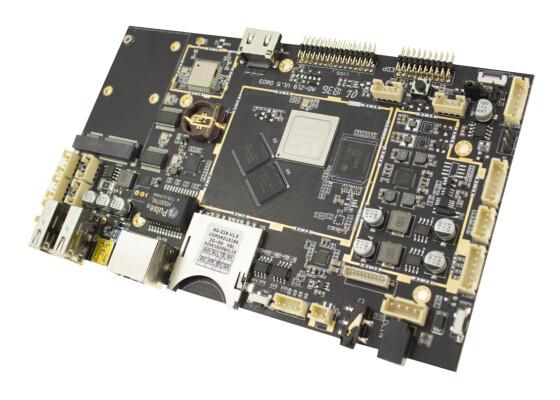

Product picture
Quad Core Embedded System Board , OTA Industrial Embedded android linux BoardsQuad Core Embedded System Board , OTA Industrial Embedded android linux Boards

Basic hardware specifications:

CPURockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764
Frequency2.2 GHz
RAMLPDDR3 2G/4G Optional
Built-in storage capacityEMMC 8GB/16G/32G Optional(label 8GB,support NAND FLASH)
Display interfaceLVDS interface(Single, 6-way, 8-way dual).Support maximum resolution 1920x1080, support 7 "-82" display.
EDP port, maximum resolution:4K*2K
Mainboard backlightSupport 3.3V/5V/12V Optional
Touch screenProvide I2C interface (can support multi-point resistance touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch.
NetworkHave RJ45 interface,support 10/100/1000M Ethernet.
With wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0
Image rotationSupport 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function.
Real Time ClockBuilt-in real-time clock powered battery
Interface deviceSupport DVP interface camera, the maximum support 500W pixels
Support USB camera
Support VGA,1280*720 output
5 USB HOST,1 USB OTG
3 serial ports. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
3 IO detection ports
SD CARD,maximum support 32GB
D class large built-in speaker,3W*2 4R
Support for microphones
AudioMP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
VideoSupport 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats. YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
PictureSupport JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power AdapterInput:AC100-240V.50-60HZ, Output: DC12V 3A


Basic software specifications:

Operating systemGoogle Android 5.0
Basic software functionsWeb browsing, web chat, e-mail, e-books, and resource managers
Sound modeClock, alarm clock, calculator, recording
Language supportMultiple languages
RecordingSupport MP3,WMA format recording
ToolCalendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Document processingEPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-bookPDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
ScheduleCalendar
Input methodStandard Andriod keyboard,Optional third party input method (Chinese, Korean, Japanese, etc.)
NetworkBrowser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System ManagementAPK Installer
The original eco-Android system, open root privileges, can be customized product development.
Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade

SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
