Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard
Specifications
Brand Name :
ADW
Model Number :
AD-Z33
Place of Origin :
China
MOQ :
1
Price :
USD55~USD70/pc
Payment Terms :
T/T, Western Union
Supply Ability :
1,000,000pcs per month
Delivery Time :
1~3days if have stock, 30 days if out of stock
Packaging Details :
1pc/bubble bag, proper qty in a carton
CPU :
RK3288 Quad core
GPU :
Mali-T764
diaplay interface :
LVDS(single, 6 dual, 8 dual
EDP screen interface :
support resolution 1920*1080P
Touch screen :
I2C interface
internet :
RJ45 interface, support 10M/100M/1000M Ethernet
USB :
USB2.0*2
RAM :
2GB,4GB optional
EMMC :
8GB,16GB,32GB optional
Description

Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard

Embedded Rockchip RK3288 1.8ghz Quad Core

Smart All-in-one Industrial mainboard, which is based on Rockchip RK3288 Quad core chipset. It supports Android 4.4 and 5.1 or above OS. Reinforced power-management circult, supports attached devices. Ample interfaces, steady performance. It can be used in smart remote control, such as Industrial, medical, Advertise-machine, education video terminal etc.

Key features:

1. Support LVDS interface monitors from 7 inch to 84 inch,

2. Multi Interaction modes: Capacitive Touch, IR Touch, IR remote, USB keyboard/mouse, Multi-touch

3. Multi network interfaces: Ethernet, Wireless WIFI, BT

4. Multi interfaces: USB, serial ports, IO interface, I2C, DC output

5. Strong anti-electromagnetic interference and Electromagnetic compatibility

6. High integrated, High definition,Build in amplifier,Rich function interfaces ,Easy management.

This smart android board integrated with android OS and rich function interfaces on one board,

Is great suitable for appliying on high definition network media box, advertising displays, frame displays,interactive displays,security system,and smart industiral control. etc.

All in one board

Android board with lvds output

1. Rockchip RK3288 Quad Core Cortex-A17,up to 1.8GHz

2. Support 4K*2K 10bits VP9/H265/H264 video decoing,up60fps.

3. Apply to Kiosk, Financial mahcine, Advertising Machine,Vending machine etc.

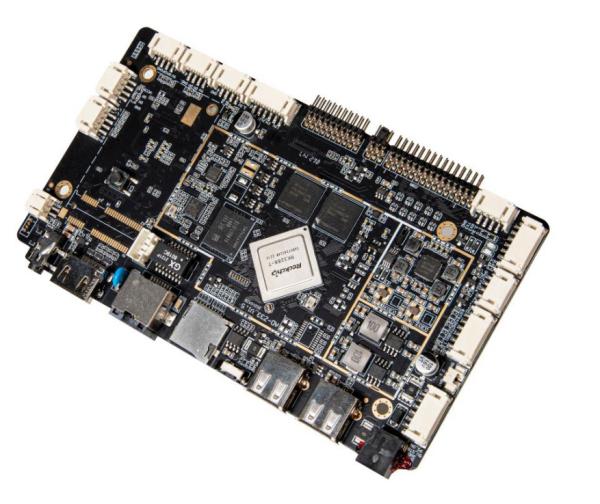

Product Picture

Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard

Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard

Basic specification of hardware:

CPU Rockchip RK3288 Quad core Cortex-A17, Quad core GPU Mali-T764
Frequency 2.2 GHz
RAM DDR3 2G/4G optional
EMMC EMMC 8GB/16G/32G optional(standard 8GB,support NAND FLASH)
Interface of monitor LVDS(single way,6 bit two-way,8 bit two-way).Resolution max 1920x1080,support 7"-84" monitar
EDP 2.0, Resolution max:support 2K screen
Mainboard backlight Support 3.3V/5V/12V(optional)
Touch Screen

I2C interface(support resistive touch, capacitive touch)

Support USB IR multi touch,sonic multi touch,optical multi touch
Network RJ45 interface, ethernet 10/100/1000M
Wi-Fi 802.11b/g/n/ ac, BT4.0
Image rotation Support 0°, 90°, 180°, 270°, manual control or automatic, gravity
RTC internal battery for Real time clock
interfaces Support MIPI camera,max 5MP
Support USB camera, max 2MP
USB HOST x 5,USB OTG x 1
Serial ports x 3, support external devices(NFC module, printer, card reader etc.).
IO ports x 3
TF card slot, support 32GB max
D amplifier:3W*2 8Ω,support microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video Support H.264,MPEG2,VP6,VP8,MVC, 2160P@24FPS decoding, . on-line video such as YouTube, max support 1080P,HTML5 playback,Flash10.1 playback
Picture Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify
Power supply input:AC100-240V.50-60HZ, output: DC12V 3A

Basic Software specification:

OS Google Android 4.2,4.4,5.1
Language Multi language
OS management Support OTA upgrade,U disk upgrade,SD card upgrade
Original Android OS, rooted,OEM/ODM support
Support output to 3 monitors at same time
Support customized local or remote server management OS
Support third-party Android remote Advertisement release OS
Support multi serials devices, USB devices, IO controlled devices
Support output different videos to two monitors

Customized Embedded System Board RK3288 1.8ghz Quad Core Android Motherboard

About Sunchip:

Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.

Sunchip has a huge R&D team which more than 80 employees.

They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.

So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.

BTW, Sunchip has more than 3200 square meters of factory and office, totally we have two floors in this building. Recently we plan to extend our office, because more younger people join us, we need more office. Moreover, more and more orders, seems that we also plan to extend our factory.

We got a lot of certificates, like, CE, ROHS, FCC on many products. Some clients, like from Japan, Korea, Thailand, requested to do TELEC, KC and TISI. We can do all of them.

FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),North America(11.00%),Eastern Asia(6.00%),Southeast Asia(5.00%),South America(3.00%),Western Europe(3.00%),Eastern Europe(2.00%),Oceania(2.00%),Mid East(2.00%),Central America(2.00%),Africa(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Wireless charger,Digital Photo Frame,Advertising machine,Commercial media box,ARM board

4. why should you buy from us not from other suppliers?
- 15 years of R&D and production experience - More than 100 R&D team - Over 3000 square meters' factory space - Pocessing fully automatic assembly lines and high request working team - Owning CE/ROHS/FCC & national high-tech enterprise and patents

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
