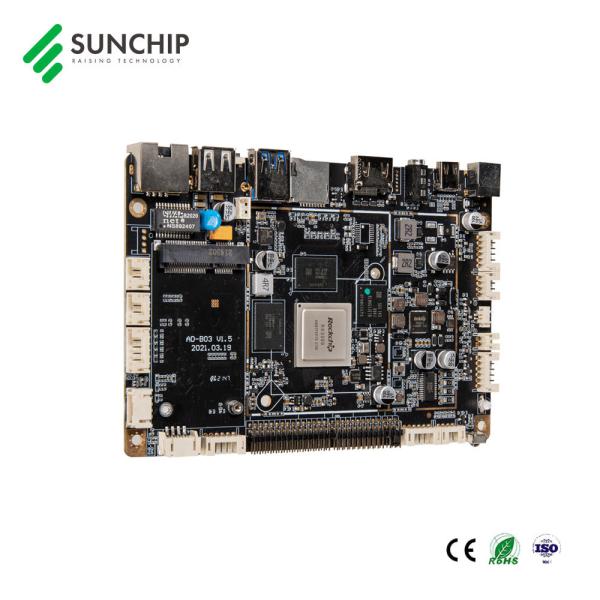

Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
Sunchip is a professional android board designer/manufacturer in Shenzhen, China.
We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.
Basic hardware specifications for Embedded System Board:
CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
GPU | ARM Mali-T860MP4 GPU |
Deposit | LPDDR4 4G |
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
EDP screen interface, support resolution 1920x1080 | |
Screen voltage | Support 3.3V/5V/12V optional |
Network | With RJ45 interface, support 10/100/1000 Ethernet |
Support 4G PCIE interface | |
With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 | |
Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI camera x2 |
USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
TF card, maximum support 64GB | |
Class D amplifier: 5W*2 8 ohms, support microphone | |
HDMI 2.0 output | |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
Basic software for Embedded System Board:
Operating system | Android 7.0 |
Basic software function | Web browsing, email, e-book, resource manager |
Sound mode | Clock, alarm clock, calculator, recording |
Voice support | Multinational voice |
Recording | Support MP3, WMA format recording |
Tool | Calendar |
Alarm Clock | |
Calculator | |
Note | |
Weather + clock | |
Recording | |
File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule | Calendar |
Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Internet | Browser -Chrome Lite |
Gmail | |
System Management | APK installer |
Original Android system, open root permissions, product customization development | |
Real-time remote monitoring, 7*24 hours unattended | |
Support OTA remote upgrade | |
System setting | |
Google Maps | |
Global time |
WHY CHOOSE SUNCHIP:
Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.
Sunchip has a huge R&D team which more than 80 employees.
They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.
So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.
BTW, Sunchip has more than 3200 square meters of factory and office, totally we have two floors in this building. Recently we plan to extend our office, because more younger people join us, we need more office. Moreover, more and more orders, seems that we also plan to extend our factory.
We got a lot of certificates, like, CE, ROHS, FCC on many products. Some clients, like from Japan, Korea, Thailand, requested to do TELEC, KC and TISI. We can do all of them.
SUNCHIP product list:
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
More recommendations of ARM Motherboard:
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
Contact: Zoe
Tel: +86 13823275318
Whatsapp:+86 18165515965
Email/Skype: zoe@sunchip-tech.com
Hope to get your kindly advice and let's work together to create something amazing !
