4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces
4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces
4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces
4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces
Specifications
Brand Name :
SUNCHIP ADW
Model Number :
AD-0146 box
Certification :
CE ROHS FCC ISO9001 ISO 14001
Place of Origin :
Guangdong ,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, PayPal, L/C
Supply Ability :
30,000PCS
Delivery Time :
Samples: 1-3 days; MP: 15-25 days;
Packaging Details :
1pc/inner box, 5pcs in a outer carton
CPU solution :
RK3568 Quad-core
OS :
ANDROID 11
Display interface :
LVDS/EDP/MIPI/HD OUT for display
Interface :
USB X4, RS232, HD MI X2, LAN, Audio etc.
Ethernet :
10/100/1000M Ethernet
Function :
WIFI, BT, Wlan, Audio, speaker,etc.
Supported Languages :
Multi-language
Accessories :
Power Adpater, Antenna
Max Resolution Output :
4K
Sd Card :
Maximum Support 64GB
Ota Upgrade :
Support (optional)
Description

4K Android 11.0 Metal Housing RK3568 Advertising Displaying Media Player Box

Characteristic:
① Support HD MI displays (4K ).
② Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.

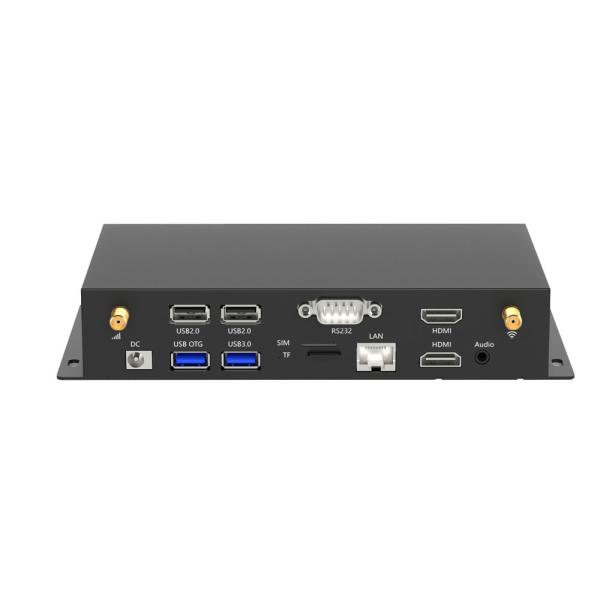

③ Multiple interactive mode interfaces: HD MI X2, Audio , RS232, USB 3.0 X2 , USB 2.0 X2, Gigabit Ethernet , SIM, TF

④ Metal housing with good heat dissipation

Application Field

■ Commercial advertising display machine

■ POS machine

■ Digital photo frame advertising machine

■ Touch all-in-one machine

■ Self-service vending machine

■ Vending / Kiosk

■ Media player box

■ Face recognition device

■ Roboter

Basic specifications:
System CPU&GPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
RAM 2GB/4G (optional)
Internal Storage 8GB/16GB/32GB/64GB(optional)
OS Android 11
Network WiFi IEEE 802.11b/g/n(optional)
Ethernet Support 10/100/1000M Ethernet
Mobile Network Support wireless 4G network(optional)
Bluetooth Bluetooth5.2

Interface RS232 RS232 com port, male head DB9*1
USB 2.0 USB 2.0_A*2
HDMI_OUT_2 HDMI-A output supporting 1920*1080 60HZ
DC holder*1 DC_12V input 5.5*2.1mm plug
Headphone 3.5mm stereo headphone output
USB_OTG USB_A*1
USB 3.0 USB 3.0_A*1
HDMI_OUT_1 HDMI-A 2.0 output(supporting 3840*2160 60HZ)
SIM card SIM card slot*1(optional)
Extended memory port TF card slot*1

Button Button Upgrade button*1
Environmental Conditions Working Environment Temperature:-20~60℃,5%-85%RH (No condensation)
Storage environment Temperature:-20~70℃,5%-95%RH (No condensation)
Material Shell material Metal
Size Product Size Shell size:190.6*98.9*34.7mm

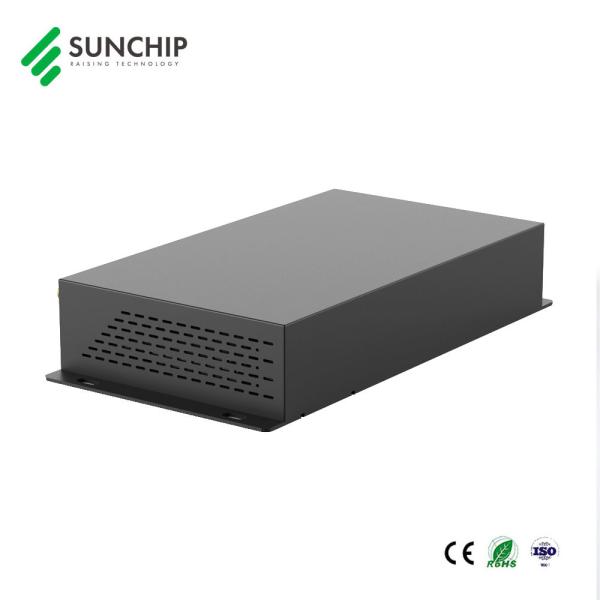

Product pictures:
4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces

Rockchip RK3568 Solution: ANDROID 11 OS,

2GB RAM/16GB ROM, Only Main board (no Sub small board).

WELCOME TO INQUIRY US ANY TIME. THANKS IN ADVANCE!

Service:

1. PCBA design

2. Housing design

3. Software and hardware customization

4. Logo print on housing

5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function

6. Good quality products

7. full after-sales service with technology support

8.100% QC check before shipping

About Sunchip

Established in 2011, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider.

Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base.

Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields.

FAQ

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.

2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.

3) Q: How long is the warranty time?

A: 1 Year.

4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.

5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.

6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
New Arrival!!!
4K RK3568 Advertising Displaying Media Player With Metal Housing And Multiple Network Interfaces
8K RK3588 AIot Edge Computing industrial box with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.
Here is the product image , few box in stock now, welcome to contact me to get more details information.
