5 Wire Resistive Touch Stainless Steel Panel PC 1024x768 High Resolution
5 Wire Resistive Touch Stainless Steel Panel PC 1024x768 High Resolution
5 Wire Resistive Touch Stainless Steel Panel PC 1024x768 High Resolution
5 Wire Resistive Touch Stainless Steel Panel PC 1024x768 High Resolution
5 Wire Resistive Touch Stainless Steel Panel PC 1024x768 High Resolution
5 Wire Resistive Touch Stainless Steel Panel PC 1024x768 High Resolution
Specifications
Brand Name :
Shinho
Model Number :
SC08W
Certification :
CE , FCC , RoHs
Place of Origin :
Shenzhen , China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Packaging Details :
1PC/Carton, Weight:4.5KG/PC, Packing size:40×33×16 cm
Product name :
8 inch Full IP65 Waterprof Stainless Steel Panel PC
CPU :
Intel® Celeron J1900 , quad core , 2.0GHz, fanless
RAM :
2G
Hard disk :
32G
IP grade :
Full IP65 waterproof
Touch Type :
5 wire resistive touch
Panel Size :
8 inch
Resolution :
1024x768
Description

8'' 1024*768 High Resolution Full IP65 Waterprof Stainless Steel Panel PC



Features:

1. Full material is sturdy and durables stainless steel.

2. 8 inch industrial LCD panel with 1024*768 high resolution,wide viewing angle, high nits and true color.

3. Adopt 5 wires resistive touch screen,high precision, durable, anti-interference.

4. Mainboard is high performance with 7x24 continuous operation.

5. Full sealed and fanless design with full IP67 waterproof and dustproof.

6. Sealed I/O with cable set included.



Advantages :

1. CPU is Intel® Celeron J1900 , quad core , 2.0GHz, fanless

2. Standard confirguration is 2G RAM,32G SSD,other confirguration is availalble.

3. Working temperature is wide range: -10C to +60°C.

4. Various signal ports, 2*USB+1*LAN+1*RS232, more other waterproof ports can be customized.

5. The buttons can be customized face back.

Applications

food & beverage processing

meat/poultry processing

pharmaceutical processing

clean room application

Marine Logistics

Wind Power Automation

Vessel

Outdoor kiosk


Specification

Model:SC08W
PC
CPU Intel® Celeron J1900 , quad core , 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3, (4G ,8G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network Onboard Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 2*USB+1*LAN+1*RS232
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 8"
Resolution 1024x768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits,sunlight readable (400 nits optional)
Response time 10ms
Contrast ratio 800:1
View angle 80/80/80/80 (R/L/U/D)
Touch panel
Touchscreen Type 4 wires resistive touch screen
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 90%
Surface Hardness 7H
Working Life >35 million times
Touch options ( 10 point capacitive touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage 12V (9-36V wide voltage optional)
Power consumption ≤45W
Enclosure
Material stainless steel case
Color Silver
VESA mounting 75×75mm/100×100mm
IP-grade Full IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 3.5KG
Gross weight 4.5KG
Product Dimension TBD
Packing size 40×33×16 cm
Accessories Power adapter,waterproof RS232/LAN/USB cable,power cord
Other
Mounting (options) 1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Certificates CE,FCC,RoHs
Warranty 13 months warranty


Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

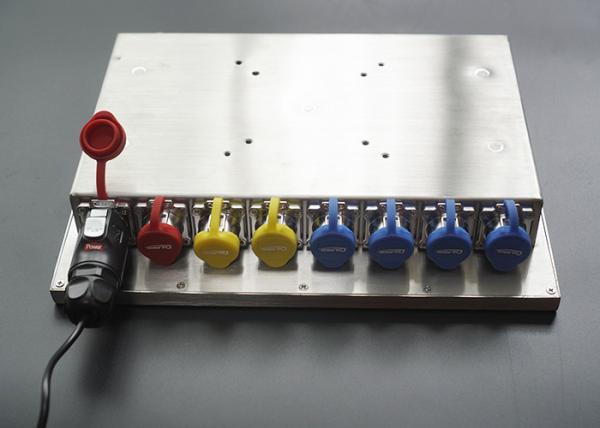

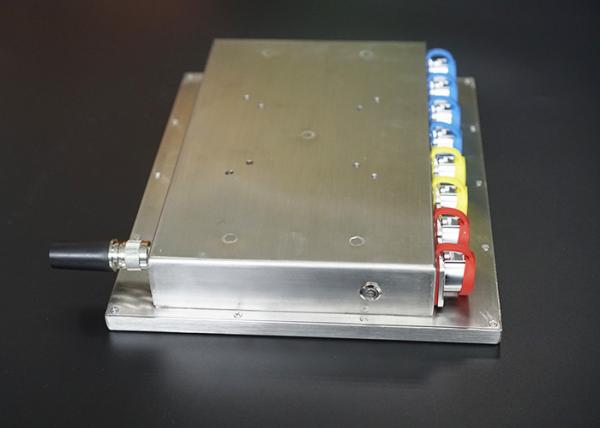

Pictures
