15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power
Specifications
Brand Name :
SHINHO
Model Number :
SL104
Certification :
CE, FCC, RoHS
Place of Origin :
China(Mainland)
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Product name :
10.4 Inch Capacitive touch Monitor
Color :
Black
Material :
Aluminium Alloy Bezel+Metal Back Case
Resolution :
1024*768
Interface :
USB3.0(Support video signal, power and touch)
Power Consumption :
≤15W
OEM/ODM :
Support
Warranty :
12months
Description

10.4 Inch USB3.0 3 In 1 Video Display Power And Capactive Touch LCD Monitor

Feature

1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
6. Support video signal, power and touch over a single USB3.0 cable.

Specification

10.4" USB Powered Touchscreen Monitor (Model:SL104)
LCD panel
Panel size 10.4"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 800:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
USB 1×USB (support video signal, power, and touch over a single USB3.0 cable)
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V
Power consumption ≤15W
Enclosure
Material aluminium alloy bezel+High strength cold rolled steel back case
Color Black, Silver
VESA mounting 100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 1kg
Gross weight 1.5kg
Product Dimension 26.6*21.4*2.75cm
Packing size 33*30*10cm
Accessories USB3.0 cable
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE, FCC, RoHS

Pictures

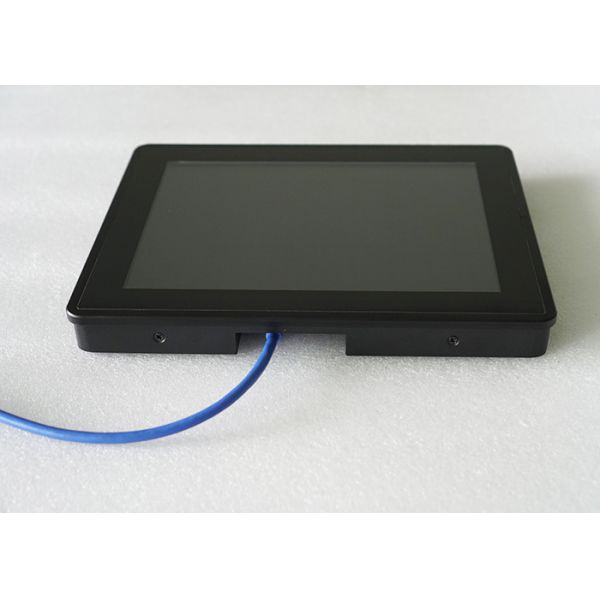

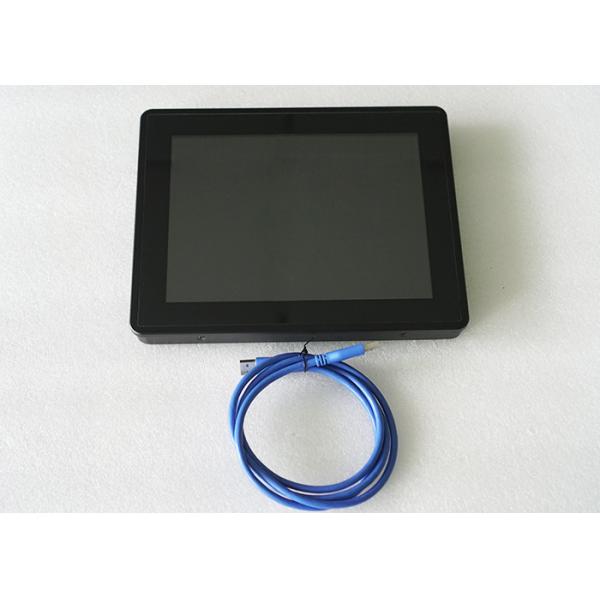

15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power

15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power

15W 10.4 Inch Capacitive Touch Screen Monitor USB3.0 3 In 1 Video Display Power

Application

Ticket machine

Out fare turnstile gates

SMArt Lockers parcel locker

On vessel

Stereo garage

Financial industry

Security monitoring

Self serve kiosk

Automatic pay station machine
