15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
Specifications
Brand Name :
Sihovision
Model Number :
SC15
Certification :
CE , FCC , RoHs
Place of Origin :
Shenzhen , China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Size :
15 inch
CPU :
Intel Celeron J4125
Touch Type :
capacitive touch
Resolution :
1024*768
Brightness (cd/m²) :
300nits
View angle :
85°/85°/85°/85° (R/L/U/D)
Power :
DC 12V
Material :
Aluminum Alloy +High strength cold rolled steel
Description

15 inch Industrial Grade Components Embedded Touch Panel PC with Camera 2 COM RS232 and 2 USB3.0 Ports

Features:
1. Aluminum alloy frame with sandblasting and oxidation process, anti-UV and anti-discoloration treatment, front shell IP65 waterproof
2. Industrial grade LCD screen, full viewing angle
3. Ten-point capacitive touch, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H
4. Front 12MP camera
5. Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃

Specification

PC
CPU Intel® Celeron J4125, Base 2.4 Ghz, Turbo 2.7 Ghz, Fanless
Chipset Intel® Gemini Lake
Memory 8G DDR4-2400/2133
Storage Capacity 256G SATA3.0
Graphics Intel® UHD Graphics 600
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1*Realtek RTL8106E Gigabit network card
Wireless Network WIFI 4G Optional
Preinstalled OS Window10 Pro
Operation System Support Windows 7/8/10/11, Linux, Ubuntu, Debian, etc.

I/O

USB 2* USB2.0, 2* USB3.0
COM 2* COM RS232
LAN 1* RJ45
Video Outputs 1*VGA, 1*HDMI
Audio 1* 3.5mm Line-out, 1* 3.5mm Line-in
Power input 1* 12V DC jack
Other 1* Power on/off button
Working voltage DC 12V
Power consumption 20W
Power adapter AC 100 ~ 240V input and DC +12V@5A MAX output, 60W

LCD panel

Screen diagonal 15"
Display active area 305.1(W)×229.1(H) mm
Resolution 1024*768
Aspect ratio 4:3
Brightness (cd/m²) 300 nits(1000 nits Optional)
Brightness control N/A
Contrast ratio 1000:1
View angle 85°/85°/85°/85° (R/L/U/D)
Support Color 16.7M colors
Backlight WLED, 50K hours
Touch panel
Touchscreen Type Projected Capacitive Touch (up to 10 points )
Surface Hardness 7H
Surface treatment N/A
Luminousness ≥90%
Touch controller IC ILITEK5200
Available touch drivers Windows, Linux, Android, Mac, etc
Touch bonding Air bonding
Touch optional Resisive touch, non touch, IR touch optional

Enclosure

Material Galvanized cold rolled plate shell
Finish Electrostatic powder spraying
Color Black
VESA mounting VESA mount 75*75/100*100mm, Panel mount
IP grade Front IP65 waterproof

Operating Environment

Temperature Range Operating: -20 °C(-4℉) to 70°C(158℉),
Storage: -30 °C(-22℉) to 80°C(176℉)
Relative humidity Up to 100% at all relevant temperatures, non-condensing
Vibration GB/T 2423.10-2019
Shock GB2423.5
EMC Class B

Other

Product weight Net weight 4.5kg Gross weight 6.3kg
Product Dimension 380×300×79mm
Packing info 1pcs/ctn 53×16×40cm 6.3kg
2pcs/ctn 53×30×40cm 13kg
Accessories Power cable, Power supply, Embedded mount screws
Warranty 1 year warranty
Certificate CE, FCC, RoHS

Pictures

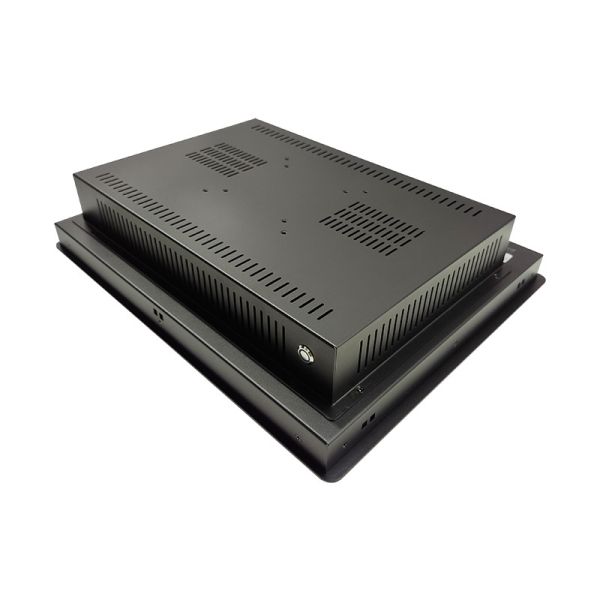

15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports

Drawing

15 Inch Embedded Touch Panel PC With Camera 2 COM RS232 And 2 USB3.0 Ports
Application:

It is ideal for application such as EMR healthcare terminal, CNC machinery control, stopping/starting processes, numerical control device, retail interactive kiosk, digital signage interface, industrial automation, and some poor working enviroment.


Advantages

This compact and nimble 10.4" panel mount touchscreen PC is a slim, fanless computer suitable for a wide variety of applications. The industrial panel pc is built with the Bay Trail Celeron J1900 quad-core CPU, which employs a system on chip (SoC) architecture to ensure high reliability in many environments. This unit can be panel mounted or VESA mounted for quick and easy installation in your operations. Additionally, the front bezel of this resistive touchscreen.


Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
