Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Embedded LCD Display Capacitive Touch Monitor 12 Raspberry Pi 3 Compatible
Specifications
Brand Name :
Sihovision
Model Number :
SL12
Certification :
CE, FCC, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,Paypal, MoneyGram
Product name :
12" Embedded LCD Display
Resolution :
1024*768 or 800*600
Aspect ratio :
4:3
Interfaces :
HDMI VGA DVI USB
Brightness :
300 cd/m2
Wide voltage :
12-24V
Touch Type :
Capacitive touch screen
Features :
Raspberry Pi 3 Compatible
Description

12" Embedded LCD Display Capacitive Touch Screen Raspberry Pi 3 Compatible

Feature

  • 12" TFT LCD panel

  • Front panel IP65 waterproof

  • 1024*768 or 800*600 resolution

  • 300cd/m2 brightness for indoor use

  • Capacitive touch panel, covered with 2mm tempered glass for vandal proof

  • VGA HDMI DVI USB interface

  • High performance mainboard, 7x24 continuous operation

  • Support 12-24V wide voltage

  • Ultra-thin front bezel 3mm, ideal for embedded mounting

Specification

Model: SL12

LCD panel

Panel size

12"

Resolution

1024*768 or 800*600, square screen

Aspect ratio

4:3

Support Color

16.7M colors

Brightness (cd/m²)

300+

Contrast ratio

1000:1

View angle

80°/80°/80°/80° (R/L/U/D)

Touch panel

Touchscreen Type

Project Capacitive Touch (10 points )

Surface Hardness

7H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch response time

2ms

Working Life

>50 million times

Touch options

(5 wires restive touch, IR touch optional)

Signal Ports

VGA

1x VGA

DVI

1x DVI

HDMI

1x HDMI

Audio in/out

optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.

Support languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.

Support OS

Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.

Power Supply

External Power Supply

AC 100 - 240V, 50-60Hz

Working voltage

DC 12-24V

Power consumption

≤35W

Enclosure

Material

Aluminum Alloy

Color

Black, Silver

VESA mounting

75x75mm/100x100mm

IP grade

Front panel IP65 waterproof

Operating Environment

Temperature Range

operating: -10 to 60°C, storage: -20 to 80°C

Relative humidity

operating: 10% to 80%, storage: 5% to 90%

Packing Details

Net weight

3.5kg

Gross weight

4kg

Product Dimension

31.9*25.7*5.95cm

Packing size

43*38*18cm

Accessories

Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card

Other

Mounting

embedded mounting screws

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

12" Embedded LCD Display Application

  • CNC cutting machine

  • Testing machine

  • Die casting machine

  • Self-service payment kiosk

  • Car parking equipment

  • Industrial automation

  • Laundry locker

  • Dry cleaning shop

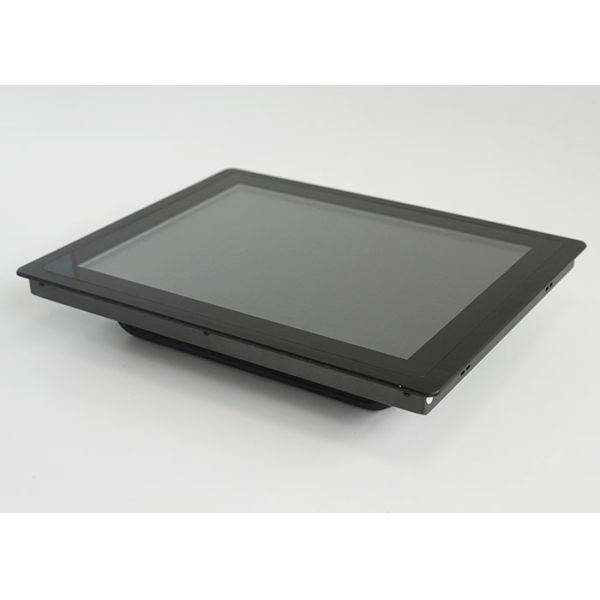

Pictures

Embedded LCD Display Capacitive Touch Monitor 12

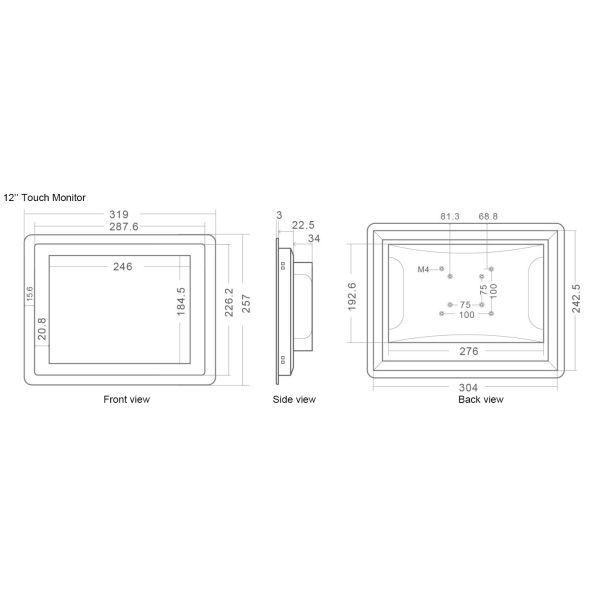

Drawing

Embedded LCD Display Capacitive Touch Monitor 12
