400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure
400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure
400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure
400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure
400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure
400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure
Specifications
Brand Name :
Shinho
Model Number :
SC19
Certification :
CE , FCC , RoHS
Place of Origin :
Shenzhen , China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Product name :
Touch Screen Panel PC
CPU :
Intel® Celeron J1900, quad core, 2.0GHz, fanless
RAM :
2G DDR3
Hard disk :
32G SSD
Touchscreen Type :
Project Capacitive Touch (10 points)
Resolution :
1280*1024
Aspect ratio :
4:3
Brightness :
400 nits
Description

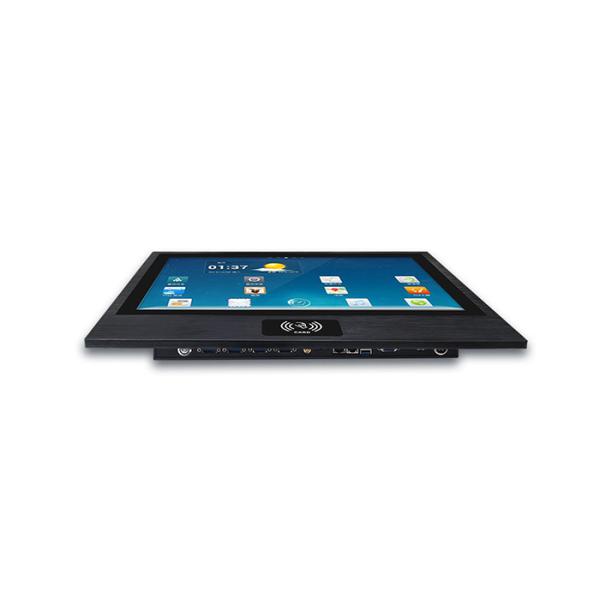

19" RFID Touch Screen Panel PC With Rugged Aluminium Enclosure

Introduction

This is a durable 19" Flat Bezel Touchscreen Panel PC based around Intel® Celeron J1900 processor technology. The system delivers high performance housed in a state of the art mechanical package incorporating Projected Capacitive 10 points Touch Technology with a borderless flat surface design. The bezel offers IP65 wateproof and dustproof, thus making it an attractive option for various kiosk/ multimedia applications, alongside more traditional industrial place, too.

Features

  • 19” 4:3 (1280x1024) LCD Panel with LED Backlight
  • Projected Capacitive Multi-touch Screen
  • Fanless Design with quad core Intel® Celeron J1900 Processor
  • IP65 Front Panel Protection
  • Mounting Methods: Open frame, embedded mounting
  • 6 COM, w/ 2 Isolated RS-232/ 422/ 485
  • 1 USB 3.0, 1 USB 2.0, 4 COM RS232, 2 RJ45, 1 VGA/HDMI/Audio OUT/MIC IN/POWER DC
  • DC 12V
  • WiFi, RFID included

Applications

Proudction line auto control

Supply chain management and application

Human Machine Interface (HMI)

Railway station

Attendance check machine

Logistics management system

Security Turnstile

Specification

Model: SC19
PC
CPU Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3, ( Max. 8G)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 1×USB 2.0,1×USB 3.0, 4 x COM RS232, 2 x RJ45
1×VGA/HDMI/Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 19"
Resolution 1280*1024
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options ( 5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver , Black, white, color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 7.5kg
Gross weight 8.5kg
Product Dimension TBD
Packing size 74×45×18 cm
Accessories Power adapter,embedded screws,user manual,warranty card
Other
Mounting (options) open frame
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Customization RFID
Warranty 1 year warranty
Certificates CE,FCC,RoHS

Drawing

400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure

400 Brightness Nits Industrial Touch Panel PC Rugged Aluminium Enclosure
