Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port
Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port
Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port
Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port
Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port
Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port
Specifications
Brand Name :
Shinho
Model Number :
SM180
Certification :
CE, ROHS, FCC
Place of Origin :
Shenzhen , China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Name :
Aluminum industrial mini PC
CPU :
Intel i3 6100U Dual Core 2.3Ghz
RAM :
4GB DDR4
Hard disk :
64GB SSD
Material :
Aluminum
Front I/O :
4xUSB, 2xCOM
Rear I/O :
2xUSB, 2xLAN port,1xHDMI, 1xDP, 1xDC, 1xAudio
OS :
Win7/10, Linux
Description

Aluminum Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port

Features

  • Intel Core i3-6100U processor, Dual Core, 2.3GHz (support upgrade i5 i7)
  • RAM 4GB, hard disk 64GB (support upgrade)
  • 2x RJ45, 2x COM, 4x USB3.0, 2x USB2.0, 1x HDMI, 1x DP, 1x two in one audio, 1x DC port
  • Support Windows 7/10, Linux OS
  • Not only for industrial automation, but also for office
  • Aluminum body, fanless design

Specification

Model: SM180

PC

CPU

Intel® Core i3-6100U, dual core, 2.3GHz.

CPU optional

Intel® Core i5-6200U, dual core, 2.3GHz.
CPU optional

Intel® Core i7-7500U, dual core, 2.7GHz.

Memory

4GB DDR4 (can upgrade to 8GB, 16GB)

Hard Drive Capacity

64GB SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Display Chip

Integrated Intel HD Graphics 520 card

Audio

Integrated Realtek ALC662 6 sound channel

I/O Interface

4xUSB 3.0, 2x USB 2.0, 1x HDMI, 1xDP, 1x Power switch, 1x 2 in 1 Audio, 1x DC 12V port

2x COM RS232, 1x Audio, 2x RJ45 1000M Lan

Network

2x Realtek 8111E 10/100/1000M

BIOS

64Mb SPI FALSH

WDT

Support hardware reset (256 level, 0-255 sec)

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian etc.

Power Supply

External Power Supply

AC 100 - 240V

Working voltage

DC 12V

Power consumption

≤40W

Enclosure

Material

Aluminum Alloy

Color

Black, color can be customized for bulk orders.

Operating Environment

Temperature Range

operating: -10 to 50°C, storage: -10 to 60°C

Relative humidity

0%~95% , non-condensing

Packing Details

Net weight

1.4kg

Gross weight

2.5kg

Product Dimension

17.89*12.66*5.55cm

Packing size

28*25*8cm

Accessories

Power adapter, open frame kits, user manual, warranty card

Other

Mounting (options)

open frame

wall mounting brackets (optional)

Warranty

1 year warranty

Applications

Office work

Industrial automation

Self-service kiosk

Digital Signage

telecomommunication

Factory automation

Entertainment video

machine control

CNC cutting machine

Multi media education

vending machine

laser cutting machine

Pictures

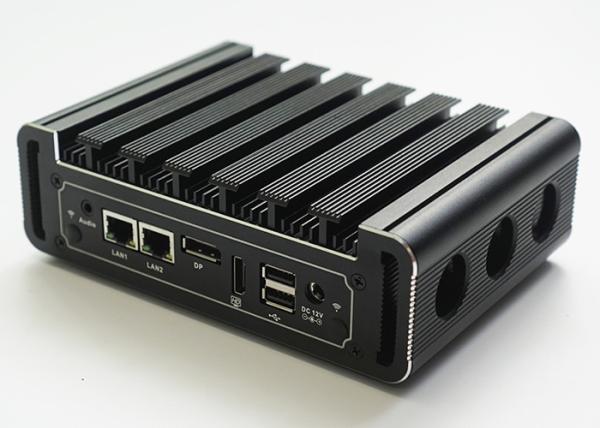

Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port

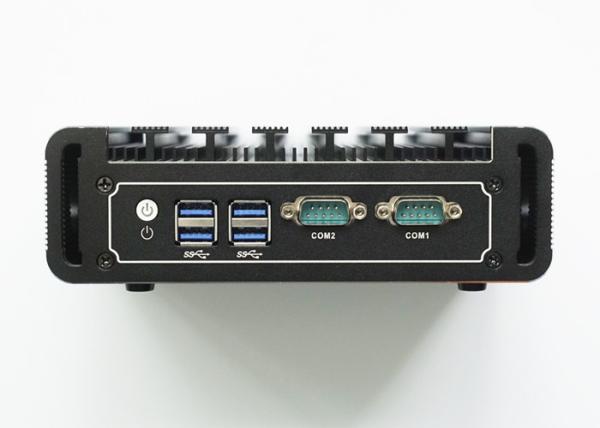

Aluminum Material Industrial Mini PC Intel i3 6100U Dual Core 2.3GHz 2 LAN Port
