Specifications
Brand Name :
SHINHO
Model Number :
SC07A
Certification :
CE, FCC, RoHS
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Paypal, Western Union, MoneyGram
Product Name :
Front Panel IP65 Industrial Android Tablet PC 7 Inch
Panel size :
7 inch
Resolution :
1024*600
Aspect ratio :
16:9
Product Dimension :
20.6x14.2x4.5 cm
Net weight :
0.8 kg
View angle :
89°/89°/89°/89° (R/L/U/D)
Touchscreen Type :
10 point capacitive touch
Description

Front Panel IP65 Industrial Android Tablet PC 7 Inch With Full Viewing Angle

Features:

1. 7 Inch WXGA (1024 x 600) TFT LCD Display with LED backlight.

2. Front panel is IP65 dustproof and waterproof.

3. Touchscreen is projected capacitive touch (10 points).

4. CPU is A83T, support Android™ v 4.4.2.

5. Various kinds color can be made.

6. Viewing angle is full range: 89°/89°/89°/89° (R/L/U/D).

Advantages

1. Flat panel design is fluent and beautiful.

2. All material is aluminium alloy, net weight is light.

3. Industrial LCD panel with wide viewing angle, high nits and true color.

4. Motherboard is high performance with 7x24 continuous operation.

5. Full sealed and fanless design, IP65 dustproof and waterproof.

6. -10 ℃ to 55℃ wide temperature support, suitable for different industry application.

7. Accept customization,No MOQ required.


In summary


The Android Tablet provides high resolution TFT LCD display with anti-scratch Gorilla™ glass. Moreover, this projected capacitive multi-touch panel offers outstanding viewing and operating experience. The front panel is IP65 rated for ingress protection, making it fully resistant to dust and water. It is an extreme operating temperature range at -10°C ~55°C. There are customization module such as builted in a G-sensor, light sensor, E-compass and GPS navigation, suitable for a great number of applications can be realized.

Specification

Model:SC07A
PC
CPUA83T,Cortex-A7 ,eight core,2.0GHz
Memory2G
StorageeMMC 8G
Decoding ResolutionSupport maximum 2048*1536
Operation SystemAndroid 4.4.2
Play ModesSupport timing, loop and spots etc. play modes
Network SupportRJ45, WIFI, 3G, 4G , TD-LTE (optional)
Image FormatJPG/BMP/GIF/TIFF/PNG
Video FormatRMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc.
Audio FormatMP3,WMA,AAC,etc.
RTC Real Time ClockYES

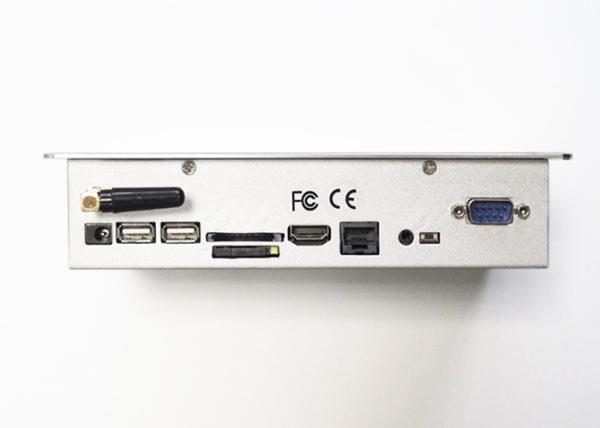

I/O Interfaces
USB2×USB
COM1×COM
LAN1×RJ45, 10M/100M adaptive ethernet
HDMI1×HDMI , support 1080p
DC1×DC
Card Slot1×TF
LCD panel
Panel size7"
Resolution1024*600
Aspect ratio16:9
Support Color16.7M colors
Brightness400 cd/m²
Response time5ms
Contrast ratio800:1
View angle89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type10 point capacitive touch
Touch response time<2ms
Luminousness90%
Surface Hardness7H
Working Life>50 million times
Power Supply
External Power SupplyAC 100 - 240V
Working voltageDC 12V
Power consumption≤45W
Enclosure
AppearanceFlat panel
MaterialAluminum alloy
ColorBlack, white, Silver , color can be customized
VESA mounting75×75mm/100×100mm
IP gradefront IP65
Operating Environment
Working temperature-10°C to 55°C
Relative humidity<85%
Vibration resistance5-19Hz/1.0mm amplitude , 19-200Hz/1.0g acceleration
Impact resistance10g acceleration , 11ms period
Packing Details
Net weight0.8 kg
Gross weight1.6 kg
Product Dimension20.6x14.2x4.5 cm
Packing size31×31×11 cm
AccessoriesPower adapter,embedded screws,warranty card, user manual
Other
Mounting (options)1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Customization3G,4G,Webcam, RFID reader etc. optioanal
Warranty3 years warranty



Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.


Drawing
