Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Front USB Port Rugged Touch Panel PC Windows Embedded Touch Screen Silver Color
Specifications
Brand Name :
Shinho
Model Number :
SC07
Certification :
CE , FCC , RoHS
Place of Origin :
Shenzhen , China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Size :
10.4 inch
Resolution :
1024*768
CPU :
Intel®core i3-4160 3.60 GHz
Chipset :
Intel NM81
Touch type :
Project Capacitive Touch (10 points)
View angle :
80°/80°/80°/80° (R/L/U/D)
Working voltage :
DC 12V
Color :
Silver
Material :
Aluminum Alloy bezel+ High strength cold rolled steel back case
Product Dimension :
28.9×21.1×4.3 cm
Description

10.4 inch Rugged Touch Panel PC with Front USB Port and Silver



Features:

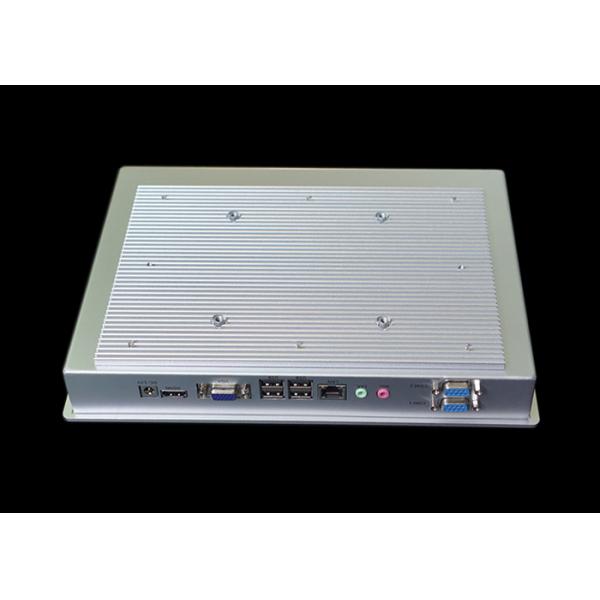

1. There is hestsink in the back, beautiful and durable and good heat dissipation.


2. Industrial LCD panel with wide viewing angle.


3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.


4. High performance motherboard, 7x24 continuous operation.


5. There is one USB port in the front, easy to operation.


6. Support wall mounting, embedded and panel mount etc, apply to a wide range of industrial application.

Applications of Embedded Touch Panel PC

Medical environment

Consumer packaged goods industries

Process control systems

Photobooth

Industrial control cabinet

Numerical control device

Supervisory control and data acquisition

Industrial automation

Advantages

1. CPU is i3-4160, more fast, efficient and low power consumption.

2. Good heat dissipation as there is a heatsink in the back.

3. More color can be customized, suitable for various application.

4. Various Interfaces,2×USB 2.0, 2×USB 3.0, RJ45x1,RS232x2,1×VGA/HDMI/Audio OUT/MIC IN/POWER DC.

Specification

Model:SC104
PC
CPU Intel®core i3-4160 3.60 GHz
Chipset Intel NM81
Memory 2G DDR3, ( Max. 8G)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 32GB,64GB,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI optional
I/O Interface 4×USB2.0 , 2 x COM RS232, 1×USB 2.0,POWER DC in front bezel
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/
Opetation System Support Windows 7/8/10/XP, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 10.4"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 10ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 10 point capacitive touch
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working Life >50 million times
Touch options ( 4 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy bezel+ High strength cold rolled steel back case
Color Silver , Black, white, color can be customized
VESA mounting 100×100mm
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 3kg
Gross weight 4kg
Product Dimension 28.9×21.1×4.3 cm
Packing size 37×34×16 cm
Accessories Power adapter, embedded mounting screws, wall mounting bracket (optional)
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE,FCC,RoHS
