1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
Specifications
Brand Name :
SHINHO
Model Number :
SL156
Certification :
CE,FCC, RoHS
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,Paypal, MoneyGram
Product name :
15.6 Inch High Brightness Monitor With Capacitive Touchscreen
Resolution :
1366*768
Aspect ratio :
16:9
Brightness :
1000cd/m², sunlight readable
Touchscreen Type :
Project Capacitive Touch (10 points )
Material :
Aluminum Alloy
Description

15.6 Inch High Brightness Monitor With Capacitive Touchscreen For Outdoor Kiosk

Sunlight Readable LCD monitors are the best choice for applications where the sun's rays will be falling directly onto the face of the monitor, it;s specifically designed as a low-cost solution for use in bright sunlight
conditions. The 1000 nits brightness enable the user to see sharp, brilliant color video images even in bright ambient (indirect and reflected) light conditions.

Feature

1. 15.6" TFT LCD panel with LED backlight.


2. Robust and durable all-metal enclosure is aluminum alloy.


3. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility


4. Demountable embedded screws and holes for mounting, ideal for Kiosk/Self-service terminals


5. Brightness is upto 1000 nits.

6. Front panel is IP65 waterproof,dustproof and shockproof.

Application

It is ideal for applications such as self-service kiosk, vending machine, self-service storage cabinet, retail store, outdoor inspection equipment, other applications in brightly-lit environments, marine/Sailing boat, tennis courts and other outdoor sporting grounds.

Specifications

Model:SL156
LCD panel
Panel size 15.6"
Resolution 1366*768
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000cd/m², sunlight readable
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1×HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 2.5kg
Gross weight 3kg
Product Dimension 42×26.9×4.8cm
Packing size 47*44*18cm
Accessories Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 3 years warranty
Certificates CE,FCC,RoHS

Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

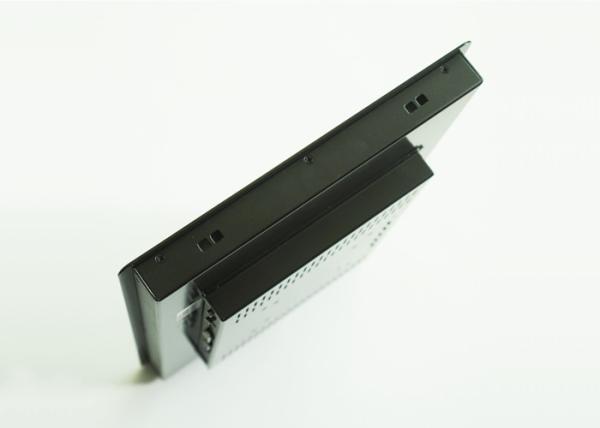

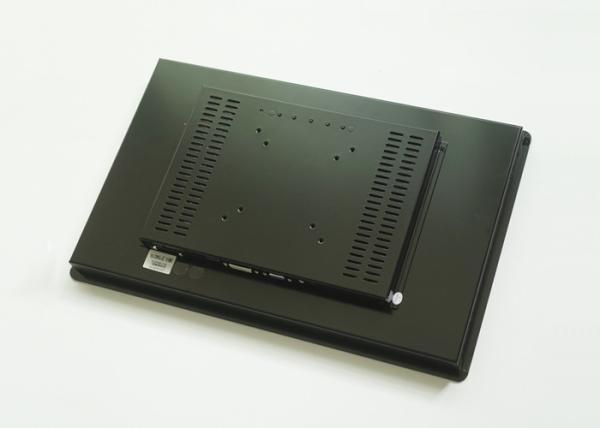

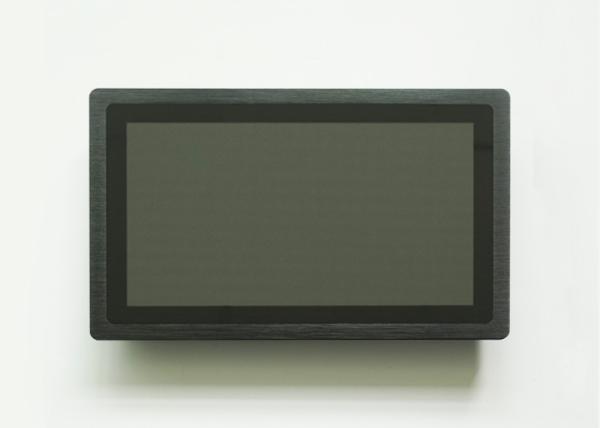

Pictures

1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material

1000cd/M² Brightness High Brightness Lcd Display Aluminum Alloy Material
