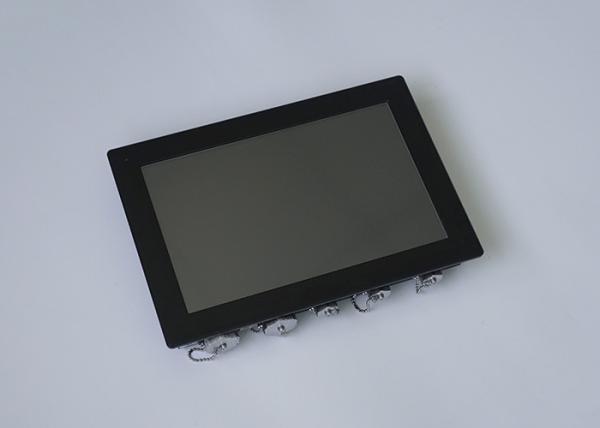

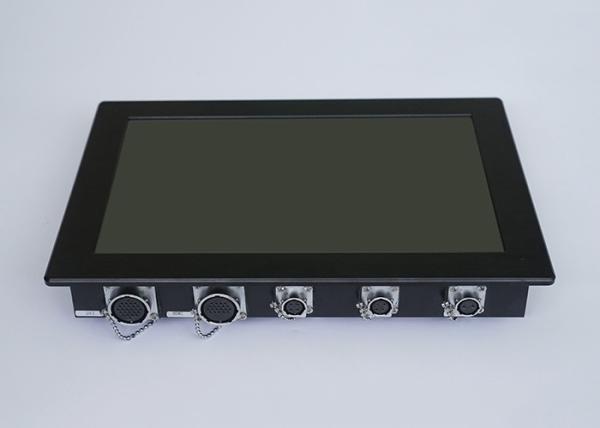

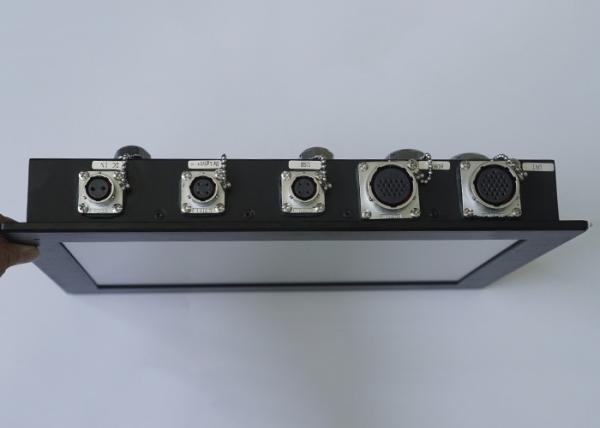

Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Specifications
Brand Name :
Sihovision
Model Number :
SL133W
Certification :
CE, FCC, RoHS
Place of Origin :
China(Mainland)
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Product name :
13.3 Inch resistive touch monitor with dimmer
Products status :
Stock
Material :
Aluminium alloy
Resolution :
1280*800
Brightness :
400+ cd/m2
Interface :
VGA,USB,HDMI
Response time :
2ms
View Angle :
80°/80°/80°/80° (R/L/U/D)
Type :
touch screen monitor
Touch Type :
5-Wire Resistive Touch
IP Grade :
Full IP67 waterproof
Color :
Black
Power supply :
DC 12V(AC 100-240V 50/60Hz)
Application :
Desktop,monitor,Embedded,banana pi,VESA mount
Warranty :
12months
Description

13.3 inch high precision industrial 5 wire resistive touch screen lcd monitor with dimmer


Features


1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
2. 13.3'' Industrial LCD panel, 400 nits.
3. Adopt EETI touch solution. high precision industrial 5 wire resistive touch screen. stable, durable, anti-interference.
4. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
5. With a dimmer to adjust the brightness.
5. High performance mainboard, 7x24 continuous operation.

Specification

Model:SL133W
LCD panel
Panel size 13.3"
Resolution 1280*800
Aspect ratio 16:10
Support Color 16.7M colors
Brightness (cd/m²) 400 nits
Brightness control Dimmer
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 75-85%
Surface Hardness 3H
Working Life >35 million times
Touch options ( PCAP touch optional)
Singal Ports
DVI 1xDVI
HDMI 1xHDMI
VGA optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption 25 W
Enclosure
Material aluminium alloy front bezel + High strength cold rolled steel back case
Color Black, white, Silver, color can be customized
VESA mounting 100x100 mm
IP-grade Full IP67 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity operating: 10% to 90%, storage: 5% to 90%
Packing Details
Net weight 4kg
Gross weight 5.5kg
Product Dimension 34.9×24.1×4.77cm
Packing size 50x47x17 cm
Accessories Power adapter, Waterproof Power cord, Waterproof HDMI/DVI/USB cable, Dimmer cable, Wall mount
Other
Mounting (options) 1) wall brackets for wall-mounting, VESA 100×100 mm
2) stable metal holder to support the monitor
Warranty 1 year warranty

Drawing

Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer

Package

Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer

Certifications

Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer

OEM & ODM

Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer

About Shinho Electronic
Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer


Application

Wide View Angle Resistive Touch Monitor 13.3 Inch Aluminium Alloy With Dimmer
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
Product Stamping and Packaging
