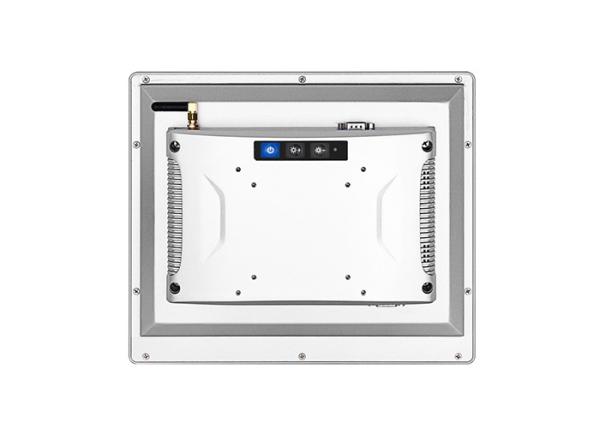

Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
Specifications
Brand Name :
SHINHO
Model Number :
SC121
Certification :
CE, FCC, RoHS
Place of Origin :
China(Mainland)
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Product name :
12 Inch Industrial Touch Panel PC
Resolution :
1024*768
Brightness :
300nits
View Angle :
80°/80°/80°/80° (R/L/U/D)
Touch type :
10 points Capactive touch
Vesa mounting :
75×75mm/100×100mm
Material :
Aluminum Alloy
Warranty :
12months
Description

New Design Frameless Flat Panel 12 Inch Industrial Touch Panel PC

Features

This is our fourth generation industrial panel PC, adopt industrial grade J1900 quad core processor, so it's fluent when open multi-web page.

Alumnium alloy compact structure, low power consumption, long-time stable operation under harsh environment.

Front IP65 dustproof and waterproof.

Widely use for industrial control, military, communication, power and etc.

Product line

Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits

Specification

Model: SC121
PC
CPU Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3 (4G, 8G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G, 128GB, 256GB
HDD: 500GB, 1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size 12"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 300+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options (5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver, Black, white, color can be customized
VESA mounting 75×75mm/100×100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range Operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 3.7kg
Gross weight 4.7kg
Product Dimension 29.2x25.05x5.97cm
Packing size 43x38x18cm
Accessories Power adapter, power cord, user manual, warranty card
Other
Mounting (options) Wall mounting brackets (optional)
Desk stand holder (optional)
Warranty 1 year warranty
Certificate CE, FCC, RoHS

Drawing

Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits

Application

Sorting machine

CNC automation equipment

Packaging inspection equipment

Supervisory control and data acquisition(SCADA)

Pictures

Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits

Frameless Flat Industrial Touch Panel PC 12 Inch Aluminum Alloy Material 300 Nits
