15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet
Specifications
Brand Name :
Shinho
Model Number :
SL15
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Resolution :
1920 x 1080
Interface type :
DVI,HDMI,VGA
Screen size :
15"
Brightness :
350cd/m
Type :
Capacitive
Application :
store/market/bank/school/ktv
Panel type :
TFT
Color :
Black
Backlight :
LED 50000 Hours
Warranty :
12 month
Touch points :
10 Points
Interface :
VGA,DVI,option HDMI
Description

Features
1. Robust and durable full metal case, shockproof, excellent heat dissipation
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.

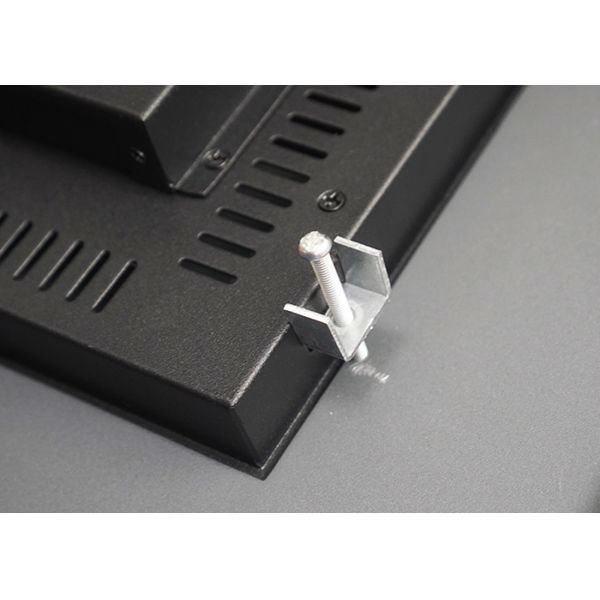

5. Support wall mounting,embedded mounting,desk stand mouting etc.

Specification

Model:SL15
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1×HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material High strength cold rolled steel
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 4.5kg
Gross weight 5kg
Product Dimension 38.63×31.1×5.5cm
Packing size 46*44*18cm
Accessories Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card
Cabinet
Material High strength cold rolled steel
Net weight 8.5kg
Gross weight 10kg
Product Dimension 50.8×45.72×20.32cm
Packing size 75*48*42cm
Accessories locker, removable plate
Other
Mounting open frame
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty

15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet15 Inch Embedded Mounting Open Frame Pcap Touchscreen Monitor With Cabinet

Application

Shopping Mall
Super Market
Smart home
Metro station
Compang
Hospital
Airport
Restaurant
Automobile 4S stores

Automatic pay station machine

Packaging testing equipment

Parking lot self-service payment machine
