Aluminum Alloy Fanless Industrial Pc Dual Lan I7 8265u 16G Ram
Aluminum Alloy Fanless Industrial Pc Dual Lan I7 8265u 16G Ram
Aluminum Alloy Fanless Industrial Pc Dual Lan I7 8265u 16G Ram
Aluminum Alloy Fanless Industrial Pc Dual Lan I7 8265u 16G Ram
Specifications
Brand Name :
Sihovision
Model Number :
SM103
Certification :
CE, FCC, RoHS
Place of Origin :
Shenzhen , China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Name :
fanless computer
CPU :
i7-8565u
Graphics card type :
Integrated Card
Storage :
Support 1 piece mSATA+ 2.5'inch SSD/HDD
Type :
Embedded Computer
Wifi :
Yes (Optional)
Temp :
-20℃～60℃
Optical drive type :
CD-ROM
Material :
Aluminum Alloy
Color :
silver/black
Operating system :
Window 7/ 8 /10, Linux Ubuntu
Weight :
4.5 KG
dimension :
230 * 202 * 68 mm
Warranty :
12 Months
Description

Aluminum Alloy Fanless Computer Dual Lan I7 8265u 16G Ram Industrial Pc

Key Features:


1. Stable performance, lower power consumption.

Intel core i3-8145u (dual core, 4 threads, 2.1 GHz, Max Turbo 3.9 GHz).
Intel core i5-8265u (quad core, 8 threads, 1.6 GHz, Max Turbo 3.9 GHz).
Intel Core i7-8565u (quad core, 8 threads, 1.6 GHz, Max Turbo 4.1 GHz).

2. Efficient heat dissipation.

High quality aluminum case forquickly heat dissipation. Fanless design for dustproof,shockproof and no noise.

3. I/O

2*RTL8111H 10/100/100OM LAN Support 1*M.2 2280 slot 1*2.5”SATA HDD lt can connect many device,such as industrial instruments

4. Full HD Dual Display

Support synchronous and asynchronous dual display

5. Various applications

Small PC with high-end configuration.

Specification
Model: SM103Plus
PC
CPU Intel core i3-8145u, i5-8265u, i7-8565u
CPU Architecture Whiskey Lake
RAM Support 2*DDR4 2400/2666 SODIMM Ram Slot, Max 32G
Storage Support 1*M.2 2280 Slot, 1*2.5''HDD
BIOS AMI EFI BIOS
Display Chip Integrated Intel Ultra HD Graphics
Display Port 1*VGA, 1*HD (Support synchronous and asynchronous dual display)
Network 2* RTL 8111H 10/100/1000M Lan
Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0～255 level)

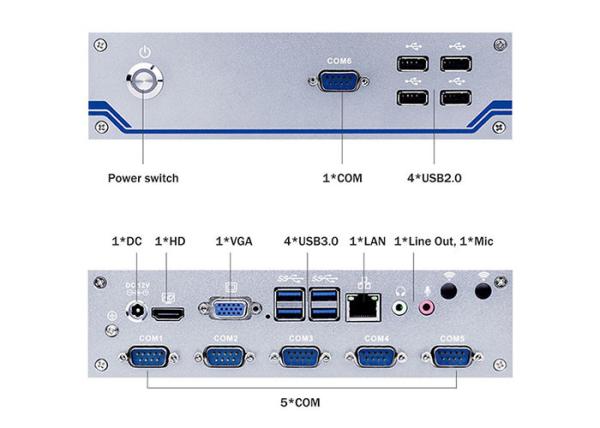

Front I/O 4*USB2.0, 1*COM, 1*Power Switch
Rear I/O 2* 1000M LAN, 1*VGA, 1*HD, 1 * Mic, 1 * Line Out, 5*COM (COM2 support RS232/485 Optional) , 1*DC, 2*USB3.0
Expansion Slot Support 1*M.2 2280 slot (Support PCIE X4 and SATA signal), Embeded SIM Slot
Support 1*M.2 2230 Slot (Support WiFi/BT) (standard version)
Support 1*M.2 2242 Slot (support 4G), with SIM slot( optional version)
Optional port: GPIO, 2*USB3.0, 1*LPT, 2*PS/2 (standard version without these port)
Power Supply
Power Supply Support DC 12 Input (DC 9 ～ 36V Optional)
Enclosure
Material High-quality all aluminum,surface anodic oxidation
Operating Environment
Temperature Range 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow
Work Humidity 0% ～ 95% non-condensing
Packing Details
Net weight 3 kg
Gross weight 4.5 kg
Product Dimension 230 * 202 * 68 mm
Packing size 310x280x80mm
Other
Mounting (options) 1) provide wall brackets for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Customization 3G,4G,Webcam, RFID reader etc. optioanal
Warranty 1 year warranty

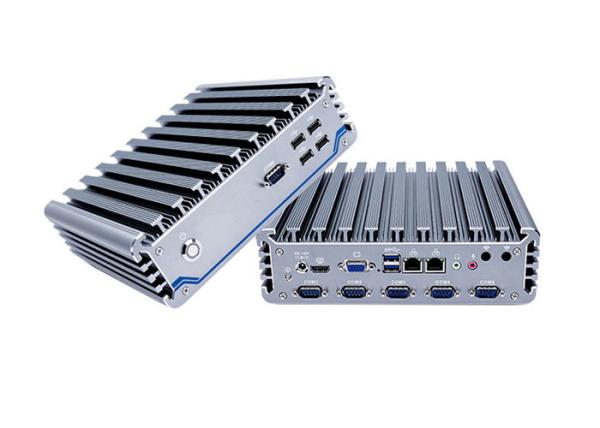

Pictures
Aluminum Alloy Fanless Industrial Pc Dual Lan I7 8265u 16G RamAluminum Alloy Fanless Industrial Pc Dual Lan I7 8265u 16G RamAluminum Alloy Fanless Industrial Pc Dual Lan I7 8265u 16G Ram
