DC12V Touch Screen Monitor Dustproof 1000 Nit Embedded Industrial Monitor
DC12V Touch Screen Monitor Dustproof 1000 Nit Embedded Industrial Monitor
DC12V Touch Screen Monitor Dustproof 1000 Nit Embedded Industrial Monitor
DC12V Touch Screen Monitor Dustproof 1000 Nit Embedded Industrial Monitor
DC12V Touch Screen Monitor Dustproof 1000 Nit Embedded Industrial Monitor
DC12V Touch Screen Monitor Dustproof 1000 Nit Embedded Industrial Monitor
Specifications
Brand Name :
Sihovision
Model Number :
SL101
Certification :
CE, FCC, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,
Panel size :
10.1"
Resolution :
1280*800
Touchscreen Type :
Project Capacitive
Features :
Anti glare
Brightness :
1000 nits
View angle :
85°/85°/85°/85° (R/L/U/D)
Product Dimension :
28.5×20.1×3.1cm
Power Supply :
DC12V
Mounting type :
Embedded mounting screws
Certificates :
CE, FCC, RoHS
Description

Anti Glare Touch Screen Monitor 10.1 Inches 1000 Nit Embedded Industrial Monitor

Features

1. Seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD Screen, operating: -20 to 70°C, storage: -30 to 80°C.
3. Adopt multi-points PCAP touch panel, high sensitive, covered with tempered glass for vandalproof.
4. Touch function can work well with drop water on the screen.
5.1000 nits, Anti glare, with light sensor for auto dimming.
6. High performance mainboard, 7x24 continuous operation.
7. Support wall mounting, embedded mounting, desk stand mounting etc.

Technical Details

Model:SL101
LCD panel
Panel size 10.1"
Resolution 1280*800
Aspect ratio 16:10
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits
Brightness control Light sensor for auto dimming
Contrast ratio 1000:1
View angle 85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Treatment Anti glare
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)

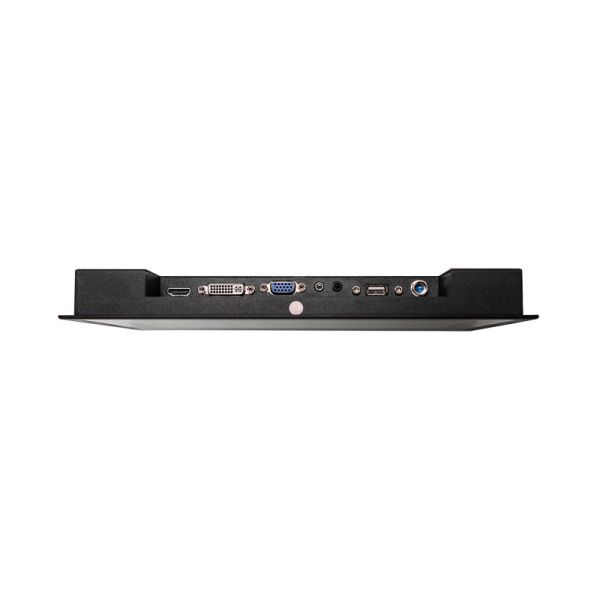

Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1×HDMI
Audio in/out optional

Power Supply

External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤25W

Application Environment

Enclosure
Material aluminium alloy bezel+High strength cold rolled steel back case
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%

Packing Details

Net weight 1.7kg
Gross weight 2.8kg
Product Dimension 28.5×20.1×3.1cm
Packing size 33×30×10cm
Accessories Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws

Drawing

DC12V Touch Screen Monitor Dustproof 1000 Nit Embedded Industrial Monitor

FAQ

Q1: Are you manufacturer?
A: Yes,we are professinal manufacturer, which establish in 2014, having 7 years production experience.

Q2: Where is your factory?
A: Our factory is located in shenzhen City, Guangdong Province with 1000 square meters workshop.

Q3: Do you support OEM or ODM?
A: OEM & ODM are welcomed. We have been offered OEM or ODM service for well-known brands and even the Chinese military.

Q4: How about the maintenance issue/warranty?
A: The warranty time is usually 1 years for most of products, within this time, no fee will be charged. If warranty time expired, we are aslo willing to offer free online guiding support, but repairing services will be charged reasonably.
