12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE
12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE
12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE
12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE
Specifications
Brand Name :
EMC
Model Number :
EMC-240
Certification :
CE, Rosh
Place of Origin :
China
MOQ :
1pics
Price :
USD32-USD40
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200pics/day
Delivery Time :
5-8 work days
Packaging Details :
carton
Type :
battery charger
Warranty :
1 year
Use :
lithium battery , lifepo4 battery pack
Material :
Aluminium alloy
Application :
electric vehicle
Lifetime :
30000 hours
Description

EMC-240 12V 10A Aluminium Alloy with Fan lithium battery charger for e-scooter

Introduction

Working Conditions
Humidity: 5~95%
Altitude: ≤3000m
Protect
Over Voltage:

Charger output voltage does not exceed the set maximum charging voltage of the battery
Over-temperature: None
Limiting:

Charger output current does not exceed the set maximum battery
charging current.
Short Circuit:

When the output short-circuit thecharger is not working properly, the output returns to normal, the charger can restore itself.
Reverse Polarity:

When the output line reversed after the charger will not work until the right user access only to start.
Charging
Power On:

LED1: Red
LED2: Green
Charging:

LED1: Red
LED2: Red
Fully Charged:

LED1: Red
LED2: Green
Environmental Testing Requirements
Max. Operating Temperature: +40℃
Min. Operating Temperature: -10℃
Max.Storage Temperature: +70℃
Min. Storage Temperature: -40℃
Random Vibration: 20Hz to 500Hz Acceleration 0.49
Repeat Shock: 10Hz to 60Hz Amplitude 0.38
Thermal Shock: -35~75 degree,<3min transition, 2.5hours dwell, 200cycle
Drop Test: BS EN60068-2-32:1993 TEST ED: free fall appendix B
Note: After the return to normal temperature 2 hours, the charger can work.

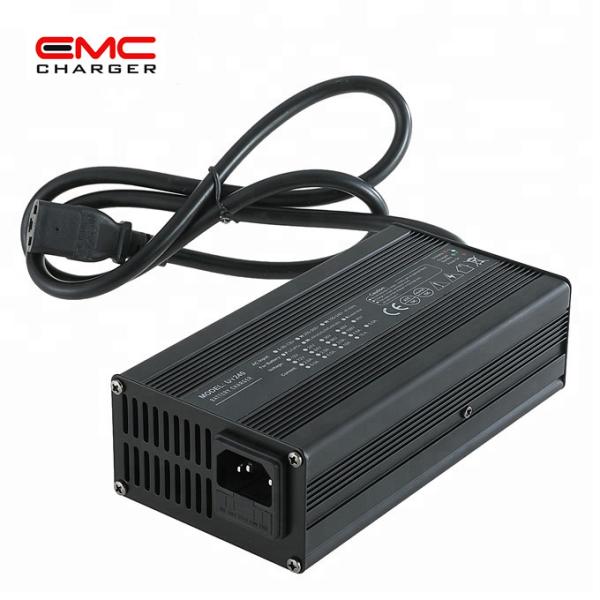

Charger picture

12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE

Specification

EMC-240 battery charger data sheet
No. Spec Constant voltage Constant current (A) Transition Cut-off(A) floating charge(V) Weight (kg) Size (mm)
Lead-acid Li-Mn Lifepo4 lead acide
(A)		 Li-ion
(A)
1 12V 14.7 12.6 16.8 14.6 10 2 0.5 13.8 1 170*90*50
2 24V 29.4 25.2 29.4 29.2 7 1.4 0.35 27.6
3 36V 44.1 42 42 43.8 5 1 0.25 41.4
4 48V 58.8 54.6 58.8 58.4 4 0.8 0.2 55.2
5 60V 73.5 67.2 71.4 73 3 0.6 0.15 69
6 72V 88.2 84 84 87.6 2 0.4 0.1 82.8
Charger details 1 Working environment temperature is less than 40℃
2 Input voltage:AC:90-132V&200-264V
3 Shell material: aluminum alloy
4 The input interface passes the IEC standard
Charger Features 1 CPU control and pulse width modulation (PWM) technology, high precision voltage and current locking to ensure full
2 Light weight, small size, stable performance, high efficiency, safe and reliable
3 Overcurrent, overvoltage, short circuit protection
4 Anti-interference, no radiation
※ 1. The shutdown current of the lithium battery charger is set to 5% of the constant current, and the charging constant current can be set according to the characteristics of the battery (the standard charging time of the lithium battery is 4 hours)
2. The conversion current of lead acid is set to 20% of the constant current of charging (the standard charging time of lead-acid battery is 8 hours)

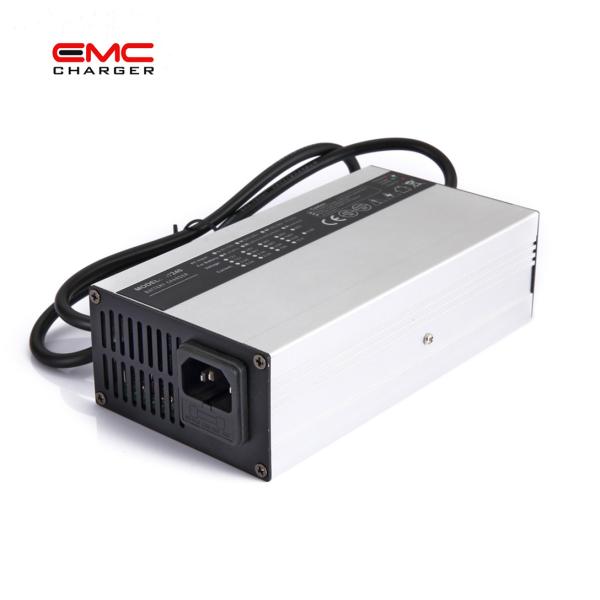

Detailed picture


12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE


Advantage


1. Short-circuit protection : output current will cut off automatically if short-circuit.
2. Overload protection: output current will be limited automatically when overload.
3. Reverse polarity protection: it will shut down until fuse or the fault removed.

4. 3-stage charging mode: CC, CV and trickle(or Cut off) .
5. Long lifetime: In the MTBF test, it makes more than 30,000 POH(power on hours)
6. Led Meter available : Show Charging Voltage and Charging Current.

7. all kinds of production has passed the CE certification and ROHS.
8. Efficiency: 94%( full capacity).Light, Small, Stable , Safe
9. The Charger Shell: With Aluminum Alloy Shell

charging Curve

12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE



12V 10A Aluminium Alloy with Fan lithium battery charger for E-scooter CE
