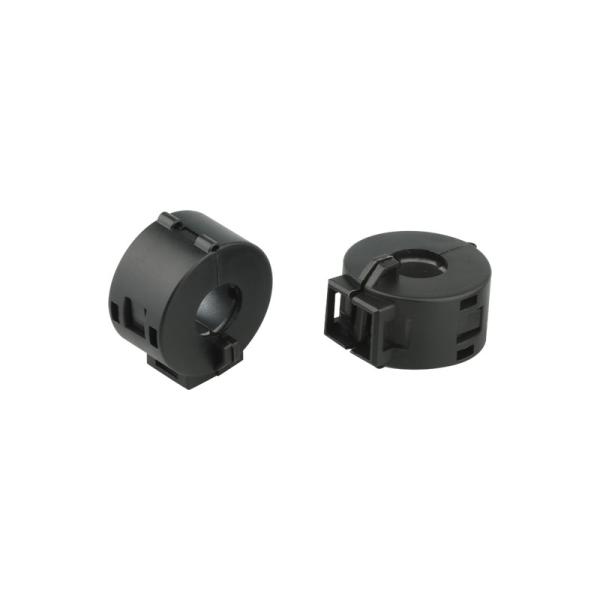

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke
VIIP 15mm RFI EMI Filter Snap On Ferrite Choke
Specifications
Brand Name :
VIIP
Model Number :
V18018
Certification :
Rohs Reach
Place of Origin :
china
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5k For one week
Delivery Time :
5-8 days
Type :
Clap-on
material :
F9
Product name :
snap on ferrite core
Application :
for VGA cables
color :
black
Model :
V18018
Description

VIIP 15mm Ferrite Cores Ring Clip-On RFI EMI Filter Cable Clip Different Items

Quick Detail:

  • Place of Origin:Guangdong, China
  • Brand Name:VIIP
  • Model Number:V18018
  • Type:Soft
  • Composite:Ferrite Magnet
  • Shape:Cylindrical

Description:

RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.

Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.

Specifications:

No. Specifications Fig Dimensions:mm Impedance(Ω)min
ΦA B ΦC D E 25MHz 100MHz
1 V18001A 1 13±1 11.8±1 3.5±0.8 25.2±1 2.5±1 135 260
2 V18001 1 13±1 12±1 5±0.8 25.2±1 2.5±1 90 190
3 V18002 1 16.5±1 14±1 7±0.8 30±1 2.5±1 80 195
4 V18002C 5 20.7±1 39.4±1 7.2±0.5 / / 120 220
5 V18003 1 19.5±1 18±1 9±0.8 35±1 5.5±1 100 240
6 V18004 1 23.5±1 22.2±1 13.5±0.8 36±1 10.5±1 90 190
7 V18005 2 17.5±1 19.5±1 6.5±0.8 32.5±1 / 135 330
8 V18006 2 22±1 23.5±1 10±0.8 33±1 / 90 250
9 V18007 2 29±1 30±1 13±0.8 32.2±1 / 160 280
10 V18008 3 19.5±1 23±1 8±0.8 17±1 23±1 70 140
11 V18009 3 19.5±1 23±1 8±0.8 19.5±1 26±1 80 160
12 V18010 4 15±1 14±1 7±1 18±1 22±1 45 125
13 V18011 4 19.5±1 / 9±1 32±1 36±1 105 185
14 V18011A 4 20.5±1 20.5±1 11±0.8 32±1 36±1 80 155
15 V18011B 3 28±1 31±1 11.4±0.8 17.5±1 23.5±1 75 135
16 V18012 4 30±1 / 13±0.8 34±1 39±1 125 230
17 V18013 5 16.5±1 29.5±1 5±0.8 / / 80 165
18 V18017 4 40.5±1 / 17±1 49.8±1 / 200 350
19 V18018 3 29±1 33±1 15±0.8 15.5±1 21.5±1 55 110
20 V18019 1 19.5±1 18±1 8±0.8 35±1 5.5±1 120 175
21 V18020 3 24±1 27±1 10±0.8 13.5±1 19±1 60 110
22 V18021 1 11.7±1 10.8±1 4±0.8 21.4±1 2.6±1 90 160
23 V18031 2 15±1 14±1 6±1 23±1 / 80 160
24 V18032 1 19.5±1 18.0±1 5.0±1 35±0.8 / 190 320
25 V18033 4 19.5±1 / 8±0.8 32±1 36±1 120 175

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke

Applications:


Application: HDMI Cable, IP Line of Communication, DVI Cable, Overstriking VGA Cable etc.

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke

VIIP 15mm RFI EMI Filter Snap On Ferrite Choke

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.


(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.


(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.


(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
