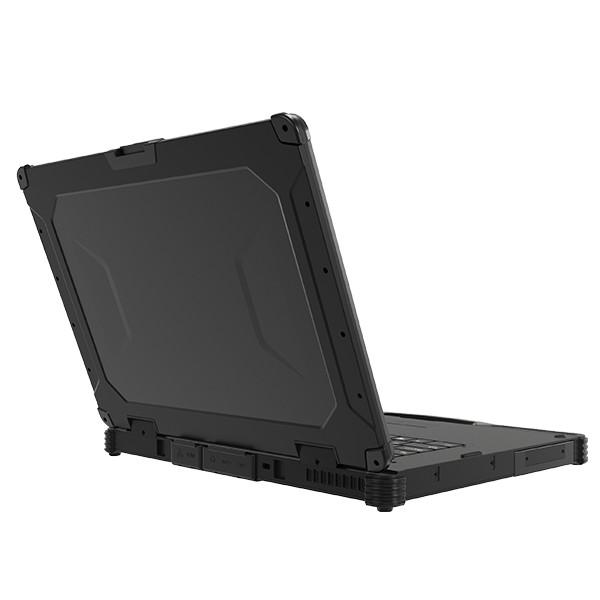

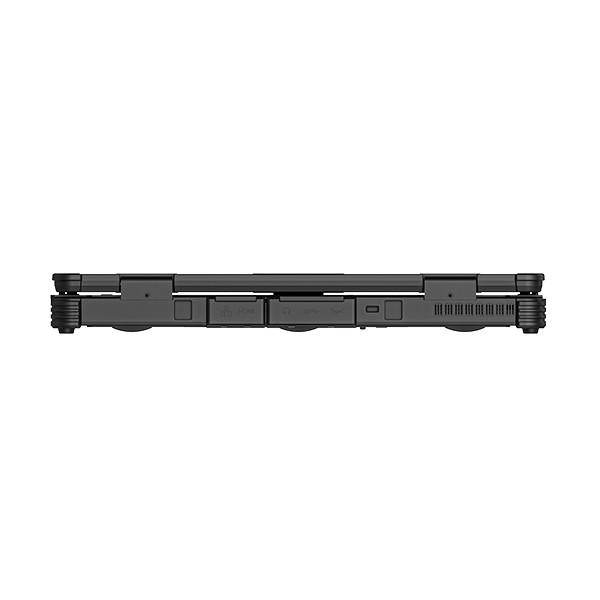

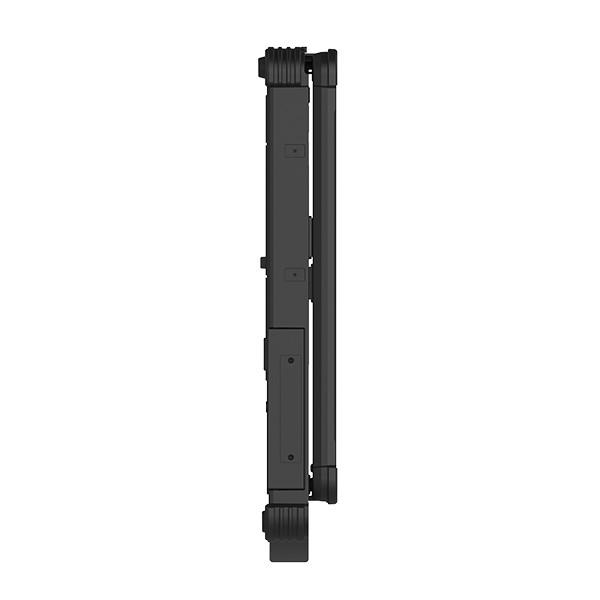

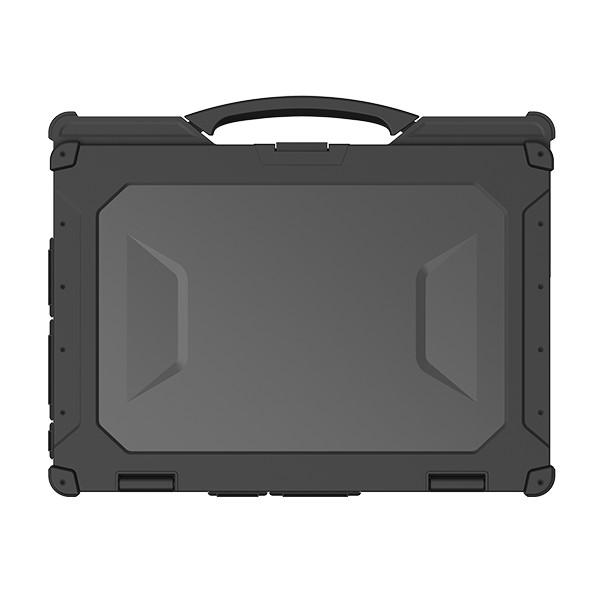

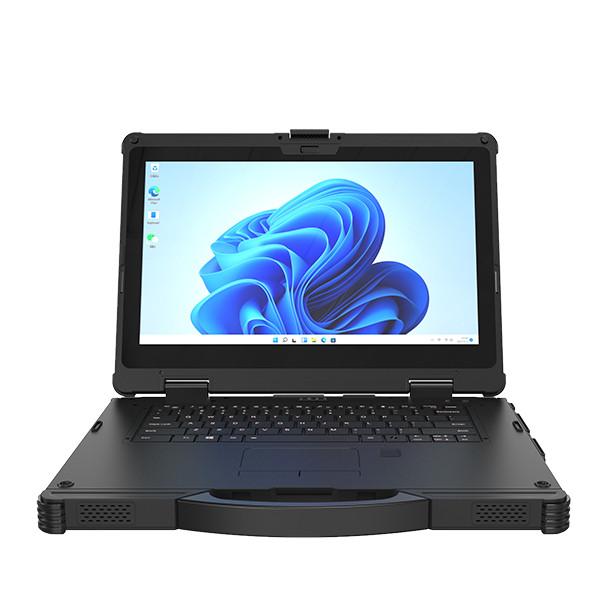

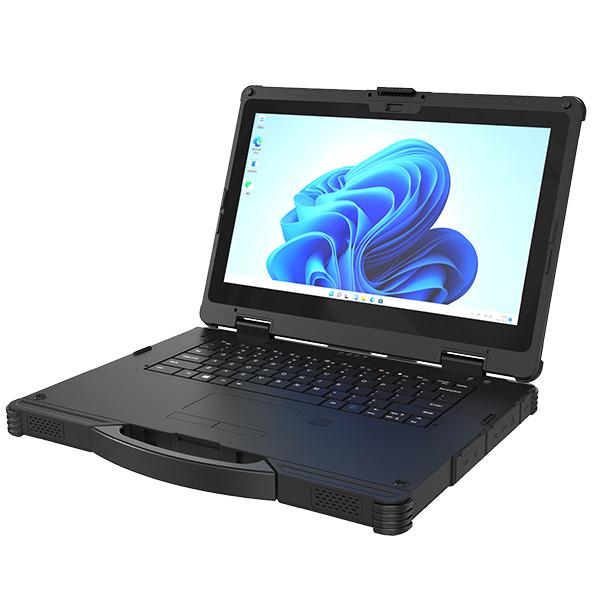

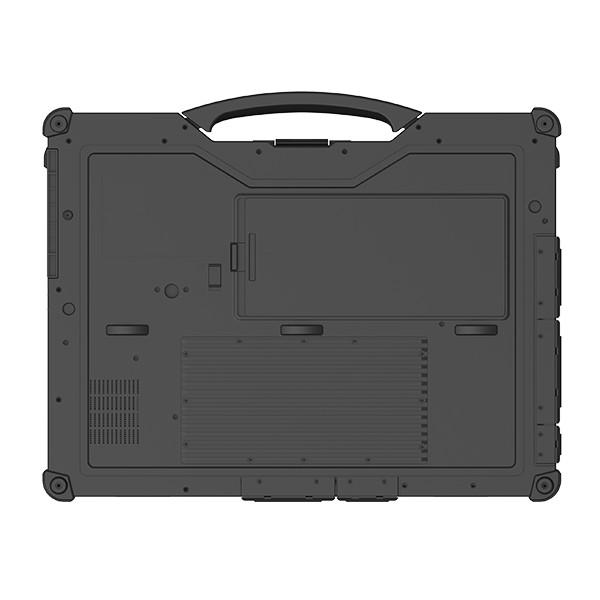

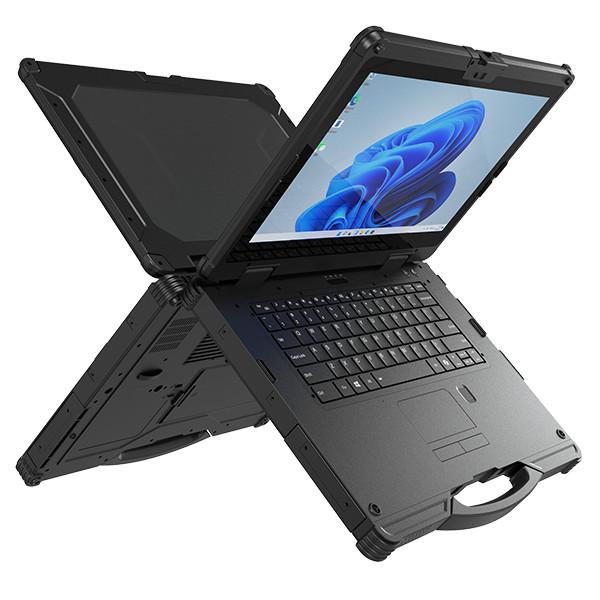

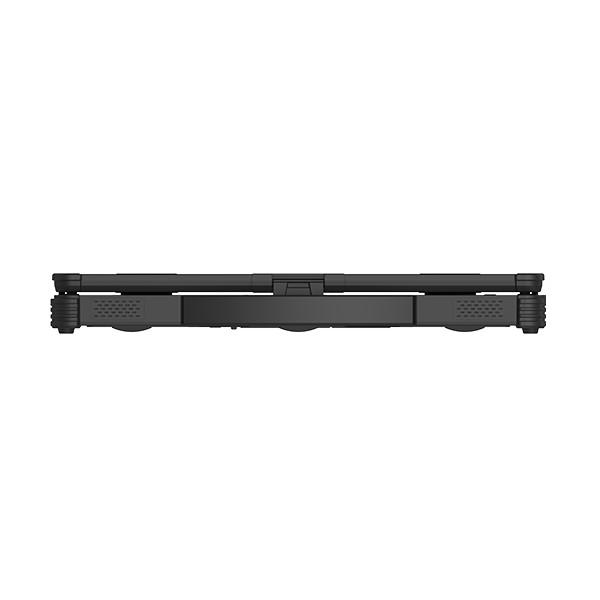

Industrial Grade EM-X14M Rugged AI PC Intelligence for Your Business

Specifications

Brand Name :

Emdoor

Model Number :

EM-X14M

Price :

Description

Product Form	14-inch Rugged Notebook
Material	ABS+PC
Dimensions	363.2287.442.1mm
Weight	TBD
Product Color	Black
CPU	Intel® Core™ Ultra 7 processor 155H 16 cores and 22 threads, up to 4.80 GHz, integrated 24 MB SmartCache, TDP 28W Optional: Intel® Core™ Ultra 5 processor 125H with 14 cores and 18 threads, up to 4.50 GHz, integrated 18 MB SmartCache, TDP 28W
GPU	iGfx/dGfx (Intel Xe LPG Graphics)
Memory	RAM 32GB DDR5 (4800MHz) Optional: 16GB DDR5 ROM 256GB SSD
SSD	Optional: 1*SSD (Expansion Slot)
Operating System	Windows 11 Pro Optional: Windows 11 Home Windows 10 IOT
Display	Type: FHD Size: 14-inch 16:9 Resolution: 1920*1080 Brightness: 1000cd/㎡
Touch Pannel	Optional 10-Point Capacitive Screen, G+G, Corning Gorilla Glass; Hardness above 7H; Scratch-resistant; Supports glove touch
Camera	Front 5.0MP
Buttons	Power Button 1 P Key 1 (one-click screen off/on) RF *1 (toggle switch, enable/disable wireless functions)
Speaker	Built in 4Ω/3W *2
Microphone	Internal MIC *1
Battery (Built in)	Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5hrs (Default 50% volume, 200 lumens brightness, playing 1080P HD video)
Battery (Hot-swappable)	Removable Polymer Lithium-ion Battery, Hot-swappable 4850mah/11.55V(56WH) 8hrs (Playing 1080P HD video, Conditions: System in balance mode, 30% brightness, 320 lumens, 30% volume (70 dB at 10cm), WiFi and Bluetooth turned off.)
WIFI	Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
Bluetooth	BT5.1 (BLE) class 1; Transmission Distance: 10m
GPS	Supports single GPS or single glonass, default GPS
NFC	Optional, NXP300
Fingerprint	Built in, ×1 SPI Fingerprint (Power-On Login)
Keyboard	US Layout Keyboard with Backlight
I/O Interfaces	USB3.2 1, USB3.0 1, USB2.0 *1
	TYPE-C, Supports Thunderbolt 4
	∮3.5mm Standard Earphone Jack *1
	HDMI 2.0a mini x1
	SIM *1
	TF *1
	RJ451 10M/100M/1000M adaptive RJ451 10M/100M/1000M adaptive (USB 2.0), Supports Gigabit Protocol
	RS232 *1, 9 fully functional lines
	DC19V/3.78A ∮5.5mm Power port *1
	12PIN Pogo Pin (USB & Charging) *1 ,Optional
	Anti-theft Lock Slot *1
	Right-side Cooling Vent *1
	Left-side expansion slot, optional M.2-2280 PCIe interface 1, supports SSD; Optional: M.2 E-KEY interface 1 for custom modules.

Camera Indicator Light	×1 Constant white light when active, light off when inactive.
Power Indicator Light	×1 Constant blue light when power on, light off when off.
Battery Indicator Light	×1 (Dual-color red/green) Red when charging, green when fully charged, blinking red for low battery, light off during discharge.
Caps Lock Key	×1 Red light on indicates caps lock on, off indicates caps lock off.
Airplane Mode Indicator Light	×1 Red light on indicates airplane mode on, off indicates airplane mode off.
Adapter	DC input 100-240VAC0.5A50/60Hz DC19V/3.78A 71.82W American Standard Optional: European Standard
Rugged Features	MIL-STD-810H: 1.2m drop resistance
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing
Certifications	IP65
	CE, UN3803, Optional FCC, CCC
	MIL-STD-810H
