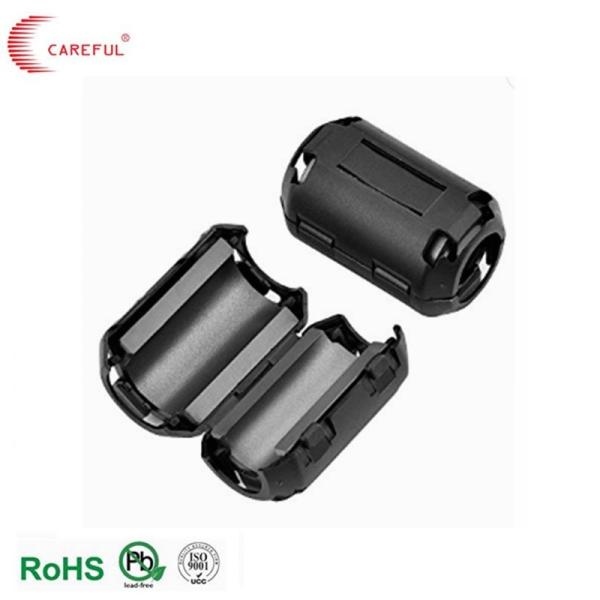

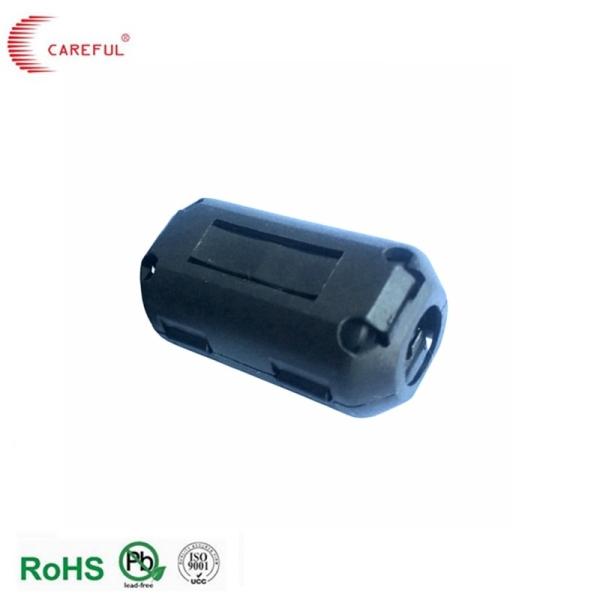

SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
Specifications
Model Number :
SCRC/SCNF Type
Place of Origin :
Zhejiang, China
Brand Name :
careful
Certification :
SGS
MOQ :
1000 pieces
Price :
$0.10-1.00/pieces
Type :
soft
Supplier Type :
factory
Application :
electronic and electrical equipment
Brand :
careful
Package Type :
carton
Operating Temperature :
<300℃
Tolerance :
20%
Package / Case :
as the customer required
Material :
Ni-Zn
MOQ :
10 PCS
Packing :
Carton
Delivery Time :
10-20 Days
Sample :
Free
Description

China factory Rohs ISO9001 Cable Clip Electronic Ferrites Split Core with different size

Products Description
Item
SCRC 90B Split Core
Place of Origin
China
Zhejiang
Brand Name
Careful
Model Number
SCRC/SCNF
Type
Soft
Composite
Ferrite Magnet
Shape
Split
Application
Industrial Magnet
Tolerance
±10%
Material
Ni-Zn Ferrite Core
Certification
ISO-9001
Features
snap-on
Usage
EMI
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size

No Specifications Fig Dimensions:mm
A B C D E
1 SCRC 30B 1 11.7±1 10.8±1 4±0.8 21.4±1 2.6±1
2 SCRC 35A 1 13±1 11.8±1 3.5±0.8 25.5±1 2.5±1
3 SCRC 35B 1 13±1 11.8±1 5±0.8 25.5±1 2.5±1
4 SCRC 50 5 16.5±1 / 5±0.8 29.5±1 /
5 SCNF 50 2 15±1 14±1 6±0.8 23.1±1 2.5±1
6 SCRC 50C 1 19.5±1 18±1 5±0.8 35±1 5.5±1
7 SCNF 65 2 17.5±1 19.5±1 6.5±0.8 32.5±1 /
8 SCRC 70A 4 15±1 14±1 7±0.8 18±1 22±1
9 SCRC 70B 1 16.5±1 15±1 7±0.8 30±1 5.5±1
10 SCRC 70C 5 20.7±1 22.2±1 7.2±0.8 39.4±1 /
11 SCRC 80A 3 19.5±1 23±1 8±0.8 17±1 23±1
12 SCRC 80B 3 19.5±1 23±1 8±0.8 19.5±1 26±1
13 SCRC 80C 1 19.5±1 18±1 8±0.8 35±1 5.5±1
14 SCRC 80F 1 19.5±1 18±1 8±1 25.5±1 4.5±1
15 SCRC 90A 4 19.5±1 / 9±0.8 32±1 35.5±1
16 SCRC 90B 1 19.5±1 18±1 9±0.8 35±1 5.5±1
17 SCRC 90C 6 15.6±1 28.3±1 8.5±1 7.5±1 6.45±0.5
18 SCNF 100 2 22±1 23.5±1 10±0.8 33±1 /
19 SCRC 110B 4 20.5±1 33±1 11.0±0.8 32±1 36±1
20 SCNF 130A 2 29±1 30±1 13±0.8 32±1 /
21 SCRC 130B 4 30±1 / 13±0.8 34±1 39±1
22 SCRC 1330B 1 23.5±1 20.5±1 13.5±0.8 36±1 10.5±1
23 SCRC 150A 3 29±1 27±1 13.5±0.8 15.5±1 21.5±1
24 SCRC 20-10-10 3 24±1 31±1 10±0.8 13.5±1 19±1
25 SCRC 24-14-11.4 3 28±1 / 11.4±0.8 17.5±1 23.5±1
26 SCFS 26x9x20.6x17.5-2.6 7 29.1±1 9±0.5 20.6±1.0 21.2±1 2.6±0.5
27 SCFS 33.5X6.8X12-1.8 7 36±1 9.4±0.8 28±1 14.8±1 2±0.4
28 SCFS 35X10X28X15-1.6 7 37.9±1 12.5±0.8 28±1 18±1 2±0.4
29 SCFS 51.5×10×44×15-1.6 7 54±1.5 13.1±0.5 44±1 18.4±1.5 1.6±0.4
30 SCNF 190 2 29±1 29.5±1 19.5±1 42±1 /
31 SCRC 65A 1 17.8±0.4 36.6±0.6 16.8±0.4 8.3±0.3 3±0.3
32 SCRC 65C 8 19±0.4 52.5±0.8 19.5±0.4 7.2±0.3 3.6±0.3
33 SCNF 80D 2 22±1 23.5±1 10±0.8 33±1 19±0.6
34 SCRC 90D 9 19.5±1 32±1 9±1 9±0.5 7.8±0.5
35 SCRC 90F 1 19.7±0.4 17.4±0.4 9±1 39.6±0.6 ■
36 SCRC 90G 1 19.5±1 18±1 9±1 25.5±1 4.5±1
37 SCNF 110 2 25±0.5 32.5±0.6 23±0.5 10±0.4 /
38 SCRC 140A 10 31.6±0.6 40.81±0.7 14.7±0.4 / /
39 SCRC 160A 12 32.2±0.6 33.7±0.2 16.2±0.2 40.05±0.2 /
40 SCRC 185A 13 37.7±2 37.7±0.6 19.2±0.4 / /
41 SCNF 190B 2 29±1 29.5±1 19.5±0.8 42±1 /
42 SCRC 25-12-15 3 29±1 33±1 15±0.8 15.5±1 21.5±1
43 SCRC 24-14-11.4 3 28±1 31±1 11.4±0.8 17.5±1 23.5±1
44 SCRC 200 10 40.2±0.25 46.55±0.25 21.3±0.25 / /
45 SCRC 270A 15 41.8±0.25 45.1±0.25 27.2±0.25 18.4±0.25 /
46 SCRC 230A 15 41±0.2 41±0.2 23±0.25 16.9±0.2 /
47 SCRC 190C 11 30.9±1 36.9±1 20.7±1 / /
48 SCRC 170B 10 42±1 50±1 20±1 / /
49 SCRC 250A 4 40.5±0.2 41±0.2 25±0.2 35.9±0.2 43.3±0.2
50 SCRC 260 14 56±2 42.9±2 24.3±1.5 27.2±1.5 /

SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
Company Profile
SCRC 90B Cable Clip Electronic Ferrites Split Core With Different Size
Huzhou Careful Magnetism Co., Ltd. is a technically leading corporation, integrating production, management, research, development and service. Our company was established in 2001, formally known as Huzhou Cifeng Industry Corporation - a key enterprise in Huzhou City. Our company was assessed as "High and New Technology Enterprise in Zhejiang Province". We have more than 20 years of experience in the field, as our boom development, now we own 3 factoies to service more and more clinets.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2001, sell to Domestic Market(60.00%), Eastern Europe(10.00%), South Asia(5.00%), Eastern Asia(5.00%), North America(5.00%), Northern Europe(4.00%), South America(3.00%), Southern Europe(3.00%), Western Europe(2.00%), Oceania(1.00%), Central America(1.00%), Southeast Asia(1.00%). There are total about 1000+ people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3.What can you buy from us?
Soft Ferrite Core, Amorphous core, Inductors, NiZn ferrite.

4. Why should you buy from us not from other suppliers?
We are the biggest manufacture of ferrite core in China for more than 30 years, also with production line of Amorphous core, SMD core, inductors for years. We are already the supplier of Microsoft, GREE, Midea, SAMSUNG, ASUS, Panasonic, etc.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Escrow; Language Spoken: English, Chinese.
