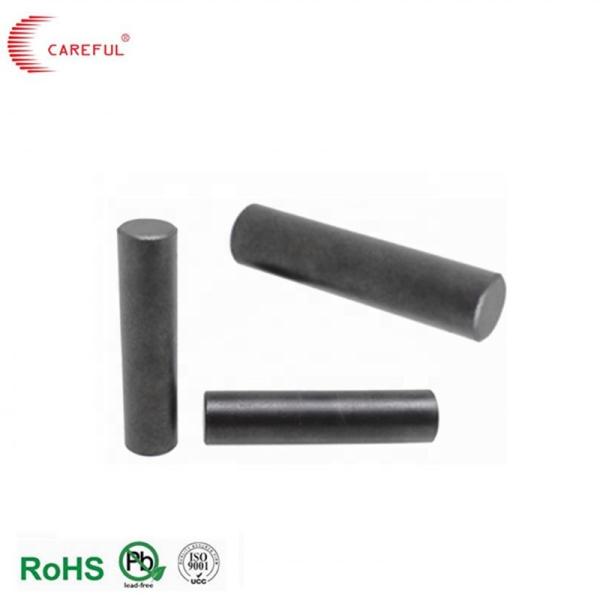

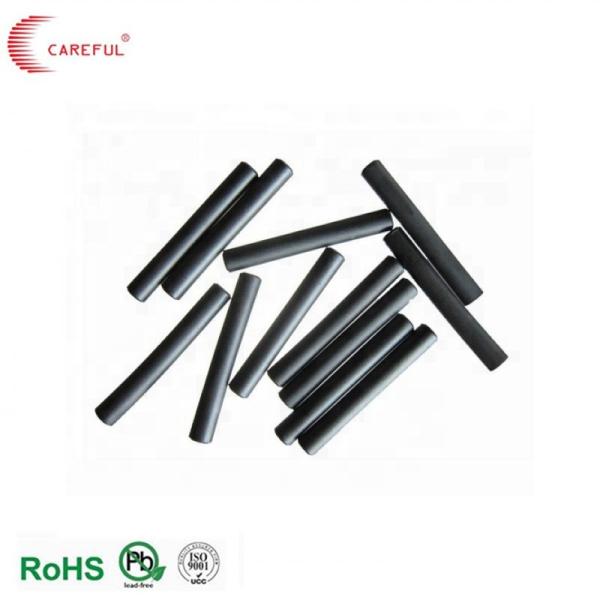

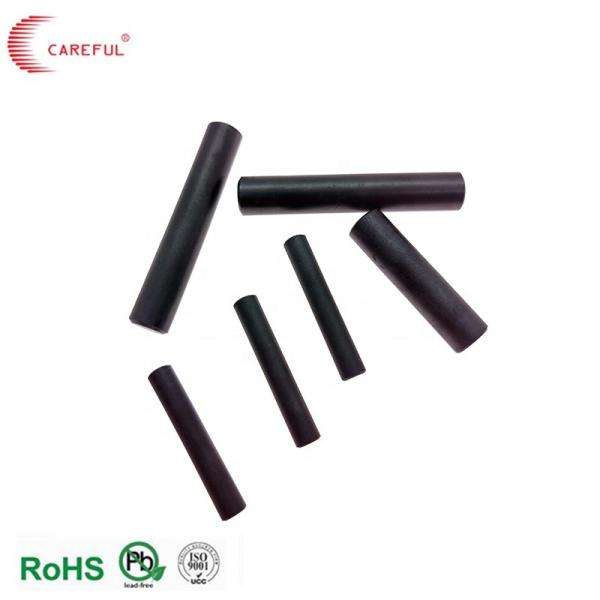

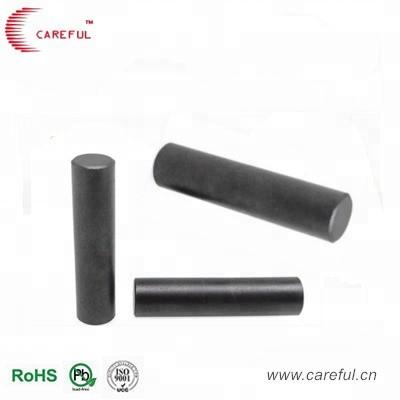

10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
Specifications
Model Number :
R6*20
Place of Origin :
Zhejiang, China
Brand Name :
Careful
Certification :
ISO 9001: 2015 ROHS REACH
MOQ :
100000 pieces
Price :
$0.02/pieces
Type :
Soft
Supplier Type :
Factory direct sale
Application :
Electronic and electrical equipment
Brand :
Careful
Package Type :
Carton
Operating Temperature :
<300℃
Tolerance :
20%
Package / Case :
As the customer required
Material :
NiZn
Usage :
Choke coil
Frequency :
0.1-500mhz
Description
Careful direct sales R6*20 Factory price 10pcs free samples NiZn material high quality soft ferrite core NiZn ferrite rod
Products Description
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
Item
Value
Place of Origin
China
Zhejiang
Brand Name
Careful
Model Number
R type
Type
Soft
Composite
Ferrite Magnet
Shape
Bar
Application
Industrial Magnet
Tolerance
±10%
Certification
ISO9001:2015;ROHS;REACH
Usage
Choke coil
Frequency
0.1-500mhz
Material
NiZn Ferrite Core

RH Specifications Dimensions:mm
A B C
10×17.5×5 10±0.4 17.5±0.5 5±0.4
10×20×4.2 10±0.4 20±0.5 4.2±0.4
10×20×5 10±0.4 20±0.5 5±0.4
10×20×5.5 10±0.4 20±0.5 5.5±0.4
10×20×6 10±0.4 20±0.5 6±0.4
10×20×6.35 10±0.4 20±0.5 6.35±0.4
10×20×6.5 10±0.4 20±0.5 6.5±0.3
10×23×5 10±0.4 23±0.5 5±0.3
10×23×6.5 10±0.4 23±0.5 6.5±0.3
10×25×5.5 10±0.4 25±0.6 5.5±0.4
10.1×11.5×6.5 10.1±0.4 11.5±0.4 6.5±0.3
10.1×13.5×6.35 10.1±0.4 13.5±0.4 6.35±0.3
10.3×11.5×5 10.3±0.4 11.5±0.5 5±0.4
10.5×12×5.5 10.5±0.4 12±0.5 5.5±0.4
10.5×13.5×6.5 10.5±0.4 13.5±0.5 6.5±0.4
10.5×14×6 10.5±0.4 14±0.5 6±0.4
10.5×14×7.3 10.5±0.4 14±0.5 7.3±0.4
10.5×15×5.6 10.5±0.4 15±0.5 5.6±0.4
10.5×15×6.5 10.5±0.4 15±0.4 6.5±0.3
10.5×15×7.3 10.5±0.4 15±0.5 7.3±0.4
10.5×20×5.5 10.5±0.4 20±0.5 5.5±0.4
10.5×20×6 10.5±0.4 20±0.5 6±0.4
10.5×20×6.5 10.5±0.4 20±0.5 6.5±0.4
10.5×20×7.3 10.5±0.4 20±0.5 7.3±0.4
10.5×25×5.6 10.5±0.4 25±0.5 5.6±0.3
10.5×25×6.5 10.5±0.4 25±0.5 6.5±0.3
10.5×28.5×5.5 10.5±0.4 28.5±0.7 5.5±0.4
10.5×30×6.5 10.5±0.4 30±0.6 6.5±0.4
11×13×7.5 11±0.4 13±0.4 7.5±0.3
11×20×5 11±0.5 20±0.5 5±0.4
11×25×5 11±0.5 25±0.6 5±0.4
11×30×5 11±0.4 30±0.6 5±0.3
11.5×18.5×5 11.5±0.5 18.5±0.5 5±0.4
11.5×19.5×5.6 11.5±0.4 19.5±0.4 5.6±0.3
11.5×20×5 11.5±0.5 20±0.5 5±0.4
11.5×20.5×5 11.5±0.4 20.5±0.5 5±0.3
11.5×23×5.2 11.5±0.4 23±0.5 5.2±0.3
11.5×25×5 11.5±0.5 25±0.6 5±0.4
11.5×30×5 11.5±0.5 30±0.6 5±0.4
11.8×15×5 11.8±0.4 15±0.4 5±0.3
11.8×15×7.3 11.8±0.5 15±0.5 7.3±0.4
11.8×15×7.5 11.8±0.4 15±0.4 7.5±0.3
11.8×20×5 11.8±0.4 20±0.5 5±0.3
12×12.5×8.5 12±0.5 12.5±0.5 8.5±0.4
12×12.7×5.6 12±0.4 12.7±0.4 5.6±0.3
12×12.7×6 12±0.5 12.7±0.5 6±0.4
12×12.7×6.5 12±0.5 12.7±0.5 6.5±0.4
12×13×8 12±0.5 13±0.5 8±0.4
12×13.8×6.5 12±0.4 13.8±0.4 6.5±0.3
12×14×6 12±0.4 14±0.4 6±0.3
12×15×5.5 12±0.5 15±0.5 5.5±0.4
12×15.5×5.6 12±0.5 15.5±0.5 5.6±0.4
12×15×6.5 12±0.5 15±0.5 6.5±0.4
12×15×7.3 12±0.5 15±0.5 7.3±0.4
12×15×8 12±0.5 15±0.5 8±0.4
12×15×8.5 12±0.5 15±0.5 8.5±0.5
12×15.5×8 12±0.4 15.5±0.4 8±0.3
12×16.5×6.5 12±0.5 16.5±0.5 6.5±0.4
12×16×8.5 12±0.4 16±0.4 8.5±0.3
12×17.5×6.5 12±0.5 17.5±0.6 6.5±0.4
12×19×5.6 12±0.5 19±0.6 5.6±0.4
12×20×3.5 12±0.5 20±0.6 3.5±0.4
12×20×3.6 12±0.5 20±0.6 3.6±0.4
12×20×4 12±0.5 20±0.5 4±0.4
12×20×4.5 12±0.5 20±0.5 4.5±0.4
12×20×5 12±0.5 20±0.5 5±0.4
12×20×5.2 12±0.4 20±0.5 5.2±0.3
12×20×5.6 12±0.5 20±0.5 5.6±0.4
12×20×5.8 12±0.4 20±0.5 5.8±0.3
12×20×6 12±0.5 20±0.5 6±0.4
12×20×6.5 12±0.5 20±0.5 6.5±0.4
12×20×7 12±0.4 20±0.5 7±0.3
12×20×7.3 12±0.5 20±0.5 7.3±0.4
12×20×8.5 12±0.5 20±0.5 8.5±0.4
12×21×6.5 12±0.4 21±0.5 6.5±0.3
12×22×5.6 12±0.4 22±0.5 5.6±0.3
12×23×3.5 12±0.5 23±0.6 3.5±0.4
12×23×4.5 12±0.5 23±0.6 4.5±0.4
12×23×5.6 12±0.5 23±0.6 5.6±0.4
12×23×6.5 12±0.5 23±0.6 6.5±0.4
12×23×7.9 12±0.5 23±0.6 7.9±0.4
12×24.5×5.6 12±0.5 24.5±0.6 5.6±0.4
12×25×3.5 12±0.4 25±0.5 3.5±0.3
12×25×4.5 12±0.4 25±0.5 4.5±0.3
12×25×5.6 12±0.5 25±0.6 5.6±0.4
12×25×6.4 12±0.4 25±0.5 6.4±0.3
12×25×6.5 12±0.4 25±0.5 6.5±0.3
12×25×7.3 12±0.5 25±0.6 7.3±0.4
12×25.4×5.2 12±0.5 25.4±0.6 5.2±0.4
12×25.4×6.5 12±0.4 25.4±0.5 6.5±0.3
12×25.5×5.6 12±0.4 25.5±0.5 5.6±0.3
12×26×4.5 12±0.4 26±0.5 4.5±0.3
12×26×7.3 12±0.5 26±0.7 7.3±0.4
12×27×7.9 12±0.4 27±0.5 7.9±0.3
12×28.5×5.6 12±0.5 28.5±0.7 5.6±0.4
12×28.5×6.5 12±0.5 28.5±0.7 6.5±0.4
12×28.5×8 12±0.5 28.5±0.7 8±0.4
12×30×5 12±0.5 30±1 5±0.4
RH Specifications Dimensions:mm
A B C
12×30×5.6 12±0.5 30±1 5.6±0.4
12×30×8 12±0.4 30±0.6 8±0.3
12×32×6 12±0.4 32±0.6 6±0.3
12×40×6 12±0.5 40±0.7 6±0.4
12.1×15.5×7.3 12.1±0.5 15.5±0.5 7.3±0.4
12.2×27×7.9 12.2±0.5 27±0.7 7.9±0.4
12.2×28.5×7.9 12.2±0.5 28.5±0.7 7.9±0.4
12.3×12.5×5 12.3±0.5 12.5±0.5 5±0.4
12.3×12.8×5 12.3±0.4 12.8±0.4 5±0.3
12.3×25.4×4.9 12.3±0.4 25.4±0.5 4.9±0.3
12.35×12.7×5 12.35±0.4 12.7±0.4 5±0.3
12.5×12.7×5 12.5±0.4 12.7±0.4 5±0.3
12.5×15×8 12.5±0.5 15±0.6 8±0.4
12.5×16×6.7 12.5±0.4 16±0.4 6.7±0.3
12.5×20×8 12.5±0.5 20±0.6 8±0.4
12.7×15×7.9 12.7±0.5 15±0.6 7.9±0.4
12.7×16.7×7 12.7±0.5 16.7±0.6 7±0.4
12.7×16.5×7.9 12.7±0.5 16.5±0.6 7.9±0.4
12.7×17×7.9 12.7±0.4 17±0.4 7.9±0.3
12.7×18×8 12.7±0.5 18±0.6 8±0.4
12.7×25×7.9 12.7±0.4 25±0.5 7.9±0.3
12.7×25.4×7.9 12.7±0.5 25.4±0.6 7.9±0.4
12.8×15×8.4 12.8±0.5 15±0.5 8.4±0.4
13×15×7 13±0.5 15±0.4 7±0.3
13×20×5 13±0.5 20±0.6 5±0.4
13×28×8 13±0.5 28±0.7 8±0.4
14×15×5.6 14±0.4 15±0.4 5.6±0.3
14×15×7 14±0.5 15±0.5 7±0.4
14×15×9 14±0.5 15±0.5 9±0.5
14×15×10 14±0.5 15±0.5 10±0.5
14×16×10 14±0.4 16±0.4 10±0.4
14×17.5×6.5 14±0.4 17.5±0.4 6.5±0.3
14×18×10 14±0.5 18±0.6 10±0.5
14×22×10 14±0.5 22±0.6 10±0.5
14×24×3.8 14±0.4 24±0.5 3.8±0.3
14.2×15×6.7 14.2±0.5 15±0.5 6.7±0.4
14.2×15×7.2 14.2±0.5 15±0.5 7.2±0.4
14.2×15×8 14.2±0.5 15±0.5 8±0.4
14.2×15×9 14.2±0.5 15±0.5 9±0.5
14.2×15×10 14.2±0.4 15±0.4 10±0.4
14.2×15.6×6.35 14.2±0.4 15.6±0.4 6.35±0.3
14.2×18×6.35 14.2±0.4 18±0.4 6.35±0.3
14.2×18×6.5 14.2±0.5 18±0.5 6.5±0.4
14.2×18×10 14.2±0.4 18±0.4 10±0.4
14.2×19×6.35 14.2±0.4 19±0.4 6.35±0.3
14.2×20×6.35 14.2±0.5 20±0.5 6.35±0.4
14.2×20×7.2 14.2±0.5 20±0.5 7.2±0.4
14.2×20×9 14.2±0.4 20±0.5 9±0.3
14.2×20×10 14.2±0.4 20±0.5 10±0.4
14.2×23×8.2 14.2±0.4 23±0.5 8.2±0.3
14.2×23×7.5 14.2±0.5 23±0.6 7.5±0.4
14.2×23.5×6.7 14.2±0.5 23.5±0.6 6.7±0.4
14.2×23.5×8 14.2±0.5 23.5±0.6 8±0.4
14.2×23.5×9 14.2±0.4 23.5±0.5 9±0.3
14.2×24×6.35 14.2±0.4 24±0.5 6.35±0.3
14.2×24×9 14.2±0.5 24±0.6 9±0.5
14×24×9.5 14±0.5 24±0.6 9.5±0.5
14.2×25×7 14.2±0.4 25±0.5 7±0.3
14.2×25×7.5 14.2±0.5 25±0.6 7.5±0.4
14.2×25×8 14.2±0.5 25±0.6 8±0.4
14.2×25.5×6.35 14.2±0.4 25.5±0.5 6.35±0.3
14.2×25.5×9.5 14.2±0.5 25.5±0.6 9.5±0.5
14.2×26×6.35 14.2±0.4 26±0.5 6.35±0.3
14.2×28.5×4.5 14.2±0.5 28.5±0.7 4.5±0.4
14.2×28.5×5 14.2±0.4 28.5±0.5 5±0.3
14.2×28.5×5.2 14.2±0.4 28.5±0.5 5.2±0.3
14.2×28.5×5.5 14.2±0.5 28.5±0.7 5.5±0.4
14.2×28.5×6.35 14.2±0.5 28.5±0.7 6.35±0.4
14.2×28.5×7 14.2±0.5 28.5±0.7 7±0.4
14.2×28.5×7.2 14.2±0.5 28.5±0.7 7.2±0.4
14.2×28.5×8 14.2±0.5 28.5±0.7 8±0.4
14.2×28.5×8.3 14.2±0.5 28.5±0.7 8.3±0.4
14.2×28.5×9 14.2±0.5 28.5±0.7 9±0.5
14.2×28.5×9.5 14.2±0.5 28.5±0.7 9.5±0.5
14.2×28.5×10 14.2±0.5 28.5±0.7 10±0.5
14.2×30×8 14.2±0.5 30±1.0 8±0.4
15×35×5.9 15±0.5 35±1.0 5.9±0.4
15.5×19×7.3 15.5±0.4 19±0.4 7.3±0.3
15.5×28.5×7.3 15.5±0.5 28.5±0.7 7.3±0.4
15.7×27×9 15.7±0.5 27±0.7 9±0.5
15.88×25.6×7.86 15.88±0.5 25.6±0.7 7.86±0.4
16×17×8 16±0.5 17±0.5 8±0.4
16×17×9 16±0.5 17±0.5 9±0.5
16×17×10 16±0.5 17±0.5 10±0.5
16×17.3×4.5 16±0.4 17.3±0.4 4.5±0.3
16×17.5×4.3 16±0.5 17.5±0.5 4.3±0.4
16×18×8 16±0.4 18±0.4 8±0.3
16×20×5 16±0.4 20±0.5 5±0.3
16×20×7 16±0.4 20±0.5 7±0.3
16×20×8 16±0.5 20±0.5 8±0.4
16×20×9 16±0.5 20±0.5 9±0.5
16×20×10 16±0.4 20±0.5 10±0.4
16×22×10 16±0.4 22±0.5 10±0.4
16×24×7 16±0.4 24±0.5 7±0.3
16×24×9.5 16±0.4 24±0.5 9.5±0.4
16×25×5 16±0.4 25±0.5 5±0.3
16×25×7 16±0.4 25±0.5 7±0.3
16×25×8.2 16±0.4 25±0.5 8.2±0.3

10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
Company Profile
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
Huzhou Careful Magnetism Co., Ltd. is a technically leading corporation, integrating production, management, research, development and service. Our company was established in 2001, formally known as Huzhou Cifeng Industry Corporation - a key enterprise in Huzhou City. Our company was assessed as "High and New Technology Enterprise in Zhejiang Province". We have more than 20 years of experience in the field, as our boom development, now we own 3 factoies to service more and more clinets.
Our company has over 1000 staff members, including 120 management and technology members. Our company has established a technological center. We have automatic magnetic material examination equipment at international level and the most advanced production line in our country. Our company mainly manufactures EMI and DY Magnetic cores with 2 categories and 300 specifications.
Since the establishment, Careful has gradually set up a complete quality control system and got ISO9001 certification. As to quality management, our company continuously improves management and product quality in order to satisfy customers' needs.
Due to excellent quality, our market occupation rate is increasing steadily, and the sales amount increases by 100% year by year. Our company has won a good reputation among customers and become an excellent supplier for many companies.
"To pursue the perfection of details, the efficiency of execution" is our slogan. Careful people will work hard with friends from at home and abroad to create a bright future.

Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Who are we?
We are based in Zhejiang, China, start from 2001, sell to Domestic Market(60.00%), Eastern Europe(10.00%), South Asia(5.00%), Eastern Asia(5.00%), North America(5.00%), Northern Europe(4.00%), South America(3.00%), Southern Europe(3.00%),Western Europe(2.00%),Oceania(1.00%),Central America(1.00%), Southeast Asia(1.00%). There are total about 1000+ people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3.What can you buy from us?
Soft Ferrite Core, Amorphous core, Inductors, NiZn ferrite.

4. Why should you buy from us not from other suppliers?
We are the biggest manufacture of ferrite core in China for more than 30 years, also with production line of Amorphous core, SMD core, inductors for years. We are already the supplier of Microsoft, GREE, Midea, SAMSUNG, ASUS, Panasonic, etc.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, PayPal, Western Union, Escrow; Language Spoken: English, Chinese.
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
Send your message to this supplier
Send Now

10pcs Free Samples NiZn Material Soft Ferrite Core R6*20

Ask Latest Price
Product Detail
Model Number :
R6*20
Place of Origin :
Zhejiang, China
Brand Name :
Careful
Certification :
ISO 9001: 2015 ROHS REACH
MOQ :
100000 pieces
Price :
$0.02/pieces
Contact Supplier
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20
10pcs Free Samples NiZn Material Soft Ferrite Core R6*20

Hangzhou Kefeng Electronics Co., LTD

Verified Supplier
1 Years
zhejiang, hangzhou
Since 1987
Business Type :
Manufacturer, Distributor/Wholesaler, Agent, Importer, Exporter, Trading Company, Seller
Main Products :
EMI Suppression Core, Split Core, Transformer Core
Total Annual :
25000000-30000000
Employee Number :
>300
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Ferrite Rod
MachineU China Products
Contact Supplier
Submit Requirement
