YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

250V 10A EMI EMC Power filter with one-stage excellent attenuation

Technical Specification:

Item Single Phase Power Line Filter
Model YB12D1-3A-W
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 500VDC
Line to Ground 2250VDC
Maximum Leakage Current 2uA/60HZ, 5uA/50HZ

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests

-- Customized products according to customer's requirements.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Building automation

-- Office automation and datacom equipment

Filter Selection Table:

Part No. Case Rated Currents (A) Output Connections
YB12D1-3A D1 3 Fast-on terminal
YB12D1-6A D1 6
YB12D1-10A D1 10 M4 screw
YB12D1-15A D1 15
YB12D-20A D1 20 Wire lead

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment*Q: Fast-on 6.35x0.8mm YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment S: Screw lug YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment W: UL1015 18awg

Electrical Schematic:

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

Mechanical Dimension(Unit: mm)

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

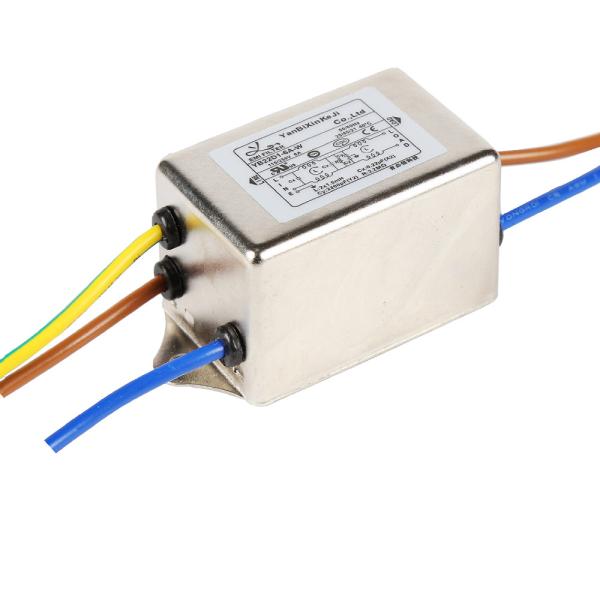

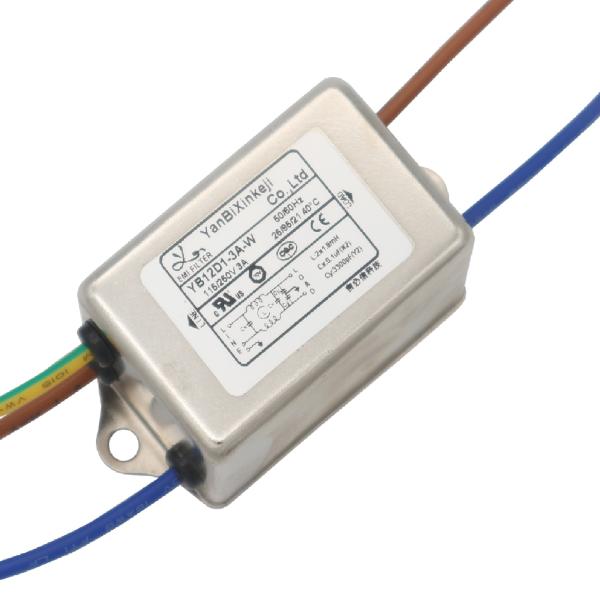

YB12D1-3A-W EMI Filter Picture:

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment


Insertion loss table(In 50ohm system according IEC/CISPR No.17)

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

Package Specification:

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

Shipment:

---Shipping terms: DHL, UPS, FedEx, TNT, EMS

---Port is Shenzhen or as requests.

Factory Pictures:

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

YB12D1 3A Wire Lead EMI Filter Single Phase Power Line Filter For Electromechanical Equipment

Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744

Our Advantages:

  • We are a listed company. NO:667344, brand guarantee, reliable quality
  • We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
  • We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
  • Free EMC rectification technical support and provide free test samples
  • Automation technology, scale production, excellent price
  • Good service, fast delivery!
  • After-sales service: free replacement within three months, free maintenance within 6 years, life-long maintenance
  • Cooperate with the top scientific research laboratory
  • We have a professional R&D team
