Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter
Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter
Specifications
Brand Name :
YBX
Model Number :
YB11A1-3A-Q
Certification :
cUL, TUV, CQC, CE, ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500000 Piece/Pieces per Month
Delivery Time :
15-25 days
Packaging Details :
56.5*28.5*22.5cm(one box)
Product Name :
A Series IEC C14 Inlet Filter
Current :
1A 3A 6A 8A 10A
Voltage :
115V/250V
Rated Impedance :
50Ω
Case :
Metal case
Line to Line :
1450VDC
Line to Ground :
2000VAC
Certificate :
ISO9001:2008 cUL TUV CQC CE ROHS
Description

IEC Inlet Filters For A Variety Of Power Entry Needs

Yanbixin's multi function inlet filter provides an electromagnetic interference solution for a variety of power input needs. Each series supports several different configurations to meet market needs. Our parts ensure susceptibility control and emissions compliance.

YB11A1-3A-Q is a cost-effective medium performance power inlet filter. Rated voltage is 110V-250V, optional current range: 1A-10A.. Enhanced two element circuit provides medium attenuation to 30MHz.

Features Of IEC C14 Inlet Filter:

1. Excellent performance/compact structure

2. Optional medical versions((R5) type)

3. Quick connect(6.35*0.8mm),solder or wire

4. High performance and high attenuation power filters with IEC 320 socket

5. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.

6. There are a variety of parts and combinations to meet different customer's EMC tests.

Typical Applications:

-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

Inlet Filter Parameters:

Item IEC Inlet Filter
Model YB11A1-3A-Q
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 125VAC 250VAC
Rated Current 1A 3A 6A 8A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 500pcs
Price USD1~2/Meter
Lead Time 5~15 weekday

Naming Rule:

YB 11 A4 - 10A - S
| | | | |
Single Phase Circuit Dimension Current Output Connection
11:11 circuit A4 3A :3 amp Q:fast-on tab 250
6A :6 amp W:wire
10A :10 amp S:Solder Lug Terminals

Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter*Q: Fast-on 6.35x0.8mm Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter S: solder 4.0x0.8mm Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter W: UL1015 18awg

Filter Selection Table:

Part No. Case Rated Currents (A) Output Connections
YB11A1 A1 1 Fast-on terminal
YB11A1 A1 3
YB11A1 A1 6 Wire
YB11A1 A1 8
YB11A1 A1 10

Solder Lug Terminals

Electrical Schematic:

Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter

Mechanical Dimension(Unit: mm)

Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter

Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter

Case A B C D E F G H I J K L M N
A1 58 28.5 21 50 40 22.4 12.7 11.8 13.5 3.2 6.35*0.8
A2 58 28.5 21 52 40 25 12.7 11.8 13.5 3.2 6.35*0.8
Tolerances
 ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15

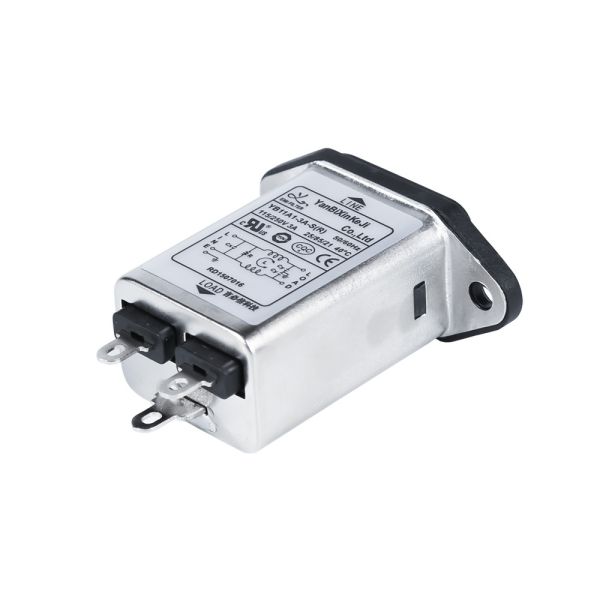

YB11A1-3A-S IEC Inlet Filter Picture:

Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter

Multi-Function EMI Inlet Filters 110V/250V 3A Low Leakage Current Socket IEC Noise Filter
