10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter
10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter
10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter
10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter
Specifications
Brand Name :
YBX
Model Number :
YB11C1-10A-Q
Certification :
cUL, TUV, CQC, CE, ROHS,CB
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500000 Piece/Pieces per Month
Delivery Time :
15-25 days
Packaging Details :
56.5*28.5*22.5cm(one box)
Product Name :
C1 Power Entry Modules Filter
Output Frequency :
50/60Hz
Frequency Band :
150KHz-30MHz
Current :
1A ~10A
Voltage :
115V/250V
Leakage Current :
≤0.5mA
Line to Line :
1450VDC
Line to Ground :
2000VAC
Description

Power Entry Modules Multi-Function Inlet Filters

Power input module filters comply with international standards and include fuses, voltage selectors, switches and filtering options. The selection of a power input module family simplifies the mechanical design, with an internal filter circuit for efficient filtering performance. With dozens of different combinations of power input functions, these modules provide a cost-effective solution to the power input needs of many systems.

YB11C1-10A-Q is the Power Entry Modules Filter, its components include IEC socket, switch, fuse, filter circuit, metal shell five parts

Suitable for a variety of power input systems, rated voltage 115V-250V, current optional range: 1A,3A,6A,8A,10A. In addition, we can also customize the medical specifications (R5) of the filter, in line with the medical equipment low leakage current standards.

YB11C1 Filter Features:

1. IEC socket mounting from front side

2.(R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

3. There are a variety of parts and combinations to meet different customer's EMC tests

4. Customized products according to customer's requirements

Typical Applications:

1. Portable electrical and electronic equipment;

2. Medical equipment;

3. Test and measurement equipment;

4. Small and medium-sized machines and household equipment

5. Single-phase power supply,switch-mode power supply

Technical Specification:

Item Power Input Module Filter
Model YB11C1-10A-Q
Transfer Function Low Pass
Package Type Surface Mount
Frequency Band 150KHz-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115VAC/250VAC
Rated Current 1A 3A 6A 8A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 100pcs
Price USD2~6.3/Meter
Lead Time 5~15 weekday

Naming Rule:

YB 11 C1 - 10A - Q
| | | | |
Single Phase Circuit Dimension Current Output Connection
11:11 circuit C1: one fuse 6A :6 amp Q:fast-on tab 250
C2: dobule fuse 8A :8 amp W:wire
10A :10 amp S:Solder Lug Terminals


10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter*Q: Fast-on 6.35x0.8mm 10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter S: solder 4.0x0.8mm 10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter W: UL1015 18awg

Filter Selection Table:

Part No. Case Rated Currents (A) Output Connections
YB11C1 C1 1 Fast-on terminal
YB11C1 C1 3
YB11C1 C1 6 Wire
YB11C1 C1 8
YB11C1 C1 10 Solder Lug Terminals

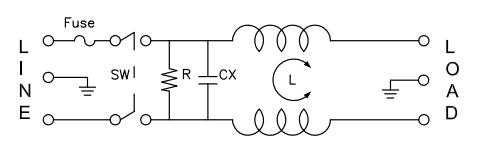

Electrical schematic:

10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter

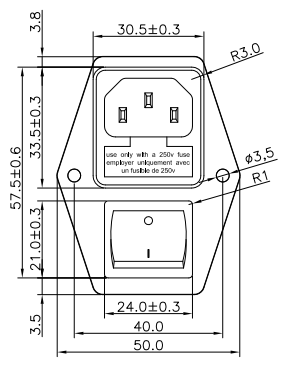

Mechanical Dimension(Unit: mm)

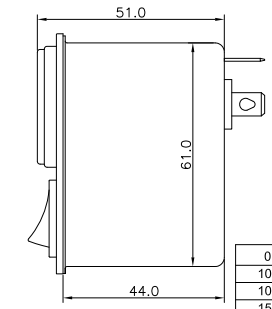

10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter

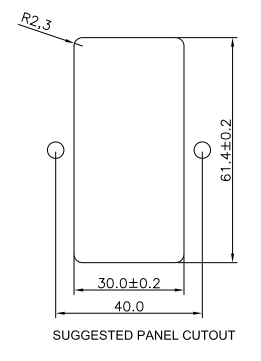

10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter

Case A B C D E F G H I J K L
C1/C2 62 61 29.5 50 40 65 11 11 17 3.5 6.3*0.8 46.0
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15 ±0.15

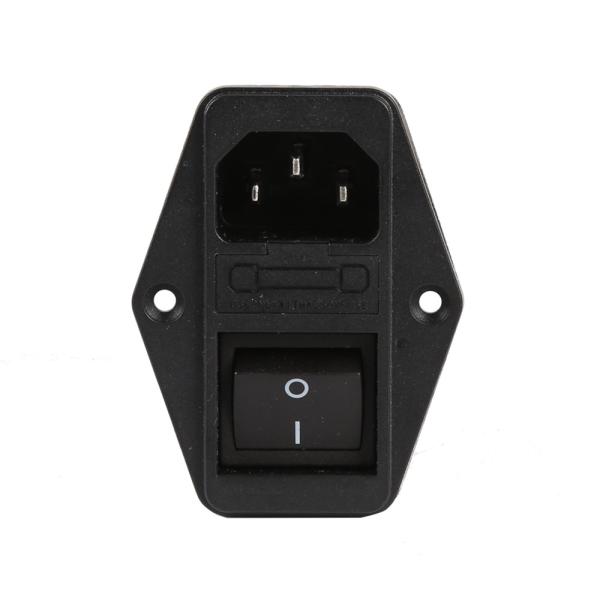

YB11C1-10A-Q Filter Picture:

10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter

10A Power Entry Modules Filter IEC C14 With Switch And Fues Power Inlet Filter
