Dual-stage EMC/EMI Single Phase Filter 250V Power Line Filter With High Attenuation

Dual-stage EMI Filter:

YB21D4-20A-S(R) is the Dual-stage EMI Filter. Its connection mode is M4 Screw. The maximum rated current up to 30 amps are designed with both common mode and differential mode performing high noise suppression,two-stage filtering,good filtering effect.Typical applications include Electrical and electronic equipment, Household equipment, Automation equipment, Fitness machine, and Medical equipment.

Filter Selection Table:

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Naming Rule:

Features Of EMI Filter:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device;

-- Various terminal options allow you to select;

-- There are a variety of parts and combinations to meet different customer's EMC tests.

EMI Filter Application:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment

Electrical Schematic:

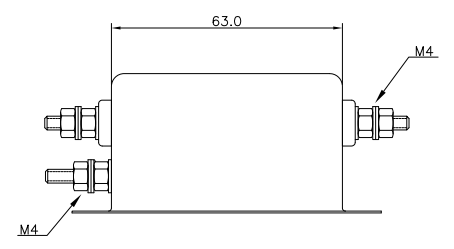

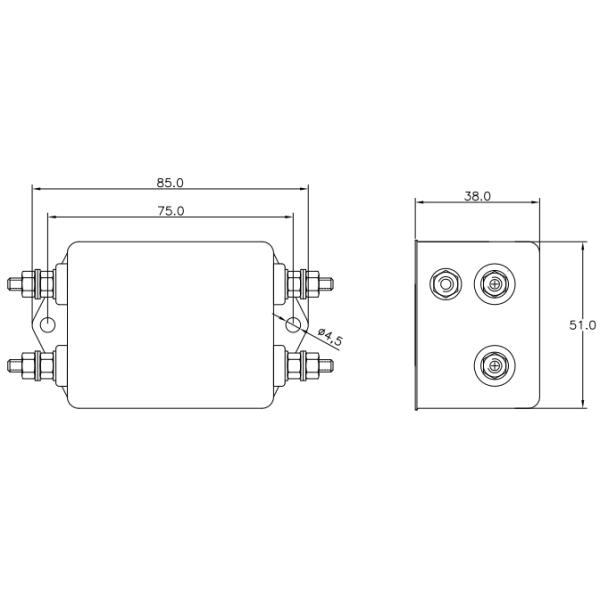

Mechanical Dimension(Unit: mm)

YB21D4-20A-S(R) Filter Picture:

Our Certificates:

Single Phase Filter:

FAQ:
