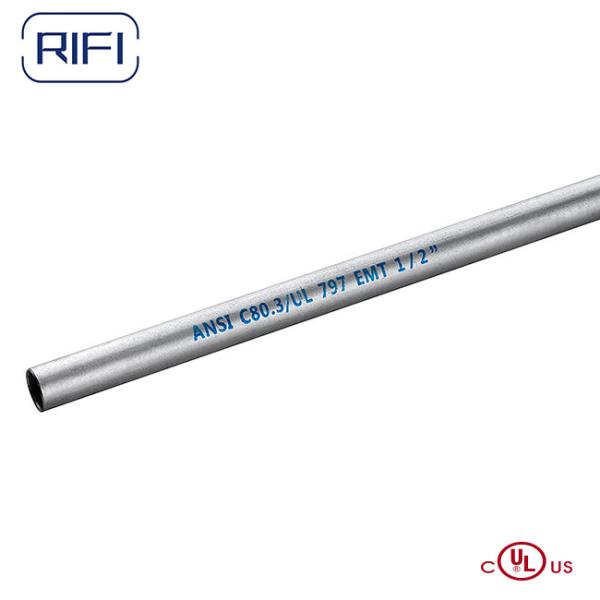

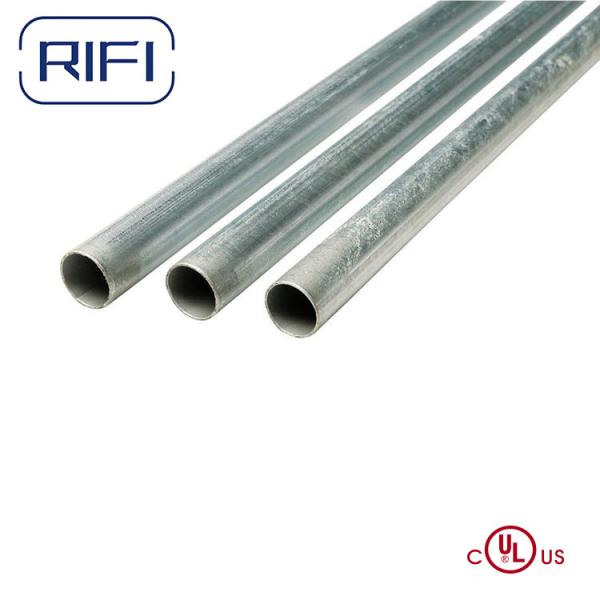

UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit
Specifications
Brand Name :
RIFI
Model Number :
EMT
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
$0.6-$5 / pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
250 Ton/ Month
Delivery Time :
15-30 days
Packaging Details :
plastic voven bag packing
Packing :
Small Bundle and Big Bundle Available
Thickness :
Standard or as Customer Request
Surface Finish :
Pre-Galvanized ; Hot DIP Galvanized
Mateirtal :
Steel
Product Name :
3/4 Inch 1 inch UL Standard Galvanized EMT conduit
Trademark :
RIFI
HS Code :
7306309000
Usage :
Electric Wire
Standard :
UL797. ANSI C80.3
Application :
Protect and Route The Electrical Wring
Length :
Standard 3.05m , Can as Customer Request
Description

3/4" 1" EMT Tubo Metallic EMT Galvanized Electrical Steel Metal Conduit

Product Description
3/4" 1" EMT Tubo Metallic EMT Galvanized Electrical Steel Metal Conduit

1.Material: EMT conduit is typically made from steel, which can be galvanized for corrosion resistance. Some versions of EMT conduit are also available in aluminum.

2. Size: EMT conduit comes in various sizes, typically ranging from 1/2 inch to 4 inches in diameter. The choice of size depends on the specific electrical wiring requirements of the installation.

3. Wall Thickness: EMT conduit has a thinner wall compared to other types of conduit like rigid metal conduit (RMC) or intermediate metal conduit (IMC). The thinner wall makes it more lightweight and easier to bend.

4. Bendability: EMT conduit is known for its flexibility and ease of bending. It can be bent by hand or with specialized tools to navigate corners and obstacles during installation.

5. Use: EMT conduit is suitable for both exposed and concealed electrical installations. It is commonly used in residential, commercial, and industrial settings to protect electrical wiring from physical damage, moisture, and other environmental factors.

6. Fittings: EMT conduit is typically connected using fittings designed specifically for EMT, such as EMT connectors and couplings. These fittings ensure a secure and code-compliant installation.

Specification

3/4" 1" EMT Tubo Metallic EMT Galvanized Electrical Steel Metal Conduit

Different thickness and length are available .

Trade Size Outside Diameter Wall Thickness Length Packing
inch mm inch mm feet mm Bundle
1/2" 0.706 17.93 0.042 1.07 10 3050 20pcs
3/4" 0.922 23.42 0.049 1.25 10 3050 15pcs
1" 1.163 29.54 0.057 1.45 10 3050 10pcs
1-1/4" 1.510 38.35 0.065 1.65 10 3050 5pcs
1-1/2" 1.740 44.20 0.065 1.65 10 3050 5pcs
2" 2.197 55.80 0.065 1.65 10 3050 5pcs
2-1/2" 2.875 73.03 0.072 1.83 10 3050 1pcs
3" 3.500 88.90 0.072 1.83 10 3050 1pcs
3-1/2" 4.000 101.60 0.083 2.11 10 3050 1pcs
4" 4.500 114.30 0.083 2.11 10 3050 1pcs
Tolerances:Length±0.25"(6.35mm),Outside Diameter1/2"through2"±0.005"(0.13mm),2-1/2"through4"±0.016"(0.41mm)
Note:if you need different thickness or length,please contact.

EMT Conduit applications:


3/4" 1" EMT Tubo Metallic EMT Galvanized Electrical Steel Metal Conduit o protect and route cables and conductors.Can be used for both exposed and concealed work,use above ground for lighting circuits, and control lines and other low power applications.

UL Standard 3 / 4 Inch EMT Conduit Pipe Metallic 32mm Galvanised Conduit

FAQ



Q1: What is your payment terms?
A:Normally 30% T/T deposit,balance against B/L copy;
the other is irrevocable L/C 100% at sight.

Q2: How about the delivery time?
A: Accord to your order list and quantity,mostly delivery in 30days.

Q3: How do we control the products' quality?
A: 1. high quality mold
2. raw materials control
3. production process quality control
4. final inspection
5. water testing (no leaking)
