220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
Specifications
Brand Name :
LIANHE
Model Number :
LH-VME 5000
Certification :
CE , ISO , SGS , TUV
Place of Origin :
China
MOQ :
1
Price :
Contact Us
Payment Terms :
T/T, L/C, D/A
Supply Ability :
20 Set/Sets per Month
Delivery Time :
30 working days
Packaging Details :
Normally packaged in wooden case or wrapping film, also can be customized
Capacity :
5000L (can be customized)
Motor Brand :
SIEMENS or ABB Only
Material Contact Parts :
SUS316L , SUS304
Dimension(L*W*H) :
Can be customized
Voltage :
220V/380V (can be customized)
Heating Temperature :
0-120 ℃
Description

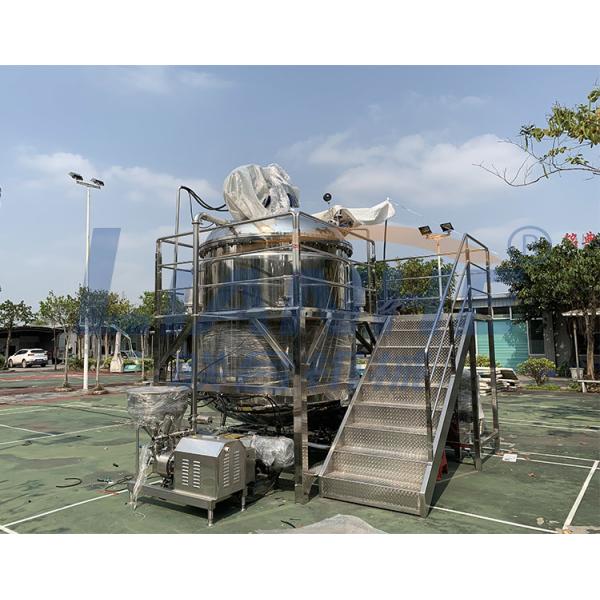

5T Customized Vacuum Emulsifier Mixer Equipped With Emulsification Pump

Product Description:

The vacuum emulsifier homogenizer machine is composed of mixing, homogenizing, dispersing, emulsifying and Plc or button control system and also be used with oil, water phase, vacuum, heating/cooling system, ect. Materials go through the upper tank stirring, PTFE scraper will sweep the wall sticky materials, and then after the blades and rotary blades cut, compressed, The materials is cut in the high shear condition, due to the emulsification tank in a vacuum condition, the bubbles generated in the mixing process is promptly removed.

220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump

Product Parameters:

Capacity (L) Homogenizer Agitator Vacuum pump Heating system
power (kw) speed (rpm) power (kw) speed (rpm) power (kw) Limit vacuum Electric heating (kw) Steam heating (Mpa)
5 0.55 0-3600 0.4 0-65 0.37 -0.1 6 0.2
10 1.1 0-3600 0.55 0-65 0.37 -0.1 6 0.2
20 1.5 0-3600 0.55 0-65 0.37 -0.1 9 0.2
50 3 0-3600 0.75 0-65 0.75 -0.1 12 0.2
100 4 0-3600 1.5 0-65 1.5 -0.1 24 0.2
200 5.5 0-3600 1.5 0-65 2.2 -0.1 28 0.2
300 7.5 0-3600 3 0-65 2.2 -0.1 32 0.2
500 11 0-3600 4 0-65 4 -0.1 50 0.2
1000 15 0-3600 5.5 0-65 4 -0.1 54 0.2
2000 18.5 0-3600 7.5 0-65 5.5 -0.1 recommend steam heating 0.2
5000 22.5 0-3600 15 0-65 7.5 -0.1 0.2
The parameters for reference only, all the machines can be customized accordingly.

Homogenizer Working Principle:
The material is emulsified in the shear crack through the strong shear, impact and turbulence between the high-speed rotating rotor and stator, and quickly crushes into 200 nm-2um. Material granulation, emulsification, mixing, blending and dispersion can be completed in a short time.

Product Application:

The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.

220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
Product Details:
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump

Our Service:

We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.

Rich Experience:
220V/380V Cosmetic Cream Manufacturing Equipment With Emulsification Pump
