Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment
Specifications
Brand Name :
AILUSI
Certification :
CE
Place of Origin :
JIANGSU
MOQ :
1
Price :
11000-17500USD
Payment Terms :
D/A, L/C, T/T
Supply Ability :
10
Delivery Time :
35
Material :
SUS304 & SUS316L (3 Layers)
Structure :
Emulsifying Tank, Platform and Cabinet
Function :
Mixing and Homogenizing
Power :
75 Kw
Voltage :
380V/50Hz
Mixer Type :
Homogenizer
Mixer :
Upper Frame Oar Scrape Mixer
Range of Spindle Speed(r.p.m) :
1 - 75 r.p.m
Homogenizer :
Bottom Homogenizer with Frequency Inverter
Description

Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment

Hydraulic lifting vacuum emulsifying mixer: The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industrie

Technical parameters of China maker body cream lotion machine :

Item:

China maker body cream lotion machine

 Application: Liquid with Suspended Solids, liquid wash, cosmetic beauty cream, shampoo, detergent etc
Function: Mixing and homogenizing
Additional Capabilities: Milling
Mixer Type: Homogenizer
Homogenizer: Bottom homogenizer with frequency inverter
Mixing: Upper frame oar scrape mixer
Max. Loading Capacity: 50-5000L
Dimension(L*W*H): 3100*1750*3400mm
Voltage: 380V/50Hz
Power(W): 75KW
Heating method: Electric heating / steam heating
Control: Siemens PLC brand
Structure: Water tank, oil tank, emulsifying tank, platform and cabinet
Material: SUS304 & SUS316L (3 layers)
Certification: CE
Warranty: One year since the date of installation.

  • Item NO.:AVE

  • Lead Time:35 days

  • Product Orgin:China

  • Shipping Port:Yangzhou/Guangzhou

  • Payment:EXW, FOB, CIF etc

  • MOQ:1

  • goods stock:500

  • Product Detail

Working Principle
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment

Lid Part:

Consisting of material filter, vacuum pressure meter, vacuum discharge valve, vacuum inlet, positive pressure inlet, CIP system (Spray ball), sight glass light, sight window, man-hole, hopper.

All contact material parts adopt GMP standard SUS316L Sanitation grade accessories & valves
Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment

Electric control system

Outer layer material: adopt SUS304 Stainless steel plate, Meter: thermometer, Time digital display met, Current voltmeter Button: Each function switch control button or famous brand Siemens touch screen, Power indicator light, scram etc. The electrical components:include various control relay.

Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment

Water and Oil Pot

Name: Hygiene grade mirror polish & SUS304&316L, Half open lid, easy for operation; Jacket Electric heating; High shearing disperser plate; Disperser on bottom Water pot and oil pot drainer pipe connect to one outlet.

Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment

Stirrer paddle

Frame wall scrapping blender Stirrer paddle: SUS316L, Scraper blade: white PTFE material

Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment

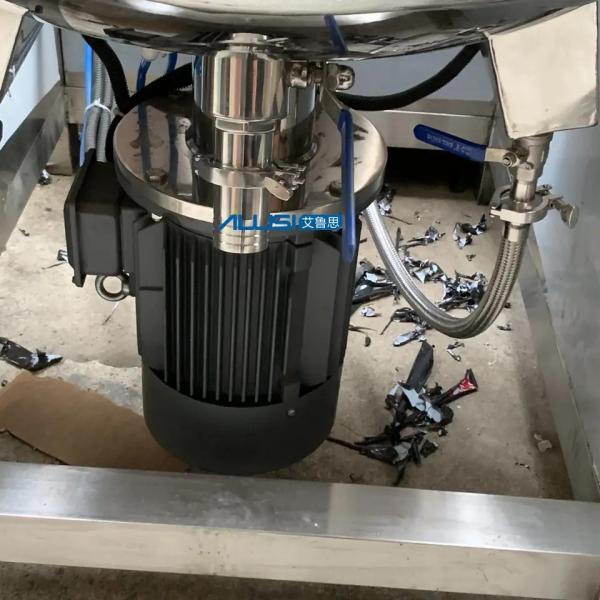

Homogenizer part:

Rotor and stator adopts wire-cutting finish machining high shearing homogenizer, smooth emulsion to 2μm.

Factory:

Double Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production EquipmentDouble Jacket Body Lotion Making Machine Cream Homogenizer Mixer Cosmetic Production Equipment

Our Service

After-sales Service: Online support,Video technical support,Free spare parts

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory specialized in Vacuum emulsifying mixer, filling machine, RO water treatment, capping machine and labeling machine…etc for cosmetic, pharmaceutical, chemical equipment over 20 years.

Q2: How does your factory do regarding quality control?

A2: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.

Q3: What’s the guarantee and the after service if we purchase from you?

A3: All the equipment ordered from us will provide one year guarantee from the delivery date.we could send our engineer to install or fix the machine locally.

Q4: Are your machines difficult to operate? How do you teach us to use the machine?

A4: Our machines are easy to operate, before delivery we will shoot instruction video to introduce machines' functions and to teach you how to use them.

Q5: Can you make the machine according to customers' request?

A5: Yes of course, OEM is acceptable. Most of our machines are customized design based on customer's requirements or situation.
