500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine
Specifications
Brand Name :
AILUSI
Certification :
CE
Place of Origin :
JIANGSU
MOQ :
1set
Price :
12000-22000usd
Payment Terms :
L/C, T/T
Supply Ability :
10
Delivery Time :
35
Packaging Details :
wooden case
Material :
SUS 304/316L
Voltage :
220V/380V 50Hz
Barrel Volume (L) :
500 L
Weight :
1000 Kg
Function :
Mixer/Heating/Cooling
Range of Spindle Speed(r.p.m) :
1 - 65 r.p.m
Capacity :
500L
Siemens motor :
Delta frequency inverter
Bottom homoegnizer power :
22KW
Homogenizer Speed :
0-3200 rpm
Description

500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine

Vacuum Cosmetic Beauty Cream Mixer Emulsifier

Application:

Pharmaceutica, cosmetic beauty cream, body lotion etc

Function:

Mixing and homogenizing

Additional Capabilities:

Milling

Mixer Type:

Homogenizer

Homogenizer:

Bottom homogenizer with frequency inverter

Mixing:

Upper frame oar scrape mixer

Max. Loading Capacity:

50-5000L

Dimension(L*W*H):

3100*1750*3400mm

Voltage:

380V/50Hz

Power(W):

75KW

Heating method:

Electric heating / steam heating

Control:

Siemens PLC brand

Structure:

Water tank, oil tank, emulsifying tank, platform and cabinet

Material:

SUS304 & SUS316L (3 layers)

Certification:

CE

Warranty:

One year since the date of installation.

  • Item NO.:ALW-1000L

  • Lead Time:30-40 Days

  • Product Orgin:China

  • Shipping Port:Guangzhou/Jiangsu Port

  • Payment:EXW, C&F, CIF and etc.

  • MOQ:1

  • Weight:600 Kg

Main Features

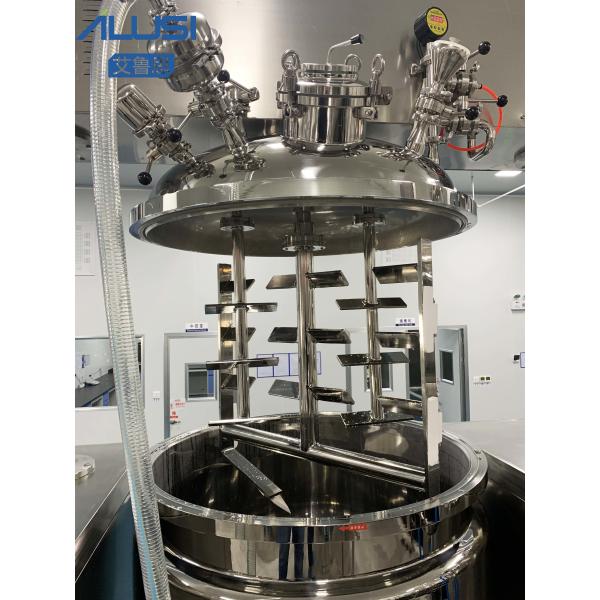

1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min

500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine

Factory

500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine500L Hydraulic Lifting Vacuum Emulsifying Mixer Homogenizing Pharmaceutical Machine

Our Service

After-sales Service: Online support,Video technical support,Free spare parts

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory specialized in Vacuum emulsifying mixer, filling machine, RO water treatment, capping machine and labeling machine…etc for cosmetic, pharmaceutical, chemical equipment over 20 years.

Q2: How does your factory do regarding quality control?

A2: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.

Q3: What’s the guarantee and the after service if we purchase from you?

A3: All the equipment ordered from us will provide one year guarantee from the delivery date.we could send our engineer to install or fix the machine locally.

Q4: Are your machines difficult to operate? How do you teach us to use the machine?

A4: Our machines are easy to operate, before delivery we will shoot instruction video to introduce machines' functions and to teach you how to use them.

Q5: Can you make the machine according to customers' request?

A5: Yes of course, OEM is acceptable. Most of our machines are customized design based on customer's requirements or situation.
