The 1000L Homogenizer Emulsifier Mixer with a rotor-stator high-pressure mixer is a powerful and efficient industrial mixing equipment used for emulsifying and homogenizing various substances. Here are some key features and descriptions of this equipment:

Capacity: The mixer has a large capacity of 1000 liters, making it suitable for handling large batches of materials.

Homogenizing and Emulsifying: The mixer utilizes a rotor-stator configuration to create high shear forces, allowing it to effectively homogenize and emulsify different substances. It is capable of breaking down particles and blending ingredients to achieve a uniform and stable mixture.

High Pressure Mixing: The rotor-stator design, combined with the high-pressure capabilities of the mixer, enables the processing of materials under intense shear forces. This helps in achieving finer particle size reduction and thorough blending of components.

• Item NO.:ALW-1000L

• Lead Time:30-40 Days

• Product Orgin:China

• Shipping Port:Guangzhou/Jiangsu Port

• Payment:EXW, C&F, CIF and etc.

• MOQ:1

• Weight:800kg

Main Features:
Liquid Soap Making Machine has high speed disperser. mixing and disperse viscously, solid and liquid etc. various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period.
Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed.
To produce liquid washing products, like shampoo, liquid soap, bath shower, dish washing, hand washing, lubricating oil, etc.
Finished products can be discharged by valve or match a screw pump.

Advantages

1. Efficient Homogenization and Emulsification: The rotor-stator configuration and high-pressure capabilities of the mixer enable efficient homogenization and emulsification of substances. It can break down particles, disperse ingredients, and create a uniform mixture, resulting in improved product quality and consistency.

2. Fine Particle Size Reduction: The high shear forces generated by the rotor-stator design allow for effective particle size reduction. This is particularly beneficial for materials that require a smaller particle size distribution, leading to enhanced product stability and performance.

3. Uniform Mixing: The mixer ensures thorough and uniform mixing of ingredients, eliminating the risk of product inconsistencies. It achieves a high degree of dispersion and blending, resulting in a homogeneous mixture with even distribution of components.

4. Increased Productivity: With its large capacity of 1000 liters, the mixer can handle sizable batches, allowing for increased productivity and reduced processing time. It is suitable for large-scale production, minimizing the need for multiple smaller batches.

5. Versatility Across Industries: The 1000L Homogenizer Emulsifier Mixer finds applications in various industries, including pharmaceuticals, cosmetics, food and beverages, chemicals, and more. It can process a wide range of materials, such as creams, lotions, emulsions, suspensions, and other products, making it a versatile solution for different manufacturing processes.

6. Customizable Parameters: The mixer offers adjustable parameters such as rotor-stator speed, mixing time, and pressure settings, providing flexibility and control over the mixing process. This allows operators to optimize the mixing conditions based on the specific requirements of the materials being processed.

7. Durability and Reliability: The equipment is constructed with durable materials to withstand high-pressure operation and prolonged use in demanding industrial environments. It is designed for reliable performance, ensuring long-term productivity and minimizing downtime.

Product Details:



1. Main Tank:
* Capacity: Fully Volume: 1200L, Working Volume: 1000L
* Inner tank: SUS316L, Thickness: 6mm (Single Layer Tank)
Jacket: SUS304, Thickness: 6mm
Shell: SUS304, Thickness: 4mm
2. Lid Parts: Half open hinged lid
* GMP hygiene standards, made for SUS304(Can do cusotmized), Can open the lid at any time during the making products process, easy to cleaning
3. Water circulation: Mechanial seal cooling system. Protect the Homogenizer to use longer
4. Agitator Motor:
* SIEMENS motor and reducer (can change to ABB motor)
* Power: 7.5KW
* Speed: 0-75rpm
5. Agitator:
* Mixing part: Frame oar scraping blender with one fixed oar.
* Stirrer paddle: Stir up and down, mixing more evenly.
* Wall Scraper: PTFE material, Scraping off the materials that stick on pot wall, to make all materials mixing more evenly.
6. Bottom Homgenizer (can choose upper homogenizer):
* SIEMENS motor
* Power: 7.5KW
* Speed: 0-3600rpm
* Homogenizer part: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer, smooth emulsion to 2m.

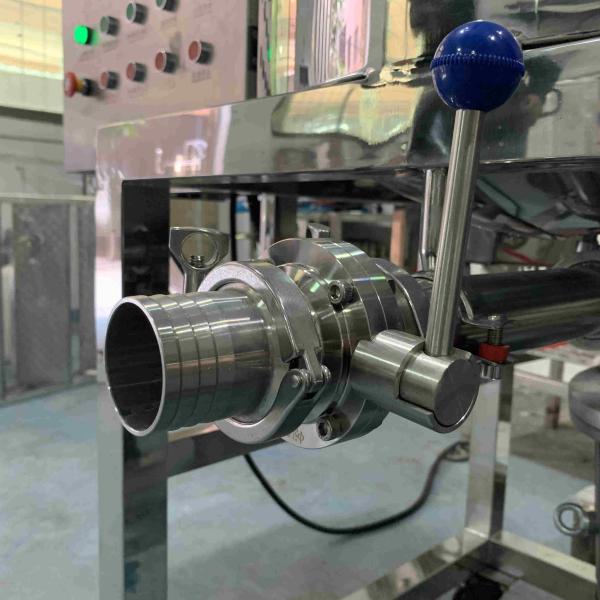

7. Discharge part: Bottom discharge, dished bottom design and bottom flat valve to make discharge completely.
8. Electric control system & Platform
* Shell material: SUS304, thickness: 2mm
* Standard Configuration: Instrument, button, appliance components
* All SUS and equipped with anti-skid plate
