A pneumatic plastic bottle capping machine is a piece of equipment designed for sealing plastic bottle caps onto bottles. It uses a pneumatic system to apply pressure to the cap and tighten it securely onto the bottle.

The machine typically consists of a conveyor system that moves bottles to the capping station, where the capping heads are located. The capping heads use air pressure to apply a torque force to the cap, tightening it onto the bottle. The capping heads can be adjusted to accommodate different sizes and types of caps.

One advantage of using a pneumatic plastic bottle capping machine is that it can work at a high speed, capping hundreds or even thousands of bottles per hour. It is also highly accurate, ensuring that each cap is applied with the same amount of force and torque, resulting in a consistent seal.

Furthermore, pneumatic plastic bottle capping machines are generally easy to use and require minimal maintenance, making them a cost-effective solution for bottle capping in manufacturing and packaging industries.

• Item NO.:APM

• Lead Time:15-25 Days

• Product Orgin:China

• Shipping Port:Guangzhou Port

• Payment:EXW, C&F, CIF and etc.

• price range:2-10/5500$

• MOQ:1

Screw caps using the fully automatic screw capping machine are easy to open, and have a high sealing performance. The screw capping machine is suitable for a variety of working environments, and is an ideal piece of equipment used for cosmetic production line, chemical production line, food production line, lipstick production line, etc.

Main Features:

Wide range of application, electrical control movement, positioning device, easy operation, all kinds of bottle caps can be used, with the bottle cap guide mechanism, can ensure the consistency of the direction of the pump head.

Convenient adjustment, quick conversion bottle.

Easy to operate, better screw capping effect.

The operator can tighten the cap without damaging the cap by adjusting the torque, rotational speed and time of the cap

according to the material, style and tightness requirements of the bottle cap.

Beautiful and decent appearance, which adopts special polishing technology so that it is shining like a mirror, displaying

luxurious character.

This machine universal, suitable for bottles, bottle caps of a wide range of manufacturers to use.

The parts that contact the materials are all made of imported stainless steel. The interior surfaced of the vessel is subjected

to mirror polishing 300 EMSH, which is in accordance with sanitary requirements.

Components:

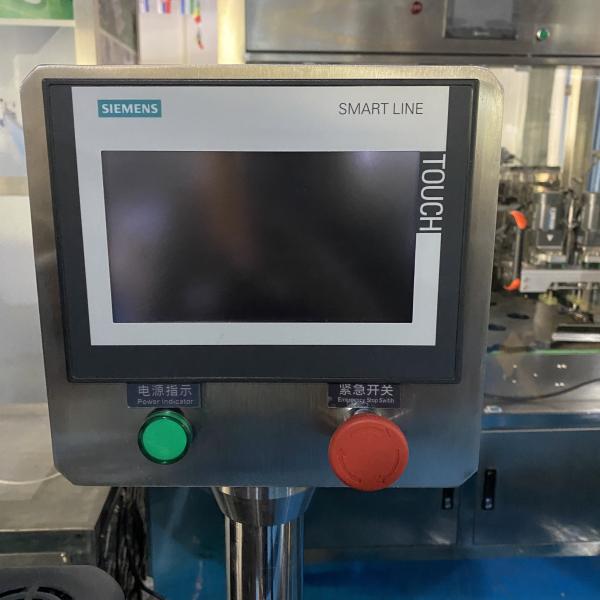

PLC control system

Four sealing wheels

Cap sorting part and cap loading part machine frame

No need to change accessories, suitable for round caps of various sizes

2 meter straight conveyor line(can do customized)

Can be used with filling machine and flat bottle labeling machine

Conveyor, capping speed and capping time can be easily debugged

This machine is made of stainless steel and is GMP-compliant and durable

Can be made into a single-head capping or double head capping according to user needs
