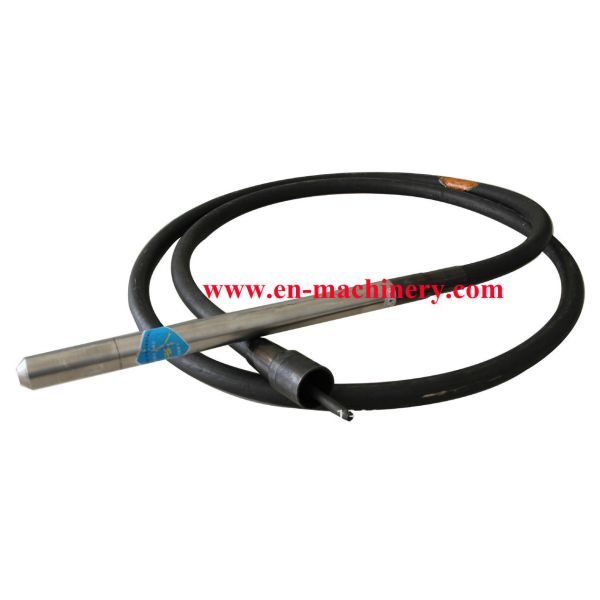

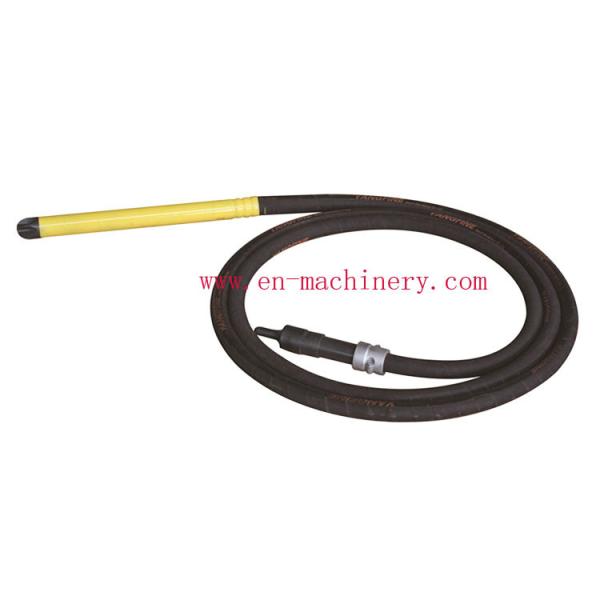

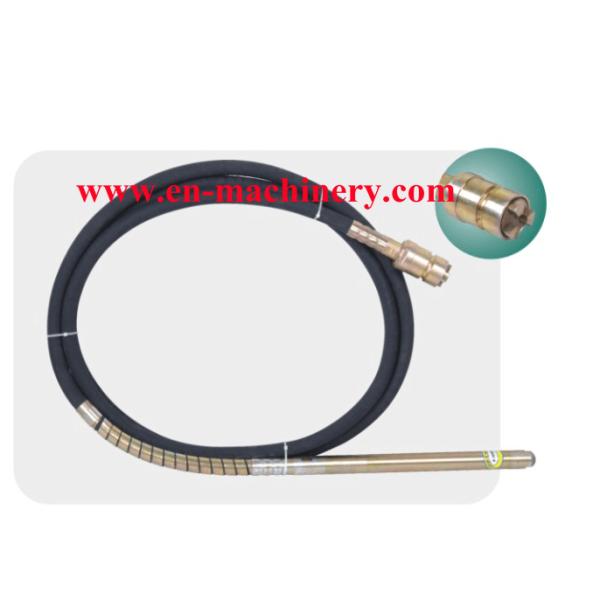

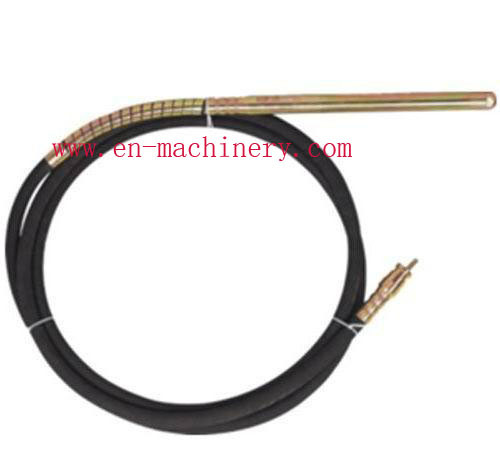

Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Specifications
Brand Name :
YONGTUO
Model Number :
ZN series
Certification :
CE,SGS
Place of Origin :
Ningbo,China
MOQ :
10 pcs
Price :
$5.00/pc
Payment Terms :
TT or LC, Western Union, MoneyGram, D/A, D/P
Supply Ability :
20000 pcs per month
Delivery Time :
about 15 days
Packaging Details :
carton or up to the customers
type :
Japanese type,Indian type,Dynapac type,Austrilia type
Vibrator head :
25mm,28mm,32mm,35mm,40mm,50mm,60mm,70mm
Length :
1m-12m
Standard length :
6m
Flexible shaft dia :
8mm,10mm,13mm
Rubber hose dia :
30mm,36mm
Description

Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Discount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator ShaftDiscount Electric Plug-In Internal Concrete Vibrator Motor,Plug Type Pine Type Concrete Vibrator,Concrete Vibrator Shaft
Description: flexible shaft ,concrete vibrator shaft

Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant
Technical Parameters

It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.


Model
Outer.dia
Inner.dia
Rubber tensile
Adhensive of inner rubber
 Steel belt material
Steel belt hardness
Rubber hardness
Steel wire braid
Min.bending radius(mm)

JYG16
16mm
9mm
 >1000 N/
 50-60
N/
 40Mn-65Mn
 20HRC-30HRC
 50-62
1
75
JYG20
20mm
10mm
1
80

JYG22
22mm
10mm
2
80
JYG24
24mm
13mm
 60-65
 20Mn-65Mn
 75-80
 according to the
demand
100

JYG30
30mm
16mm
120
JYG32
32mm
18mm
150
JYG36
36mm
20mm
200
JYG42
42mm
25mm
250

Diameter (mm)

Tolerance (mm)

Number of Layers

Loading Moment
(N · m)
(Sample 500mm Long)

Weight
(kg/ 100m)

2.0

+0.02
-0.02

3/5

0.8

1.8

2.5

3/5

1.0

2.8

3.2

3/5

1.3

4.6

3.8

3/5

1.5

6.5

5.0

+0.00
-0.05

3/4/5

1.8

11.3

6.0

3/4/5

2.4

16.2

6.5

4/5/7

2.9

18.7

8.0

4/5/6/7

7.5

28.8

10

4/5/6/7

22.5

45.5

12

4/5/6/7

39.0

66.5

13

4/5/6/7

50.5

77.5

16

4/5/6/7

115.0

114

18

4/5/6/7

160

145

The flexible shafts not listed in the chart can be customized


Welcome to visit factory warmly. can send samples for testing in advance.
can supply OEM service with your own logo.
Supply high quality & the most competitive price for you.


You may interested in other products: concrete vibrator,mini concrete mixer
